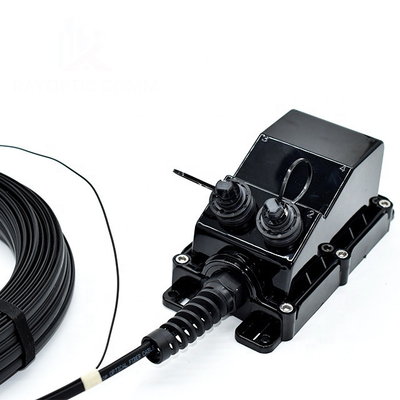

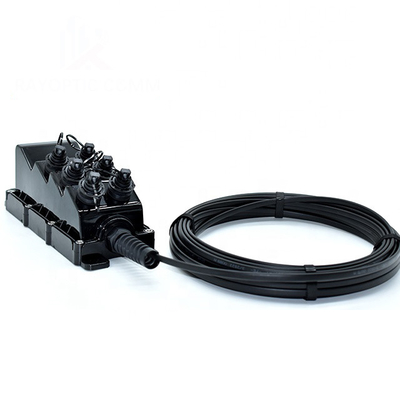

2 / 4 / 6 / 8 Ports MST Box Multiport Service Terminal 5G FTTA Clorure Fiber Optic Hub

Description:

- The MST Clorure Hub Box is a new economic fiber distributed solution for outdoor use. compare traditional products.

-The MST Clorure Hub Boxis easy to operate and has high compatibility.

- It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.

- The MST Clorure Hub Boxis not only used in FTTH field, but also used in FTTA or other harsh environment.

- It come with 2/4/6/8pcs Waterproof connector ports. Can install 1*2 or 1*4 1*6 or 1*8 Splitter

- Multiport Service Terminal (MST) Box Fast Connect Closure used for access points of the FTTx-ODN network.

- It is a product with all inlet and outlet cables pre-connected, eliminating the need of closure opening and fiber splicing.

- All ports are equipped with hardened adapters.

- The operators do not need to splice fibers or open boxes during ODN deployment, which improves service provisioning efficiency.

- The MST Closure Hub Box is a new economic fiber distributed solution for outdoor use.

- Compare traditional products, MST box is easy to operate and has high compatibility. Reduces the total cost of operation (TCO) by 15–30%.
It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.

- MST closure hub box not only used in FTTH field, but also used in FTTA or other harsh environment.

Application:

- FTTA,

- FTTB,

- FTTH,

- FTTO,

- WAN,

- LAN,

- Telecom Tower,

- CATV system,

- Passive fiber optic system, ...

Features:
- High compatibility: can be assembled H connector (OptiTap compatible), Huawei Mini SC, ODC, PTLC, PTMPO or power adapter.
- Factory-sealed or field assembly.
- Strong enough: working under 1200N pulling force long term.
- From 2 to 8 ports for single or multifiber harsh connectors, can match end user request.
- Wall-mounting, aerial installation or holding pole installation.
- Decreased angle surface and height make sure no connector interfering when operating.
- Meet IEC 61753-1 standard.
- Cost effective: save 40% operating time.
- Available with PLC or splice sleeve for fiber divide
- The body is made of high quality engineering plastic with good strength;

- With good water-proof performance, suitable for indoor and outdoor natural environments;

- Waterproof grade can match IP67 for outdoor using.
- With water-proof adapter, the box can be operated more conveniently;

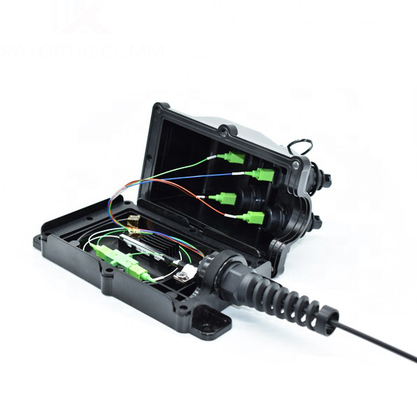

- The drop leaf can be installed 2 pcs of 1*4 & 1pc of 1*8  or 1pc of 1*9 tube splitter or also can install 1pcs 1*2 splitter and 1pc 1*8 Splitter.
- It designed for connected with two different waterproof adapters, OptiTap or MINI SC/APC Adapters

Technical data:

- Environmental requirement

Working temperature: -40℃~+85℃

Relative humidity: ≤85% (+30℃)

Atmospheric pressure: 70KPa~106Kpa

- Main technical datasheet Insertion loss: ≤0.15dB

UPC return loss: ≥50dB

APC return loss: ≥60dB

- Thunder-proof technical datasheet

The insulation resistance between the grounding device and the metal parts of the box is no less than 2´104MΩ/500V (DC); IR≥2, 104MΩ/500V.

The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V

- Photoelectric performance
Connector attenuation (insertion, interchange, repetition) ≤0.3dB.
Return loss: APC ≥60dB, UPC ≥50dB, PC ≥40dB,
- Main mechanical properties parameters
Connector insertion and removal durability life > 1000 times
