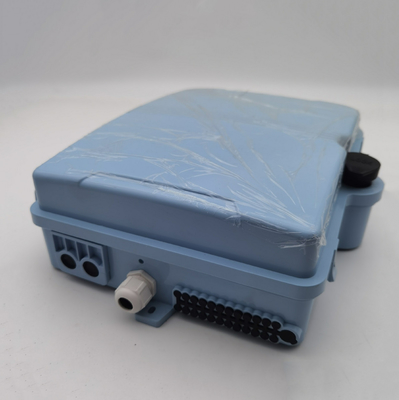

1*16 Splitter 24 Ports Fiber Optic Terminal Box Access Terminal NAP CTO FAT Box

Descriptions:
- Optical distribution terminal box can be used in the connection and dispatch of outdoor optical fiber communication links, available for the connection of optical cable, optical fiber and patch cord, with the advantages of artistic appearance, convenient operation and long service life.
- The wall mountable fiber optic terminal box design to use to building or pillar wall mounting.
- It can use for indoor or outdoor application. It can match IP65 waterproof standard.
- As the product variety and customer requirements we also supply 3 in 1 terminal box to sastify more fibers capacity inquirement. It is not only can connect the cable and patch jumper, also can install the fiber splitter or other product as your need. With 4 different grids, you can use it install any product as you need.
- KCO-FDB-24G-SX is fiber optic access termination box, use for outdoor.
- KCO-FDB-24G-SX fiber access termination box is able to hold up to 24 subscribers.
- It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.

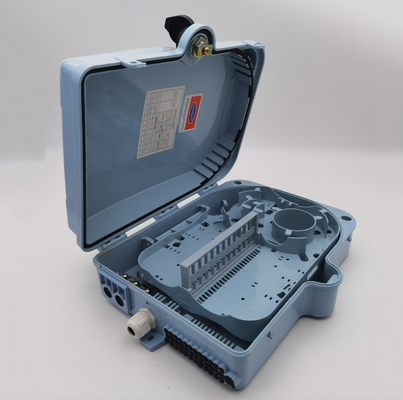

- It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
- Using high-strength engineering plastics, anti-aging and anti-oxidation, increase service life.

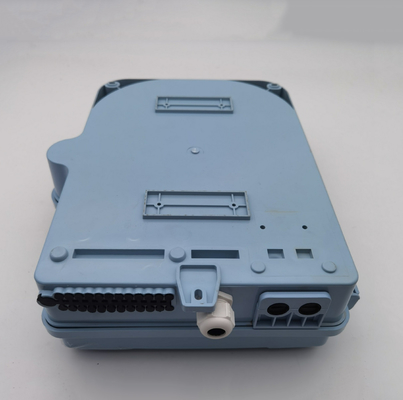

- It is easy to install on the pole or wall.
- It is especially for connection and protection for fiber cable for FTTH.
- This fiber optic terminal box applies to the communication room and various network room wall installation or desktop installation.
- FTTH insert optical fiber terminal splitter box, arc, horizontal type.

Feature:
- Light weight, small size, save cost.
- Up to 24 FTTH drops cable ports.
- Suitable for outdoor wall and pole mount using.
- User familiar industry interface, using high impact plastic.
- Can accommodate 1ⅹ16 mini type or LGX type optical fiber splitter.
- 24 pcs of adapter port is fit with SC simplex adapter or LC duplex adapter.
- 3 inlet capacity for outdoor cable and 24 outlet ports for ftth drop cable.
- Match cable termination and sealing requirements.

Application:

- PON networks;
- Widely used in FTTX systems such as: FTTA, FTTB, FTTH, FTTO, ...
- Telecom project
- Fiber optic termination, indoor and outdoor application;
- CATV networks
- Data communications networks
- Telecommunication networks;
- FTTD (Fiber To The Desk) interfaces.

Specification:

Operating Conditions:
- Temperature range: -45°C~+85°C
- Relative humidity: ≤85%(+30°C)
- Atmospheric pressure: 70KPa~106KPa

Qualification:
- Connectors loss: ≤0.2dB
- Insert loss: ≤0.2dB
- Return loss:
≥50dB(UPC),
≥60dB(APC)
- Nominal work wave-length: 850nm,1310nm,1550nm
- Insulation resistance (between frame and protection grounding) >1000MΩ/500V(DC)
