32 Ports 48 Cores IP65 FTTH Optical Terminal Box Distribution FDB FAT Box

Descriptions:
- FTTH outdoor fiber optical distribution box is used in wiring connection between optical cable and optical communication equipment, through adapter in distribution box, optical fiber jumper leads optical signal, realize optical wiring function, and can meet the optical splitter placed to achieve spectral function.
- Fiber optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
- The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
- KCO-FDB-0348-MK is designed for outdoor using with 3 port for round cable and 48 ports for FTTH drop cable.
- Its waterproof grade can match IP65.

Feature:
- Total enclosed structure, be in nice shape.

- Material: ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.

- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

- Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter or PLC splitter installation, easy maintenance.

- Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

- Ready for splitters: designed space for adding splitters.

- Space saving: Double-layer design for easier installation and maintenances:

- Lower layer for splitters and over length fiber storage.

- Upper layer for splicing, cross-connecting and fiber distribution.

- Cable fixing units provided for fixing the outdoor optical cable.

- Protection Level: IP65

- Accommodates both cable glands as well as tie-wraps

- Lock provided for extra security

Application:

- PON networks;
- Widely used in FTTX systems such as: FTTA, FTTB, FTTH, FTTO, ...
- Telecom project
- Fiber optic termination, indoor and outdoor application;
- CATV networks
- Data communications networks
- Telecommunication networks;

- LAN

- WAN

- Metro

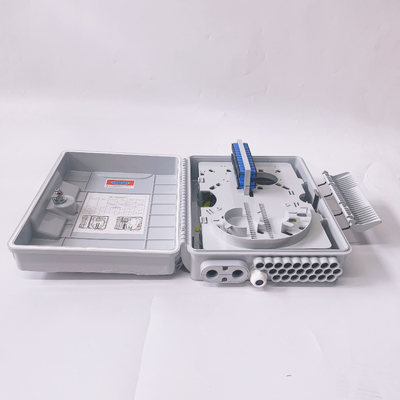

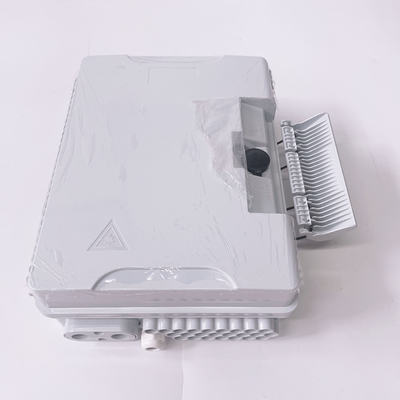

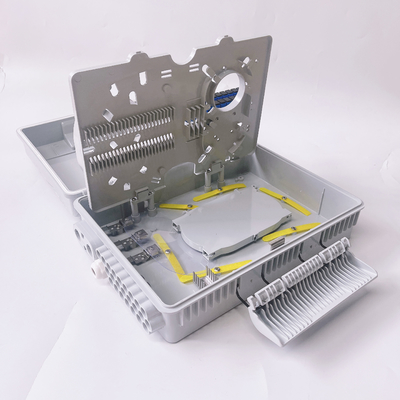

Products photos:

Operating Conditions:
- Temperature range: -45°C~+85°C
- Relative humidity: ≤85%(+30°C)
- Atmospheric pressure: 70KPa~106KPa

Qualification:
- Connectors loss: ≤0.2dB
- Insert loss: ≤0.2dB
- Return loss:
≥50dB(UPC),
≥60dB(APC)
- Nominal work wave-length: 850nm,1310nm,1550nm
- Insulation resistance (between frame and protection grounding) >1000MΩ/500V(DC)
