4U Drawer Type 96 Ports Rack Mount Fiber Optic Termination Box with 485*300*4U Dimensions

  • 4U Drawer Type 96 Ports Rack Mount Fiber Optic Termination Box with 485*300*4U Dimensions
  • 4U Drawer Type 96 Ports Rack Mount Fiber Optic Termination Box with 485*300*4U Dimensions
  • 4U Drawer Type 96 Ports Rack Mount Fiber Optic Termination Box with 485*300*4U Dimensions
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number KCO-DR-4U-96-SCS
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, export standard pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 10,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 SC Simplex Connector 2 LC Duplex
Size 485*300*4U Capacity 96 Cores SC Or 192 Cores LC
Color Black High 4U / 180mm
Type Drawer Type Standard 19 Inch
Logo Print Customized OEM ODM Service Yes
Highlight

4U Rack Mount Patch Panel

,

96 Ports Rack Mount Patch Panel

,

FTTH Fiber Optic Termination Box
Leave a Message
Product Description
4U Drawer Type 96 Ports Rack Mount Patch Panel FTTH Fiber Optic Termination Box
Fiber optic patch panels, also known as fiber optic distribution panels, are designed to connect and protect fiber optic cables, pigtails, and patch cables using fiber optic trays. These panels facilitate easy termination of fiber optic cables and provide access to individual fibers for cross-connection.
Key Features:
  • Metal enclosure housing adapter panels and fiber splice trays
  • Splice trays allow fibers to be fused with pigtails connected to fixed internal ports
  • Fixed internal ports maintain permanent connections
  • External ports accommodate frequently changed patch cable connections
  • Dual-compartment design: one for bulkhead receptacles/adapters, one for splice tray and fiber storage
  • Standard 19-inch rack mount with height options from 1U to 6U (this model: 4U)
  • Supports various adapter types including SC, LC, FC, ST, MPO, E2000, DIN, and MU
Benefits of Fiber Patch Panels:
  • Centralized connection management - all changes made at one location
  • Convenient access - all input ports grouped together for easy identification
  • Equipment protection - reduces wear on expensive networking gear ports

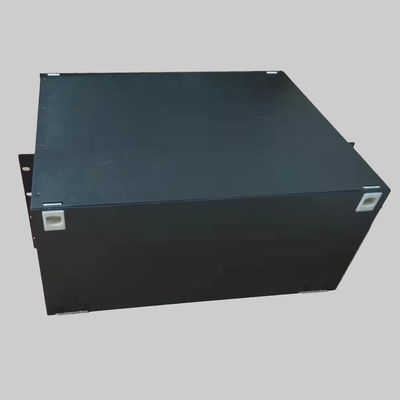

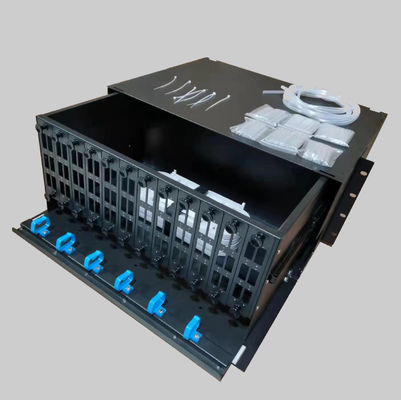

4U Drawer Type 96 Ports Rack Mount Fiber Optic Termination Box with 485*300*4U Dimensions 0 4U Drawer Type 96 Ports Rack Mount Fiber Optic Termination Box with 485*300*4U Dimensions 1
Technical Specifications:
Specification Detail
Fiber Capacity Max 96fo (SC simplex adapter)
Connector Ports 96 ports
Type Drawer type
Dimensions 485*300*4U
Material Cold Rolled Steel or Aluminum
Storage Temperature -45~+65℃
Thickness Options 0.6, 0.8, 1.0, 1.2, 1.5mm
Included Accessories Cable ties, mounting ear screws, spiral wrap tube
Fiber Types Supported SM: G652D, G657A1, G657A2
MM: OM1, OM2, OM3, OM4, OM5
Weight 7.50kg
Part Number KCO-DR-4U-96-SCS
Product Catalog:
  • Fiber Optic Cable: outdoor, indoor, FTTH drop, tactical
  • Fiber Optic Patch Cord: indoor, FTTH drop, field, outdoor
  • Fiber Optic Splitter: PLC, FTB Coupler, multimode
  • Fiber Optic Fast Connector: SC, FC, LC, ST
  • Fiber Optic Splice Closure: Inline, Dome, Aerial, Wall mount
  • Fiber Optic Terminal Box: Cross Cabinet, Indoor/Outdoor, FDB, FAT, CTO
  • Fiber Distribution Box: Patch Panel, Distribution Unit, Distribution Frame
  • MPO/MTP Solutions: Patch Cords (8-32fo), Adapters, Attenuators, Loopbacks
4U Drawer Type 96 Ports Rack Mount Fiber Optic Termination Box with 485*300*4U Dimensions 2
Additional Services:
OEM/ODM Service: We can customize products with your brand logo on cables, packaging, labels, or other locations. Contact our sales team for details.
Packing: Standard export packing options include carton boxes, wooden boxes, and wooden pallets.
Shipping: Available via international express (UPS, TNT, DHL), air freight (CA, AA, EA), or sea freight (Huyndai, COSCO). Standard export ports include Shenzhen, Hongkong, Ningbo (sea) and Shenzhen, Hongkong, Hangzhou, Shanghai (air).
