19 Inch Standard Rack Mountable Fiber Optic Patch Panel with Drawer Type and Max 192fo LC Quad Adapter

  • 19 Inch Standard Rack Mountable Fiber Optic Patch Panel with Drawer Type and Max 192fo LC Quad Adapter
  • 19 Inch Standard Rack Mountable Fiber Optic Patch Panel with Drawer Type and Max 192fo LC Quad Adapter
  • 19 Inch Standard Rack Mountable Fiber Optic Patch Panel with Drawer Type and Max 192fo LC Quad Adapter
  • 19 Inch Standard Rack Mountable Fiber Optic Patch Panel with Drawer Type and Max 192fo LC Quad Adapter
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number KCO-DR-2U-96-SCD
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, export standard pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 10,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 SC Simplex Connector 2 LC Duplex
Size 485*300*2U Capacity 48 Cores SC Or 96 Cores LC
Color Black High 2U / 90mm
Type Drawer Type Standard 19 Inch
Logo Print Customized OEM ODM Service Yes
Highlight

SC Fiber Optic Cable Patch Panel

,

2U Fiber Optic Cable Patch Panel
Leave a Message
Product Description
Rack Mountable Fiber Optic Cable Patch Panel 2U 48 Ports SC LC FC ST E2000 Adapter
This 2U 48 Ports fiber optic patch panel provides efficient cable management for rack or cabinet installations. The metal enclosure features pre-configured adapters (SC, LC, FC, ST, E2000) and accommodates both single and multi-mode fiber connections.
Key Features
  • Standard 19" rack mount design compatible with distribution frames
  • Available in 1U to 4U heights (2U model shown: 90mm height, 48 ports max)
  • Multiple adapter options: SC, FC, LC, ST, E2000, DIN, MPO, MTP, MU
  • Durable construction: 0.6mm to 1.5mm thick cold rolled steel or aluminum
  • Two compartments: bulkhead adapters and splice tray/storage area
  • Supports fiber types: SM (G652D, G657A1, G657A2) and MM (OM1-OM5)
  • Includes accessories: cable ties, mounting ear screws, spiral wrap tube
Technical Specifications
Fiber Capacity Max 192fo (LC Quad adapter)
Connector Ports 48 ports
Type Drawer type
Dimensions 485*300*2U
Material Cold Rolled Steel or Aluminum
Storage Temperature -45~+65℃
Weight 6.50kg
Part Number KCO-DR-2U-96-SCD
Product Images

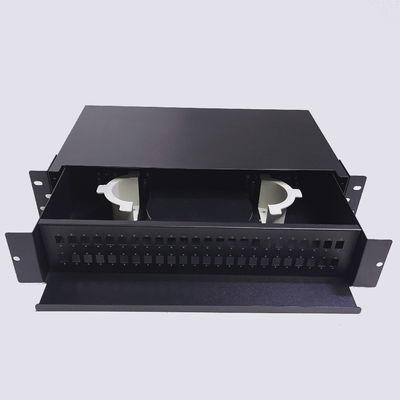

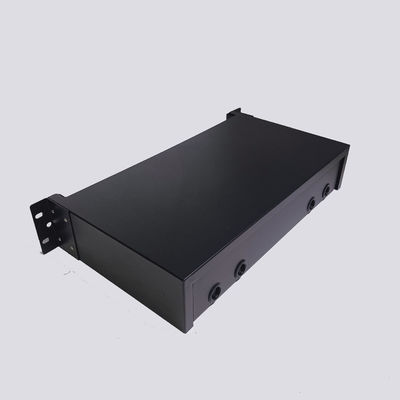

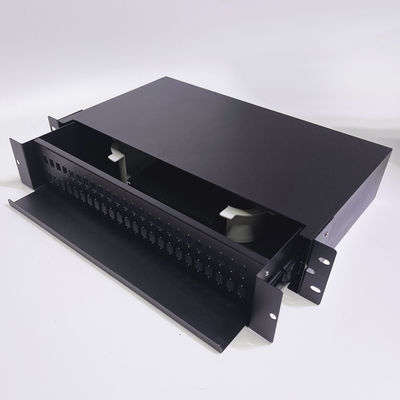

19 Inch Standard Rack Mountable Fiber Optic Patch Panel with Drawer Type and Max 192fo LC Quad Adapter 0 19 Inch Standard Rack Mountable Fiber Optic Patch Panel with Drawer Type and Max 192fo LC Quad Adapter 1 19 Inch Standard Rack Mountable Fiber Optic Patch Panel with Drawer Type and Max 192fo LC Quad Adapter 2
Available Panel Types
  • Fixed Type Fiber Optic Cable Patch Panel
  • Drawer Type Fiber Optic Cable Patch Panel
  • Rotate Type Fiber Optic Cable Patch Panel
  • Distribution Unit Fiber Optic Cable Patch Panel
  • DinRail Fiber Optic Cable Patch Panel
  • Wall mount Fiber Optic Cable Patch Panel
Product Catalog
  • Fiber Optic Cable: outdoor, indoor, FTTH drop, tactical
  • Fiber Optic Patch Cord: indoor, FTTH drop, field, outdoor
  • Fiber Optic Splitter: PLC, FTB Coupler, multimode
  • Fiber Optic Fast Connector: SC, FC, LC, ST
  • Fiber Optic Splice Closure: Inline, Dome, Aerial, Wall mount
  • Fiber Optic Terminal Box: Cross Cabinet, Indoor/Outdoor boxes
  • Fiber Distribution Boxes: Patch Panels, Distribution Units
  • MPO/MTP Solutions: Patch Cords, Adapters, Attenuators
Related Product
19 Inch Standard Rack Mountable Fiber Optic Patch Panel with Drawer Type and Max 192fo LC Quad Adapter 3
OEM/ODM Services
Custom branding available on products, packaging, and labels. Contact our sales team for OEM/ODM support.
Shipping & Packaging
  • Standard export packing: carton box, wooden box, or pallet
  • Shipping options: International express (DHL, UPS), air freight, sea freight
  • Primary export ports: Shenzhen, Hongkong, Ningbo
  • Primary airports: Shenzhen, Hongkong, Hangzhou, Shanghai
