Rack Mountable Fiber Optic Cable Patch Panel 2U 48 Ports SC LC FC ST E2000 Adapter
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO |
| Certification | RoHS, ISO9001 |
| Model Number | KCO-DR-2U-96-SCD |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Carton box, export standard pallet |
| Delivery Time | 2~7 days after get payment |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 10,000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector 1 | SC Simplex | Connector 2 | LC Duplex |
|---|---|---|---|
| Size | 485*300*2U | Capacity | 48 Cores SC Or 96 Cores LC |
| Color | Black | High | 2U / 90mm |
| Type | Drawer Type | Standard | 19 Inch |
| Logo Print | Customized | OEM ODM Service | Yes |
| High Light | SC Fiber Optic Cable Patch Panel,2U Fiber Optic Cable Patch Panel |
||
Product Description
2U 48 Ports SC LC FC ST E2000 Adapter Rack Mountable Fiber Optic Cable Patch Panel
Description:
- A fiber optic cable patch panel is a metal frame with pre- punched holes equally spaced horizontally along the front face.
- Loaded fiber optic cable patch panels are supplied with pre-configured adaptors, provides efficient and easy management of fibre optic cables in the rack or cabinet.
- A fiber optic cable patch panel is commonly described as the interface panel that connects multiple optical fiber cables and optical equipment.
- They make it easy to terminate fiber optic cables and provide access to the cable’s individual fibers for cross connection.
- A fiber optic cable patch panel is typically a metal enclosure that encloses the adapter panels and fiber splice trays. Splice trays allow fibers to be fused together with fiber optic pigtails which in turn are plugged into the fixed inside ports of the fiber optic adapter panels plate.
- Available in Single and Multi-mode options, these loaded fiber optic cable patch panel come in 12, 24, 36, 48, 72 96 and 144 strand variations as well as your choice of FC, LC, SC, and ST connector types.
- The fiber optic cable patch panel has two compartments. One contains the bulkhead receptacles or adapters, and the other is used for splice tray and excess fiber storage.
- Fiber optic patch panel height:
1U: 44.5mm (max 24 ports)
2U: 90mm (max 48 ports)
3U: 135mm (max 72 ports)
4U: 180mm (max 96 ports)
- Rack Mount Fiber Optic Cabe Patch PanelCatalogy:
1/ Fixed Type Fiber Optic Cable Patch Panel
2/ Drawer Type Fiber Optic Cable Patch Panel
3/ Rotate Type Fiber Optic Cable Patch Panel
4/ Distribution Unit Fiber Optic Cable Patch Panel
5/ DinRail Fiber Optic Cable Patch Panel
6/ Wall mount Fiber Optic Cable Patch Panel
Feature:
- Standard 19'', be fit with 19'' Distribution frame.
- Adapter port available: SC, FC, LC, ST, E2000, DIN, MPO, MTP, MU, ...
- Thickness: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm
- Color: Black, Beige, White
- Height: 1U to 4U or more
- Packing: 1pc/small carton box, 1U: 5pcs/big carton, 2U: 3pcs/carton, 4U: 2pcs/carton

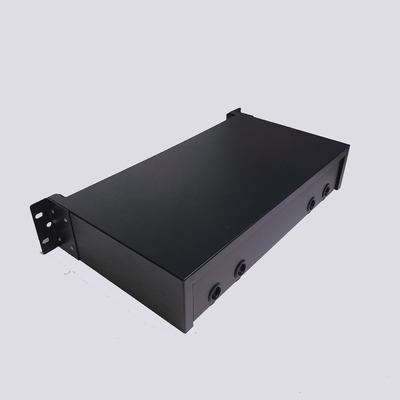

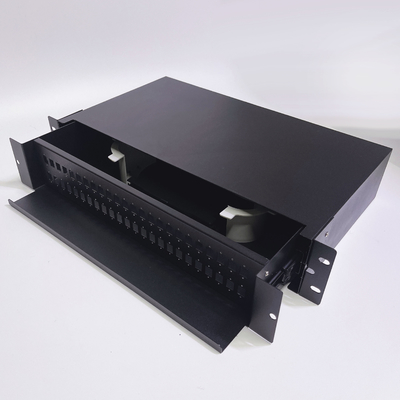

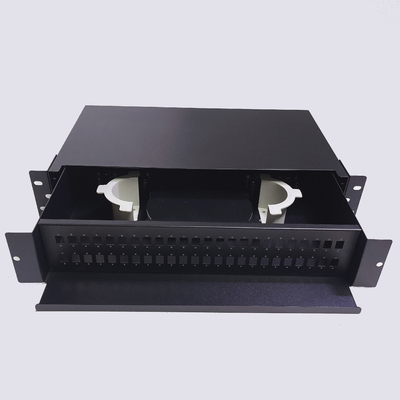

Product photo:
Descriptions:
| Fiber Capacity of panel | Max 192fo (LC Quad adapter) |
| Panel Connector Port | 48 ports |
| Type | Drawer type |
| Dimension | 485*300*2U |
| Material | Cold Rolled Steel or Aluminum |
| Storage Temperature | -45~+65℃ |
| Thickness | 0.6 0.8 1.0 1.2 1.5mm |
| Accessories | Cable ties, mounting ear screws, and spiral wrap tube |
| Fiber type |
SM: G652D, G657A1, G657A2 |
| Weight | 6.50kgs |
| P/N: | KCO-DR-2U-96-SCD |
