19 Inch Sliding Type Rack Mount Fiber Optic Patch Panel with SC LC FC ST Ports

  • 19 Inch Sliding Type Rack Mount Fiber Optic Patch Panel with SC LC FC ST Ports
  • 19 Inch Sliding Type Rack Mount Fiber Optic Patch Panel with SC LC FC ST Ports
  • 19 Inch Sliding Type Rack Mount Fiber Optic Patch Panel with SC LC FC ST Ports
  • 19 Inch Sliding Type Rack Mount Fiber Optic Patch Panel with SC LC FC ST Ports
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number KCO-DR-1U-24-SCS
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, export standard pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 10,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 SC Simplex Connector 2 LC Duplex
Size 485*300*1U Capacity 24 Cores SC Or 48 Cores LC
Color Black High 1U / 44.5mm
Type Drawer Type Standard 19 Inch
Logo Print Customized OEM ODM Service Yes
Highlight

Sliding Type Fiber Optic Box

,

SC LC Fiber Optic Box

,

RoHS Rack Mount Patch Panel
Leave a Message
Product Description
Sliding Type Fiber Optic Box SC LC FC ST 24 Port Rack Mount Patch Panel ODF
The 24 port rack mount patch panel fiber optic box is a 19'' rack mounted fiber optic patch panel made of cold-roll steel, with plastic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution.
Key Features
  • 19'' standard rack mount design compatible with distribution frames
  • Metal sliding fittings with self-locking function for secure operation
  • Available in 12, 24, 36, 48, 72, 96 and 144 adapter ports
  • Supports multiple connector types: FC, LC, SC, ST, E2000, DIN, MPO
  • Dual compartment design for adapters and splice tray storage
  • Available in various heights: 1U (44.5mm), 2U (90mm), 3U (135mm), 4U (180mm)
  • Multiple material thickness options: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm
  • Color options: Black, Beige, White
Technical Specifications
Fiber Capacity Max 48fo (LC Duplex adapter)
Connector Ports 12/24 ports
Type Drawer type
Dimensions 485*300*1U
Material Cold Rolled Steel or Aluminum
Storage Temperature -45~+65℃
Fiber Types SM: G652D, G657A1, G657A2
MM: OM1, OM2, OM3, OM4, OM5
Weight 6.50kgs
Part Number KCO-DR-1U-24-SCS
Applications
  • PON (Passive Fiber Optic Networks)
  • Telecommunications
  • FTTH (Fiber to the home)
  • LAN / WAN networks
  • CATV systems
Product Images

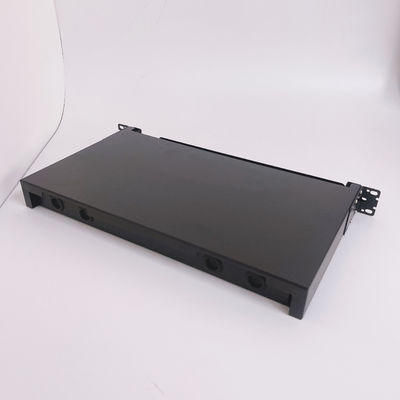

19 Inch Sliding Type Rack Mount Fiber Optic Patch Panel with SC LC FC ST Ports 0

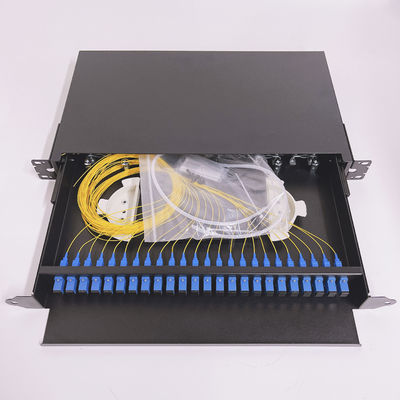

19 Inch Sliding Type Rack Mount Fiber Optic Patch Panel with SC LC FC ST Ports 1

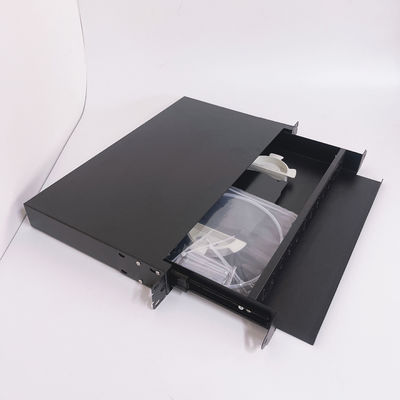

19 Inch Sliding Type Rack Mount Fiber Optic Patch Panel with SC LC FC ST Ports 2
19 Inch Sliding Type Rack Mount Fiber Optic Patch Panel with SC LC FC ST Ports 3
19 Inch Sliding Type Rack Mount Fiber Optic Patch Panel with SC LC FC ST Ports 4
