12 Ports 19 Inch Rack Mount Fiber Optic Patch Panel with Drawer Sliding 485x300x1U Design

  • 12 Ports 19 Inch Rack Mount Fiber Optic Patch Panel with Drawer Sliding 485x300x1U Design
  • 12 Ports 19 Inch Rack Mount Fiber Optic Patch Panel with Drawer Sliding 485x300x1U Design
  • 12 Ports 19 Inch Rack Mount Fiber Optic Patch Panel with Drawer Sliding 485x300x1U Design
  • 12 Ports 19 Inch Rack Mount Fiber Optic Patch Panel with Drawer Sliding 485x300x1U Design
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number KCO-DR-1U-12-SCS
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, export standard pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 10,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 SC Simplex Connector 2 LC Duplex
Size 485*300*1U Capacity 12 Cores SC Or 24 Cores LC
Color Black High 1U / 44.5mm
Type Drawer Type Standard 19 Inch
Logo Print Customized OEM ODM Service Yes
Highlight

Optical Fiber Patch Panel 1U

,

Sliding Optical Fiber Patch Panel OEM
Leave a Message
Product Description

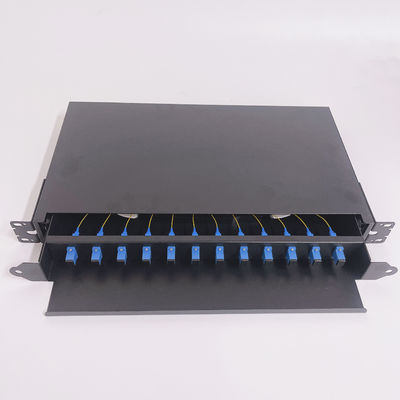

12 Ports Optical Fiber Patch Panel Drawer Sliding 1U Black Color Rack Mount

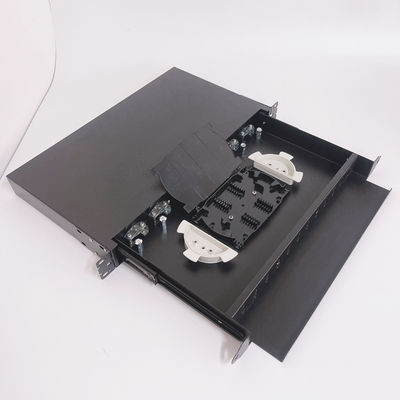

The 12 port rack mount optical fiber patch panel is a 19'' rack mounted fiber optic patch panel made of cold-roll steel with a plastic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution. Features metal sliding fittings with self-locking functions to prevent the drawer from falling when moved.
Key Features
  • Compatible with all types of adapters (SC, FC, LC, ST, E2000, DIN, MPO, MTP, MU)
  • Pre-loadable with required adapters and simple management kit
  • Two compartments: one for bulkhead receptacles/adapters, one for splice tray and excess fiber storage
  • Available in black, beige, or white color options
  • Standard 19'' rack mount compatible
  • Available in 1U to 4U height configurations
  • Material thickness options: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm
Applications
  • Passive Fiber Optic Networks (PON, GPON)
  • Telecommunication networks
  • FTTH, FTTB, FTTR, FTTO, FTTA
  • LAN, WAN, CATV networks
  • Active device termination
12 Ports 19 Inch Rack Mount Fiber Optic Patch Panel with Drawer Sliding 485x300x1U Design 0 12 Ports 19 Inch Rack Mount Fiber Optic Patch Panel with Drawer Sliding 485x300x1U Design 1 12 Ports 19 Inch Rack Mount Fiber Optic Patch Panel with Drawer Sliding 485x300x1U Design 2
Technical Specifications
Specification Details
Fiber Capacity of panel Max 48fo (LC Duplex adapter)
Panel Connector Port 12/24 ports
Type Drawer type
Dimension 485*300*1U
Material Cold Rolled Steel or Aluminum
Storage Temperature -45~+65℃
Thickness 0.6, 0.8, 1.0, 1.2, 1.5mm
Accessories Cable ties, mounting ear screws, and spiral wrap tube
Fiber type SM: G652D, G657A1, G657A2
MM: OM1, OM2, OM3, OM4, OM5
Weight 6.50kgs
P/N KCO-DR-1U-24-SCS

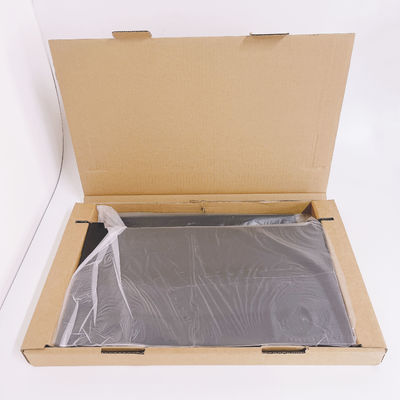

Packing Information
12 Ports 19 Inch Rack Mount Fiber Optic Patch Panel with Drawer Sliding 485x300x1U Design 3
  • 1pc/small carton box
  • 1U: 5pcs/big carton
  • 2U: 3pcs/carton
  • 4U: 2pcs/carton
Related Product Catalog
  • Fiber Optic Cable: outdoor cable, indoor cable, ftth drop cable, tactical cable
  • Fiber Optic Patch Cord: indoor patch cord, ftth drop patch cord, Field Fiber Optic Patch Cord, Outdoor Patch Cord
  • Fiber Optic Splitter: PLC Splitter, FTB Coupler, Multimode splitter
  • Fiber Optic Fast Connector: SC, FC, LC, ST
  • Fiber Optic Splice Closure: Inline type, Dome type, Aerial type, Wall mount type, Splitter Splice closure
  • Fiber Optic Terminal Box: Cross Cabinet, Indoor terminal box, Outdoor terminal box, FDB, FAT, CTO, Splitter Box
  • Fiber Optic Distribution Box: Fiber Optic Patch Panel, Fiber Optic Distribution Unit, Fiber Optic Distribution Frame
  • MPO MTP Solution product: MPO Patch Cord (8fo, 12fo, 16fo, 24fo, 32fo), MTP Patch cable, MPO MTP attenuator, MPO MTP loop back, MPO MTP Adapter, MPO MTP patch panel
OEM/ODM Services
Custom branding available for goods including cable, packaging, labels, etc. Contact our sales team for support.
Shipping Options
  • International express: UPS, TNT, DHL
  • International air: CA, AA, EA
  • By sea: Huyndai, COSCO
  • Standard export ports: Shenzhen, Hongkong, Ningbo
  • Standard export airports: Shenzhen, Hongkong, Hangzhou, Shanghai
