Mini Tube 1x16 1:16 PLC Splitter SC APC G657A1 G652D Cable Passive Fiber Optic Splitter

  • Mini Tube 1x16 1:16 PLC Splitter SC APC G657A1 G652D Cable Passive Fiber Optic Splitter
  • Mini Tube 1x16 1:16 PLC Splitter SC APC G657A1 G652D Cable Passive Fiber Optic Splitter
  • Mini Tube 1x16 1:16 PLC Splitter SC APC G657A1 G652D Cable Passive Fiber Optic Splitter
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-MN-1x16-0.9C-1.5M-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union, T/T, L/C
Supply Ability 100,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type Mini Tube Pigtail Length 1.5m
Splitter Type 1*16 1x16 Connector SC/UPC
Cable Dia. 0.9mm P/N KCO-MN-1x16-0.9C-1.5M-SCA
Connector Color Green Pigtail Color Multi-colors
High Light

SC APC 1x16 PLC Splitter

,

G657A1 Passive Fiber Optic Splitter

,

G652D Passive Fiber Optic Splitter
Leave a Message
Product Description

Mini Tube 1*16 1x16 SC APC G657A1 G652D Cable PLC Optical Passive Fiber Splitter

Descriptions:

- PLC optical passive fiber splitter feature low IL and PDL, high isolation that suit for 1260 -​1650nm optical fibre signals splitting and distributing in PON and CATV networks. Provide uniform division of an optical signal from one input fibre to multiple outgoing fibres.



- PLC optical passive fiber splitter is used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
- PLC optical passive fiber splitter provides a cost effective and space saving product suitable to the ever changing networking requirements.
- With it's compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems.
- PLC optical passive fiber splitter's installation is simple using a variety of connector types or fusion splicing.
- This PLC optical passive fiber splitter is a 1x16, with 1 input and 16 output fibers with an even split ratio across all fibers regardless of input wavelength.

- This PLC optical passive fiber splitter come with 0.9mm multi-color pigtail and SC/APC connector terminal.
- Kocent Optec Limited PLC optical passive fiber splitter catalogy:
1/ Bare fiber type PLC optical passive fiber splitter
2/ Mini tube type PLC optical passive fiber splitter
3/ ABS box type PLC optical passive fiber splitter
4/ Rack mount type PLC optical passive fiber splitter
5/ LGX box type PLC optical passive fiber splitter

Product Features:
- Singlemode PLC optical passive fiber splitter in a variety of package types and configurations
- Optical performance 100% factory tested
- UPC, and APC polish types available for connectorized products
- Low Insertion Loss, Back Reflection and PDL

- Good environmental stability from its all fiber structure.
- The splitter has low insertion loss,high return loss,and good interchangeability.
- Suitable for home wiring,engineering project,company and fiber LAN.

Construction:
- Configuration Type: 1×16, 1*16, 1:16
- Fiber Type: G.657A1
- Pigtail Diameter: 0.9mm
- Pigtail Color: multi-colors
- Pigtail Length: 1.0m input / 1.0m output
- Connector Type: SC/APC

Specification:

Wave Length: 1260nm / 1650nm
Type: 1x16
Insertion Loss (dB) Max: <14.0
Uniformity (dB) Max: <1.5
PLD (dB) Max: <0.3
Directivity Min: 55dB
Return Loss (dB) Min: 55 (50)
Operating Temperature: <-40 ~ +85°C
Power Handling: 300mW



Application:
- FTTH Network
- FTTX Deployment
- Optical Signal Distribution
- Passive Optical Network(PON)
- LAN
- CATV System
- Measuring System and Laser System
- DWDM and CWDM System
- Data Communications

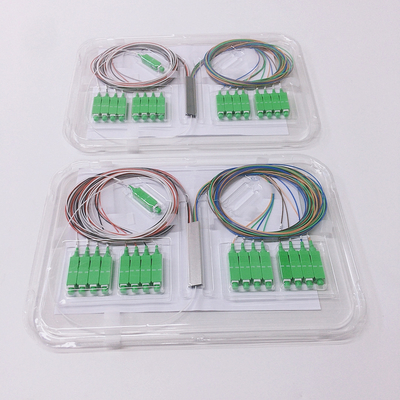

Product photos:

Mini Tube 1x16 1:16 PLC Splitter SC APC G657A1 G652D Cable Passive Fiber Optic Splitter 0



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Mini Tube 1x16 1:16 PLC Splitter SC APC G657A1 G652D Cable Passive Fiber Optic Splitter 1



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
