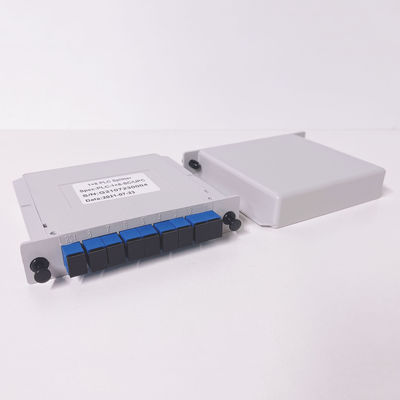

Single Mode SM G657A 1x8 PLC Fiber Optic Splitter with Low Insertion Loss and Good Channel Uniformity for FTTX Deployment

  • Single Mode SM G657A 1x8 PLC Fiber Optic Splitter with Low Insertion Loss and Good Channel Uniformity for FTTX Deployment
  • Single Mode SM G657A 1x8 PLC Fiber Optic Splitter with Low Insertion Loss and Good Channel Uniformity for FTTX Deployment
  • Single Mode SM G657A 1x8 PLC Fiber Optic Splitter with Low Insertion Loss and Good Channel Uniformity for FTTX Deployment
  • Single Mode SM G657A 1x8 PLC Fiber Optic Splitter with Low Insertion Loss and Good Channel Uniformity for FTTX Deployment
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-LGX-1x8-SCU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type LGX Insert Type Pigtail Length 0.3m
Splitter Type 1*8 1x8 1:8 Connector SC/UPC
Cable Dia. 0.9mm P/N KCO-LGX-1x8-SCU
Connector Color Blue Pigtail Color White
Highlight

SM 1x8 Fiber Optical Splitter

,

G657A LGX PLC Splitter

,

SC UPC LGX PLC Splitter
Leave a Message
Product Description
Single Mode SM G657A 1x8 1:8 Fiber Optical Splitter SC UPC LGX PLC Splitter
Product Description

The PLC (Planar Lightwave Circuit) planar waveguide optical splitter is composed of an optical waveguide chip and optical fiber arrays coupling at both ends. This LGX splitter uses semiconductor lithography technology to manufacture the optical splitter chip, offering stable performance, excellent output consistency, and wavelength-independent loss characteristics.

Key Features
  • Low insertion loss and polarization dependent loss
  • Excellent channel-to-channel uniformity
  • Wide operating wavelength range: 1260~1650nm
  • High reliability and stability
  • Standard LGX Box suitable for outdoor applications
  • 1x8 configuration distributes 1 optical signal into 8 output fibers
Technical Specifications
Item Unit Technical Data
Description - 1x8 Fiber Optical LGX Splitters SC/UPC
Wavelength nm 1260-1650
Insertion Loss nm ≤10.7
Channel Uniformity dB ≤1.0
Return Loss dB ≥50
Directionality dB ≥55
Polarization Dependent Loss dB ≤0.2
Package Size mm 130*100*24 mm
Operating Temperature ℃ -10~75
Storage Temperature ℃ -40~85
Applications
  • FTTH Network and FTTX Deployment
  • Passive Optical Network (PON)
  • LAN and CATV Systems
  • DWDM and CWDM Systems
  • Data Communications
  • Measuring Systems and Laser Systems

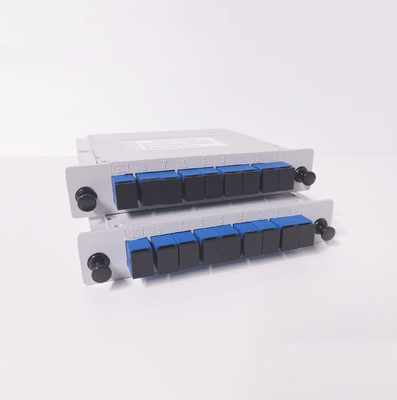

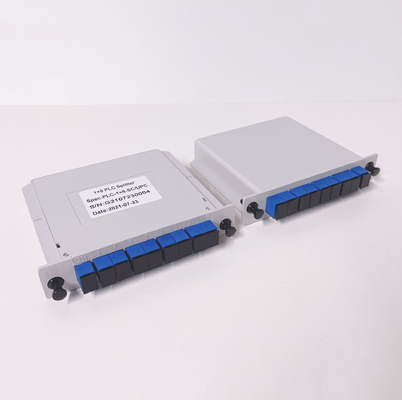

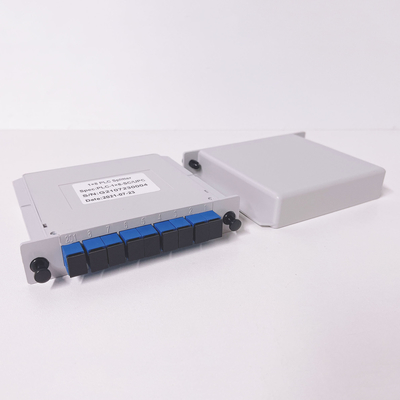

Product Images
Single Mode SM G657A 1x8 PLC Fiber Optic Splitter with Low Insertion Loss and Good Channel Uniformity for FTTX Deployment 0 Single Mode SM G657A 1x8 PLC Fiber Optic Splitter with Low Insertion Loss and Good Channel Uniformity for FTTX Deployment 1
OEM/ODM Services

We offer custom branding options for cables, packaging, labels and other components. Contact our sales team for personalized solutions.

Single Mode SM G657A 1x8 PLC Fiber Optic Splitter with Low Insertion Loss and Good Channel Uniformity for FTTX Deployment 2
Packaging & Shipping

Standard Packaging: 10pcs/small carton, 100pcs/big carton (750×270×270mm, 15kg)

Shipping Options: International express (DHL, UPS, TNT), air freight, or sea freight from major Chinese ports including Shenzhen, Hong Kong, Ningbo, Shanghai.
