19'' 3U 144 Cores High Desity ODF Fiber Optic Patch Panel Rack Mount Slide Type

Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number KCO-HD-3U-1444SCS
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, export standard pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 50,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 SC Simplex Connector 2 LC Duplex
Size 485*300*3U Capacity 144 Ports SC Simplex Or LC Duplex
Color Black High 1U / 130mm
Type Slide Type Standard 19 Inch
Logo Print Customized OEM ODM Service Yes
High Light

144 Cores Fiber Optic Patch Panel

,

ODF Fiber Optic Patch Panel

,

High Desity Fiber Optic Patch Panel

Leave a Message
Product Description

19'' 3U 144 Cores High Desity ODF Fiber Optic Patch Panel Rack Mount



- Kocent Optec Limited Fiber Optic Patch Panel Rack Mount Catalogy:

1/ Fixed Type Fiber Optic Patch Panel Rack Mount

2/ Drawer Type Fiber Optic Patch Panel Rack Mount

3/ Rotate Type Fiber Optic Patch Panel Rack Mount

4/ Distribution Unit Fiber Optic Patch Panel Rack Mount

5/ DinRail Optical Fiber Optic Patch Panel Rack Mount

6/ Wall mount Fiber Optic Patch Panel Wall Mount



Description:

- The Fiber Optic Patch Panel Rack Mount 144 ports is designed for standard 19inch indoor fiber optic distribution frame.

- The Fiber Optic Patch Panel Rack Mount 144 ports come with 12 small unit, which each unit can install 12pcs of SC simplex adapter or LC suplex adapter (other type of adapters are optional)

- The Fiber Optic Patch Panel Rack Mount is made by high quality cold rool steel tape with long lifetime.

- The Fiber Optic Patch Panel Rack Mount can make black color and also other color as cusmtomer request.

- The Fiber Optic Patch Panel Rack Mount high is 3U. Can Install 144 pcs of SC simplex adapter and pigtail.



Descriptions:

Fiber Capacity of panel  Max 4fo (LC duplex adapter)
Panel Connector Port  144 ports
Type  Drawer type (or Slide Type)
Dimension  485*300*3U
Material  Cold Rolled Steel or Aluminum
Storage Temperature  -45~+65℃
Thickness   1.2 1.5mm
Accessories  Cable ties, mounting ear screws, and spiral wrap tube
Fiber type

 SM: G652D, G657A1, G657A2
 MM: OM1, OM2, OM3, OM4, OM5

Weight  5.0kgs
P/N:   KCO-HD-3U144SCS



Applications:

- Metro,

- Data center,

- FTTH system,

- PON and GPON system,

- LAN, WAN system,

- Telecommunication networks,
- FTTB, FTTR, FTTO, FTTA system,
- LAN,WAN ,CATV networks,
- Active device termination.



Feature:

- Color: Black

- Height: 3U or more

- Type: Slide Type

- Splice Tray numbers: 12 pcs

- Standard 19'', be fit with 19'' Fiber optic distribution frame.

- Adapter port available: SC simpex or LC duplex

- Thickness: 1.2mm

- Packing: 1pc/small carton box, 3pcs/carton.

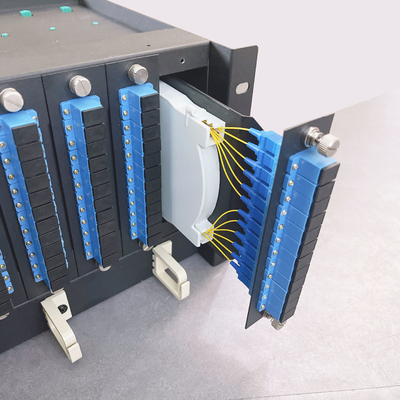

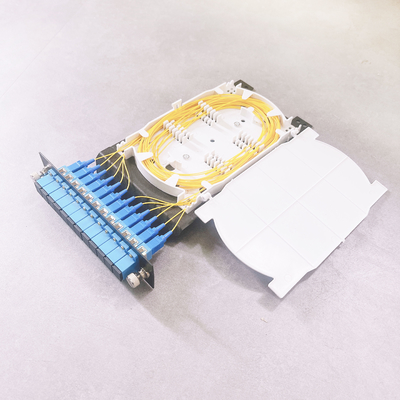

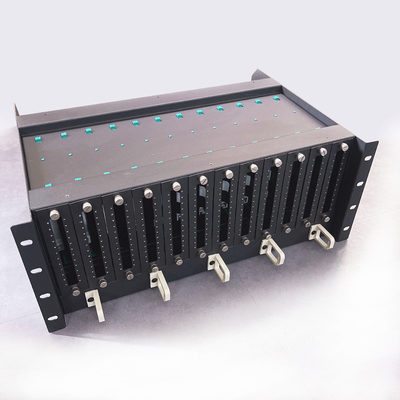

Product photo:

19'' 3U 144 Cores High Desity ODF Fiber Optic Patch Panel Rack Mount Slide Type 0

 19'' 3U 144 Cores High Desity ODF Fiber Optic Patch Panel Rack Mount Slide Type 1
