19 Inch 3U 144 Ports High Density ODF Fiber Optic Patch Panel Rack Mount Slide Type

  • 19 Inch 3U 144 Ports High Density ODF Fiber Optic Patch Panel Rack Mount Slide Type
  • 19 Inch 3U 144 Ports High Density ODF Fiber Optic Patch Panel Rack Mount Slide Type
  • 19 Inch 3U 144 Ports High Density ODF Fiber Optic Patch Panel Rack Mount Slide Type
  • 19 Inch 3U 144 Ports High Density ODF Fiber Optic Patch Panel Rack Mount Slide Type
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number KCO-HD-3U-1444SCS
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, export standard pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 50,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 SC Simplex Connector 2 LC Duplex
Size 485*300*3U Capacity 144 Ports SC Simplex Or LC Duplex
Color Black High 1U / 130mm
Type Slide Type Standard 19 Inch
Logo Print Customized OEM ODM Service Yes
Highlight

144 Cores Fiber Optic Patch Panel

,

ODF Fiber Optic Patch Panel

,

High Desity Fiber Optic Patch Panel
Leave a Message
Product Description
19" 3U 144 Cores High Density ODF Fiber Optic Patch Panel Rack Mount Slide Type
Product Overview
The 19" 3U 144 Cores High Density ODF Fiber Optic Patch Panel is designed for standard 19-inch indoor fiber optic distribution frames. This rack mount solution features 12 modular units, each capable of accommodating 12 SC simplex or LC duplex adapters (other adapter types available upon request).
Key Features
  • High-density 144-port capacity in compact 3U form factor
  • Constructed from durable cold rolled steel or aluminum
  • Standard black finish with custom color options available
  • Slide/drawer type design for easy access
  • Includes 12 splice trays for optimal fiber management
  • Compatible with SC simplex and LC duplex adapters
  • 1.2mm thickness for robust construction
  • Includes essential accessories: cable ties, mounting screws, and spiral wrap tubes
Technical Specifications
Specification Details
Fiber Capacity Max 4FO (LC duplex adapter)
Connector Ports 144 ports
Type Drawer/Slide Type
Dimensions 485×300×3U
Material Cold Rolled Steel or Aluminum
Storage Temperature -45°C to +65°C
Thickness 1.2mm / 1.5mm
Fiber Types Supported SM: G652D, G657A1, G657A2
MM: OM1, OM2, OM3, OM4, OM5
Weight 5.0kg
Part Number KCO-HD-3U144SCS
Applications
  • Metro networks
  • Data center infrastructure
  • FTTH, FTTB, FTTR, FTTO, FTTA systems
  • PON and GPON networks
  • LAN/WAN systems
  • Telecommunication networks
  • CATV networks
  • Active device termination

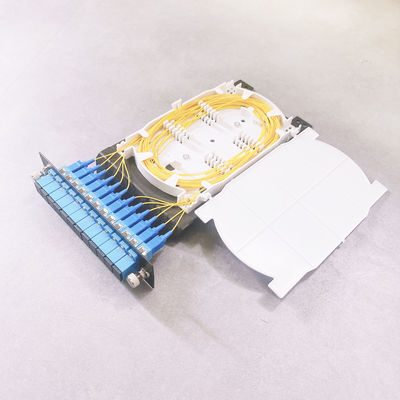

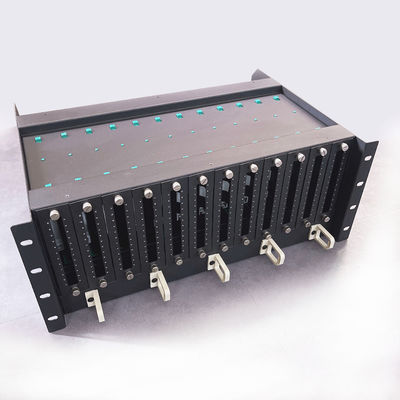

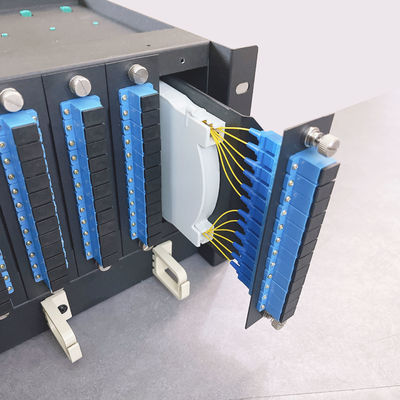

Product Images
19 Inch 3U 144 Ports High Density ODF Fiber Optic Patch Panel Rack Mount Slide Type 0 19 Inch 3U 144 Ports High Density ODF Fiber Optic Patch Panel Rack Mount Slide Type 1
Related Products
19 Inch 3U 144 Ports High Density ODF Fiber Optic Patch Panel Rack Mount Slide Type 2 19 Inch 3U 144 Ports High Density ODF Fiber Optic Patch Panel Rack Mount Slide Type 3 19 Inch 3U 144 Ports High Density ODF Fiber Optic Patch Panel Rack Mount Slide Type 4 19 Inch 3U 144 Ports High Density ODF Fiber Optic Patch Panel Rack Mount Slide Type 5
Product Catalog
  • Fiber Optic Cable: outdoor, indoor, FTTH drop, tactical
  • Fiber Optic Patch Cord: indoor, FTTH drop, field, outdoor
  • Fiber Optic Splitter: PLC, FTB Coupler, multimode
  • Fiber Optic Fast Connector: SC, FC, LC, ST
  • Fiber Optic Splice Closure: inline, dome, aerial, wall mount
  • Fiber Optic Terminal Box: cross cabinet, indoor/outdoor, FDB, FAT, CTO
  • Fiber Optic Distribution Box: patch panel, distribution unit, frame
  • MPO/MTP Solutions: patch cords, attenuators, adapters, panels
OEM/ODM Services
Custom branding available on products, packaging, and labels. Contact our sales team for personalized OEM/ODM solutions tailored to your requirements.
Packaging & Shipping
Packaging: Standard export packing (1pc/small carton box, 3pcs/carton), wooden box, or pallet options available.
Shipping: International express (UPS, TNT, DHL), air freight, or sea freight (Shenzhen, Hong Kong, Ningbo ports).
