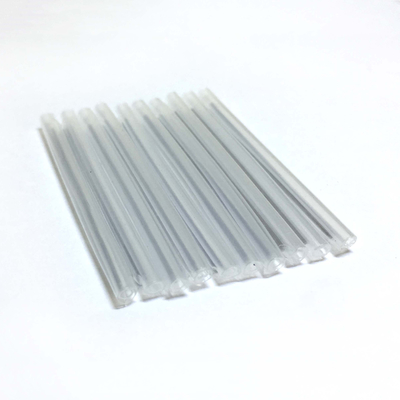

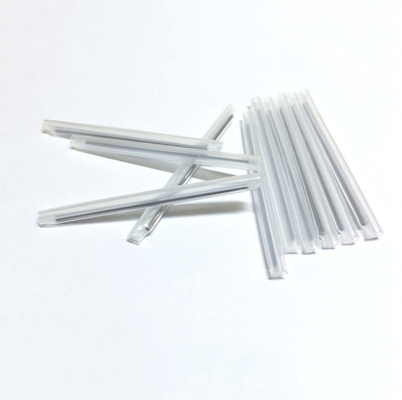

45mm 40mm Fiber Optic Protection Sleeve Heat Shrinkable Tube with 3.0mm Outer Diameter for Fusion Splice Protection

  • 45mm 40mm Fiber Optic Protection Sleeve Heat Shrinkable Tube with 3.0mm Outer Diameter for Fusion Splice Protection
  • 45mm 40mm Fiber Optic Protection Sleeve Heat Shrinkable Tube with 3.0mm Outer Diameter for Fusion Splice Protection
  • 45mm 40mm Fiber Optic Protection Sleeve Heat Shrinkable Tube with 3.0mm Outer Diameter for Fusion Splice Protection
  • 45mm 40mm Fiber Optic Protection Sleeve Heat Shrinkable Tube with 3.0mm Outer Diameter for Fusion Splice Protection
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number 60mm, 45mm, 40mm
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, Carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 1,000,000,000 pcs/ week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Length 60mm, 45mm, 40mm Outer Diameter 3.0mm
Steel Wire Diameter 1.2mm, 1.5mm Outer Material PET
Steel Wire Material SUS304, SUS201 Outer Thickness 0.2mm
Highlight

PET Outer Fiber Optic Protection Sleeve

,

Heat Shrinkable Fiber Optic Protection Sleeve

,

PET Outer protection sleeve 60mm
Leave a Message
Product Description
60mm 45mm 40mm Fiber Optic Protection Sleeve Heat Shrinkable Tube
Fiber Optic Protection Sleeves Heat Shrinkable Tube is designed for protecting and supporting fusion splice points in fiber optic networks. Available in various sizes to accommodate different fiber counts.
Product Features
  • Available in single fiber to 12-fiber protection configurations
  • Outer jacket made of polyolefin with EVA inner tube
  • Minimum shrinking temperature: 100°C
  • Available lengths: 20mm, 40mm, 45mm, and 60mm
  • Multiple reinforcement options: 1 steel wire (indoor), 1-2 steel wires (FTTH), or ceramic sleeve (bunch cable)
  • Used in optical fiber closures for splicing protection
  • Available in single-fiber and mass-fiber (ribbon) types
  • Mass-fiber types available in 4, 6, 8, and 12-core configurations
45mm 40mm Fiber Optic Protection Sleeve Heat Shrinkable Tube with 3.0mm Outer Diameter for Fusion Splice Protection 0
Technical Specifications
Properties Test Method Typical Data
Tensile Strength MPa ASTM D 2671 18
Ultimate Elongation (%) ASTM D 2671 700
Density (g/cm2) ISO R1183D 0.94
Dielectric Strength (KV/mm) IEC 243 20
Dielectric Constant IEC 243 2.5
Longitudinal Change (%) ASTM D 2671 ±5
Operating Temperature (°C) -45 to 100
Shrinking Temperature Range (°C) 90-110
Available Lengths (mm) 40mm, 45mm, 60mm

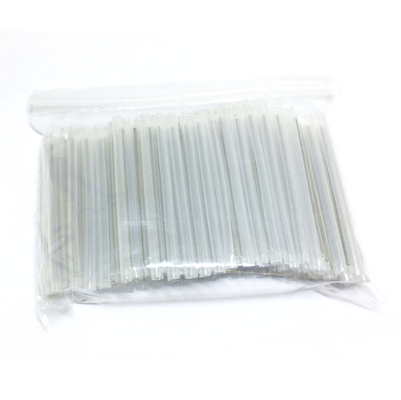

Packing Information
  • 100pcs/small bag
  • 30,000pcs/big bag
  • Box dimension: 45×26×53 cm
  • Packing capacity: 40,000pcs/box
  • Standard export packing options: carton box, wooden box, wooden pallet
OEM/ODM Services
Custom branding available on products, packaging bags, labels, or other locations. Contact our sales team for OEM/ODM support.
Shipping Options
  • International express: UPS, TNT, DHL
  • International air: CA, AA, EA
  • Sea freight: Huyndai, COSCO
  • Export ports: Shenzhen, Hongkong, Ningbo
  • Export airports: Shenzhen, Hongkong, Hangzhou, Shanghai
