ASU Outdoor Single Mode G652D G657A Mini ADSS Fiber Optical Cable
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001, RoHS |
| Model Number | KCO-M/ADSS-G652D-xxFO |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | wooden roll, wooden pallet |
| Delivery Time | 3~5 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 10,000km/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PE, LDPE, HDPE | Name | Outdoor Fiber Optic Cable |
|---|---|---|---|
| Length | 2km~3km Each Roll | Cable Type | Mini ADSS |
| Fiber | Single Mode | Cores | 2 Cores To 24 Cores |
| Color | Black | Diameter | 6.5mm |
| Part Number | KCO-M/ADSS-G652D-xxFO |
Product Description

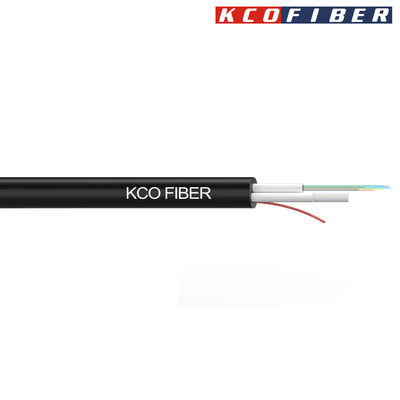

ASU Outdoor Single Mode G652D G657A Mini ADSS Fiber Optical Cable
1. What is Mini ADSS fiber optical cable?
ASU Fiber Optic Cable / Mini ADSS Fiber Optical Cable is Non-Armored Uni-Tube optical cable with fibers placed in loose buffer tube. The cable core is protected with jelly to prevent water intrusion and migration, and cover with a black polyethylene out jacket. Two embedded FRP or metallic wire provides desire tension.

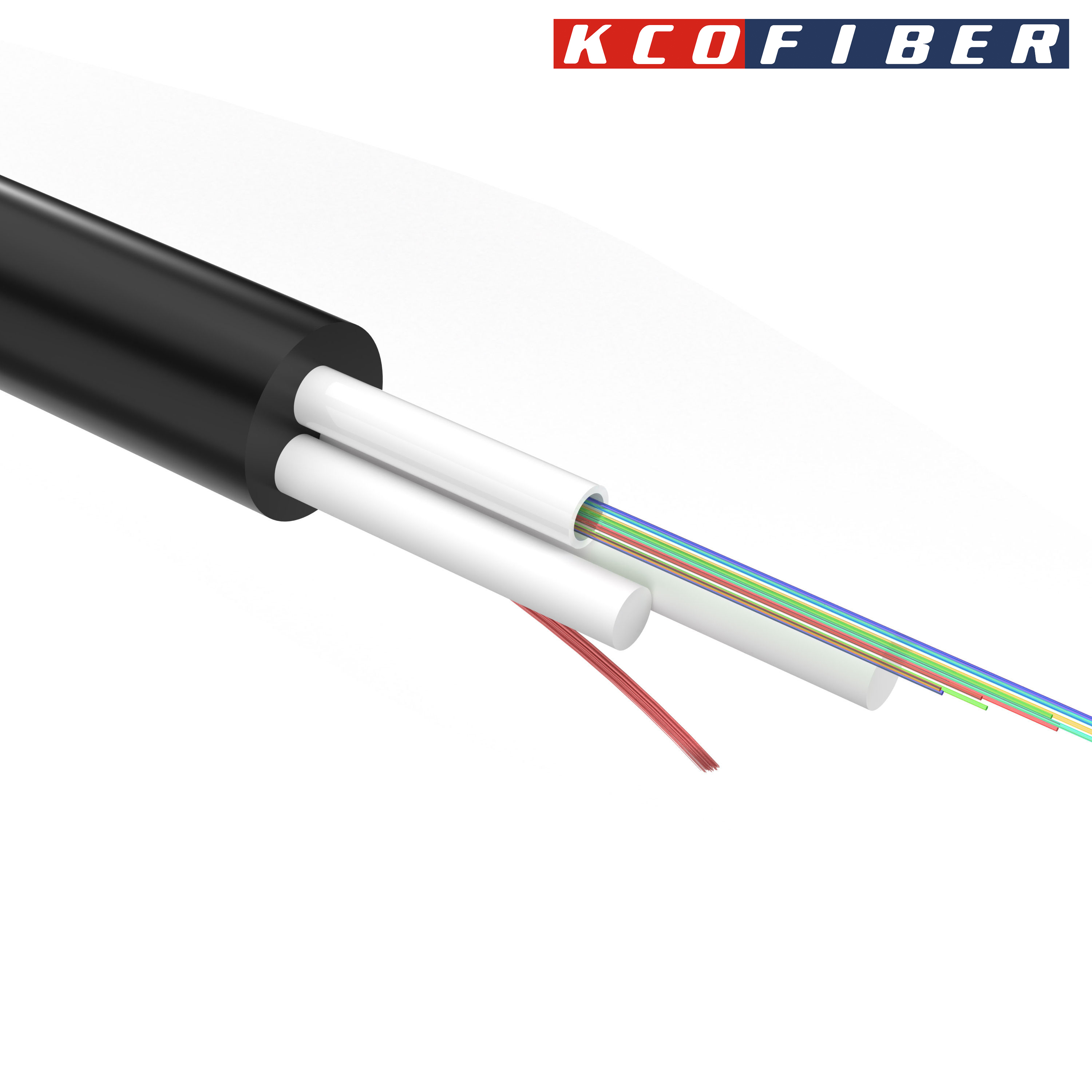

2. Mini ADSS fiber optical structure:
3. Characteristics:
-Large span lengths and the largest span is over 1700 m.
- Non-metallic material, with high insulating property performances as well as lightning-proof.
- Special anti-track outer sheath protection, strong anti-electro-corrosion ability.
- The aramid yarn ensure the cable's tensile resistance, and also have good bullet-proof performance.
- Light weight with small diameter, reducing the load caused by ice and wind as well as the load on the tower.
- Can be installed without shutting off the power.
4. Applications:
- Adopted to Outdoor.
- Suitable for aerial, pipeline laying method.
- Long distance and local area network communication.
5. Cable Mechanical Characteristic:
|
Item |
Contents |
Value |
|
|
Loose tube |
Number |
1 |
|
|
Outer diameter(mm) |
2.1 |
||
|
Thickness |
0.3 |
||
|
Materials |
PBT |
||
|
Water blocking |
Tube filling compound |
||
|
Strength member |
Materials |
FRP |
|
|
Diameter(mm) |
2.0 |
2.5 |
|
|
Number |
2 |
||
|
Water blocking |
Material |
Water blocking yarn |
|
|
Sheath |
Material |
HDPE |
|
|
Color |
Black |
||
|
Rip cord |
Number |
1.2 |
|
|
Cable diameter (mm) Approx |
6.5±0.5 |
7.5±0.5 |
|
|
Cable weight (kg/km) Approx |
45 |
65 |
|
|
Span(m) |
80 |
120 |
|
|
MAT |
690 |
980 |
|
6. Fiber characteristic:
| Fiber style | Unit | MM | |
| condition | nm | 850/1300 | |
| attenuation | dB/km | ≤3.0/1.0 | |
| ---- | |||
| Dispersion | 1550nm | Ps/(nm*km) | Dispersion |
| 1625nm | Ps/(nm*km) | ||
| Bandwidth | 850nm | MHZ.KM | Bandwidth |
| 1300nm | MHZ.KM | ||
| Zero dispersion wavelength | nm | ≧ 1295, ≤1320 | |
| Zero dispersion slope | nm | ---- | |
| PMD Maximum Individual Fiber | ≤0.11 | ||
| PMD Design Link Value | Ps(nm2*km) | ---- | |
| Fibre cutoff wavelength λc | nm | ---- | |
| Cable cutoff wavelength λcc | nm | ---- | |
| MFD | 1310nm | um | ---- |
| 1550nm | um | ---- | |
| Numerical Aperture(NA) | 0.200+/-0.015 | ||
| Step(mean of bidirectional measurement) | dB | ≤0.10 | |
| Irregularities over fiber length and point | dB | ≤0.10 | |
7. Fiber color:
| 1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Grey | White |
| 7 | 8 | 9 | 10 | 11 | 12 |
| Red | Black | Yellow | Violet | Pink | Aqua |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
