GYTC8S 8Fig Outdoor Cable Stranded Loose Tube Self-supporting Aerial Cables

  • GYTC8S 8Fig Outdoor Cable Stranded Loose Tube Self-supporting Aerial Cables
  • GYTC8S 8Fig Outdoor Cable Stranded Loose Tube Self-supporting Aerial Cables
  • GYTC8S 8Fig Outdoor Cable Stranded Loose Tube Self-supporting Aerial Cables
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-GYTC8S
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details wooden roll, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 10,000km/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material PE, LDPE, HDPE Name Outdoor Fiber Optic Cable
Length 1km~5km Each Roll Cable Type GYTC8S
Fiber Single Mode, Multimode Cores 2 Cores To 144 Cores
Color Black Diameter 9.0mm
Part Number GYTC8S-xA1
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description

GYTC8S 8Fig Outdoor Cable Stranded Loose Tube Self-supporting Aerial Cables

What is GYTC8S fiber optic cable?

GYTC8S: Outdoor Cable Stranded Loose Tube Self-supporting Aerial Cables

GYTC8S fiber optic cable is a typical self-supporting outdoor fiber optical cable. The mental strength member is made up of stranded wires as thesupporting part are completed with a PE sheath to be figure 8 structures. Corrugated steel tape armored and PE outer sheath providing crush resistance.

It's suitable for installation in aerial, used for long distance and LAN communication systems.

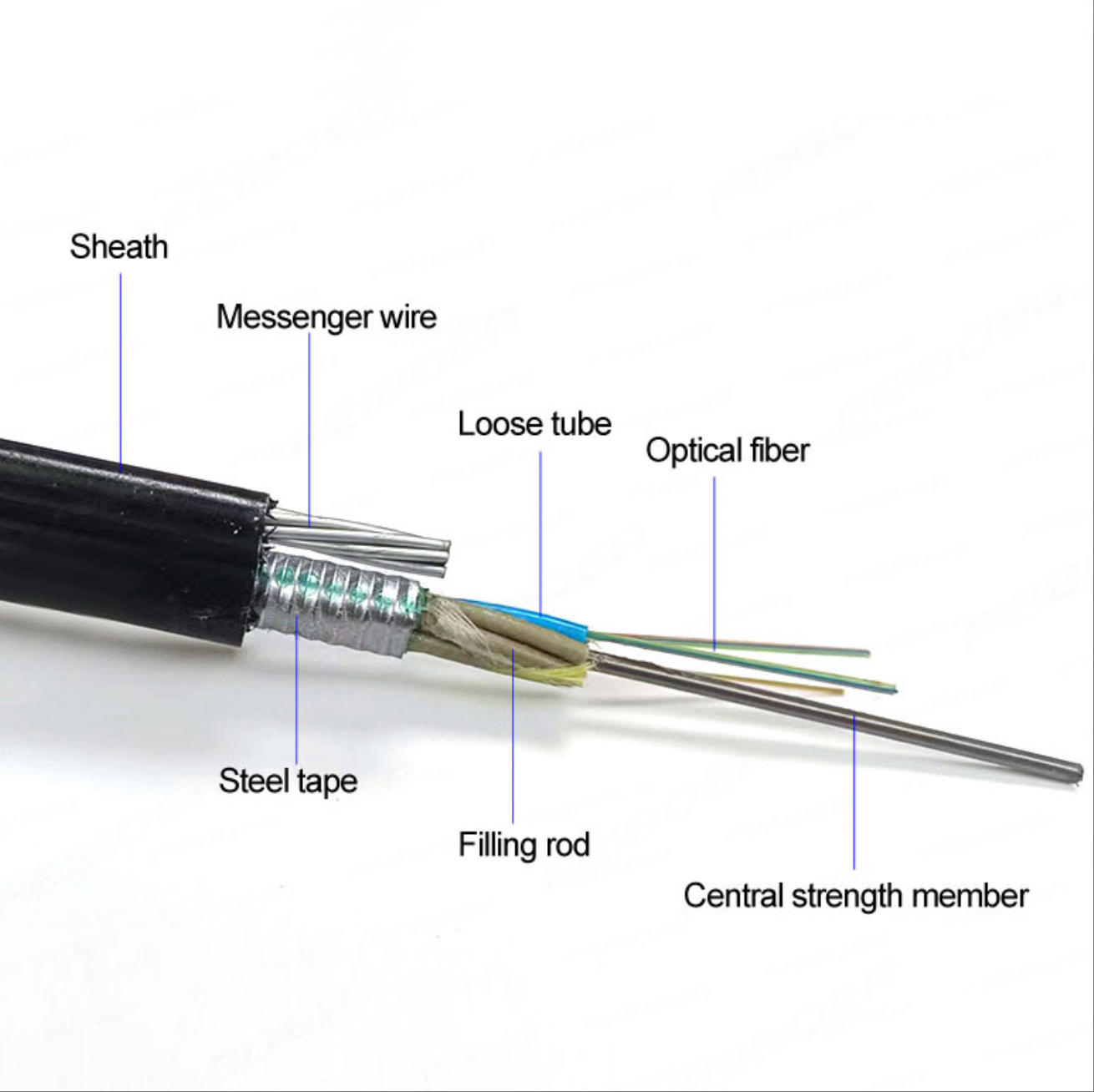

Construction:

GYTC8S 8Fig Outdoor Cable Stranded Loose Tube Self-supporting Aerial Cables 0

Feature:

  • Small cable diameter, figure 8 structure
  • Self-supporting stranded wires, easily to install
  • Excellent mechanical and environmental performance
  • Low dispersion and attenuation
  • Steel-wire strength member ensures tensile strength
  • Corrugated steel tape and the PE outer sheath ensure crush resistance
  • Water blocking system to improve the water proof ability

Applications:

  • Adopted to Outdoor distribution.
  • Suitable for aerial.
  • Long distance and local area network communication.

Fiber characteristic:

Fiber style Unit MM
condition nm 850/1300
attenuation dB/km ≤3.0/1.0


----
Dispersion 1550nm Ps/(nm*km) Dispersion

1625nm Ps/(nm*km) 　
Bandwidth 850nm MHZ.KM Bandwidth

1300nm MHZ.KM 　
Zero dispersion wavelength nm ≧ 1295, ≤1320
Zero dispersion slope nm ----
PMD Maximum Individual Fiber
≤0.11
PMD Design Link Value Ps(nm2*km) ----
Fibre cutoff wavelength λc nm ----
Cable cutoff wavelength λcc nm ----
MFD 1310nm um ----

1550nm um ----
Numerical Aperture(NA)
0.200+/-0.015
Step(mean of bidirectional measurement) dB ≤0.10
Irregularities over fiber length and point dB ≤0.10

Fiber color:

1 2 3 4 5 6
Blue Orange Green Brown Grey White
7 8 9 10 11 12
Red Black Yellow Violet Pink Aqua

OEM/ODM Service:

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:

  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea
