GYXTC8S Figure 8 Self-supporting Aerial Outdoor Fiber Optic Cable

  • GYXTC8S Figure 8 Self-supporting Aerial Outdoor Fiber Optic Cable
  • GYXTC8S Figure 8 Self-supporting Aerial Outdoor Fiber Optic Cable
  • GYXTC8S Figure 8 Self-supporting Aerial Outdoor Fiber Optic Cable
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-GYXTW-xA1
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details wooden roll, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 10,000km/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material PE, LDPE, HDPE Name Outdoor Fiber Optic Cable
Length 2km~3km Each Roll Cable Type GYXTW
Fiber Multimode OM2 50/125 Cores 2 Cores To 24 Cores
Color Black Diameter 7.0mm
Part Number GYXTW-xA1
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description
GYXTC8S Figure 8 Self-supporting Aerial Outdoor Fiber Optic Cable
1. What is GYXTC8S fiber optic cable?

- The fibers, 250μm,are positioned in a loose tube made of a high modulus plastic, the tubes are filled with a water-resistant filling compound.

- The two sides PSP are longitudinally applied over the outer loose tube.

- Steel wires and loose tubes filled with water proof compound to ensure compact and longitudinally water blocking, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (HDPE) sheath to be figure 8 structure.

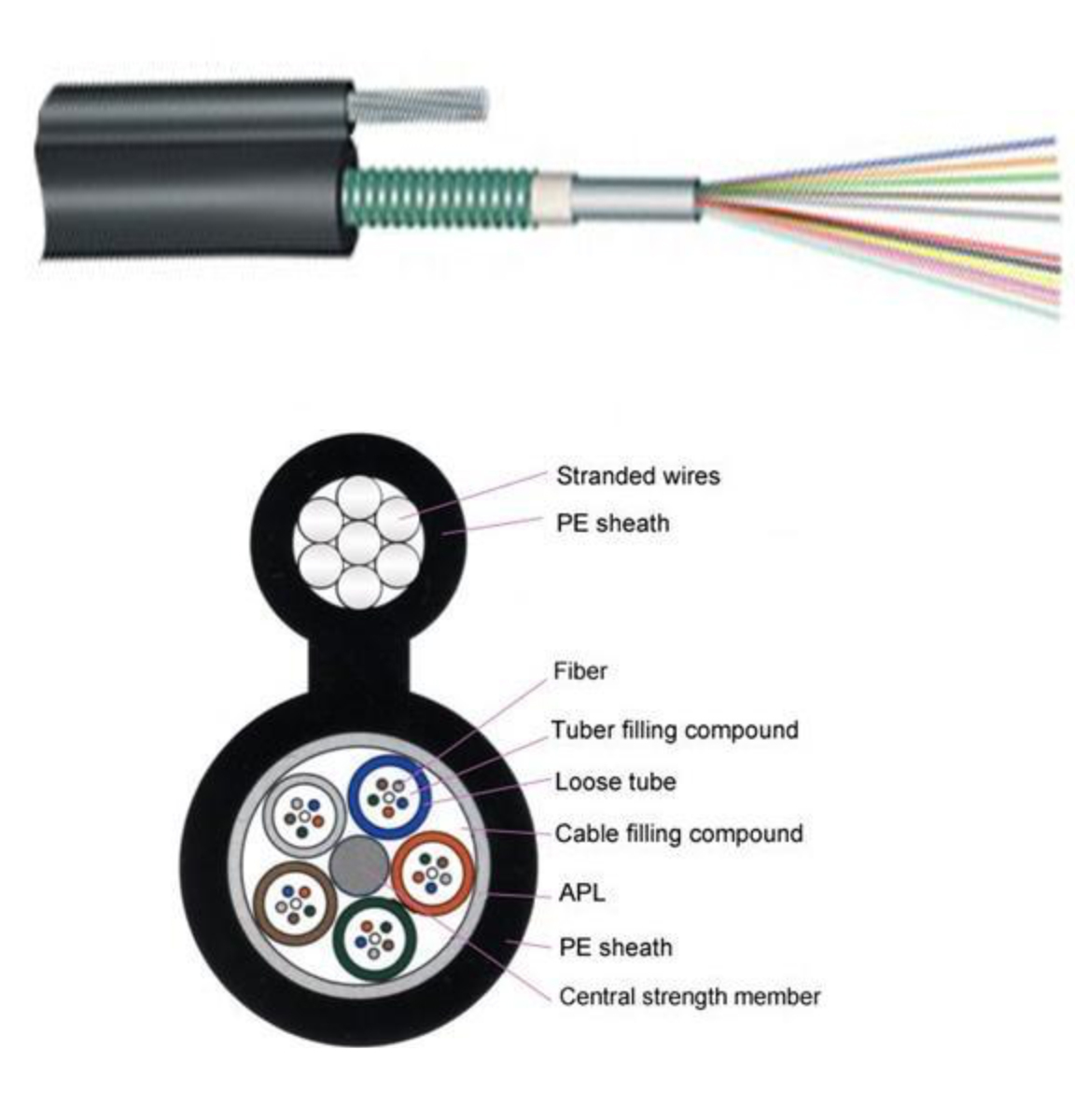

2. Construction:

GYXTC8S Figure 8 Self-supporting Aerial Outdoor Fiber Optic Cable 0

3. Characteristics:
  • High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
  • Good mechanical and temperature performance.
  • High strength loose tube that is hydrolysis resistant.
  • Special tube filling compound ensure a critical protection of fiber.
  • PSP enhancing moisture-proof.
  • Small diameter, light weight and friendly installation.
4. Standard

- GYXTC8S cable complies with Standard YD/T 1155-2001 as well as IEC 60794-1.

5. Cable Mechanical Characteristic:
Items Specifications
Fiber Count 4-48fo
Colored Coating Fiber Dimension 250µm±15µm
Color Blue, Orange, Blue, Brown, Gray, White, Red, Black, Yellow, Purple, Pink, Aqua
Loose Tube Dimension 2.0±0.2mm
Material PBT
Color Natural
Messenger Wire Steel Wire Diameter 7*1.0mm
Material Phosphating steel strand
Outer Jacket Dimension 4~12fo: 7.0*13.5mm±0.2mm
24fo: 9.0*17.0±0.5mm
48fo: 9.5*17.5±0.5mm
Material HDPE
Color Black
6. Fiber characteristic:
Fiber style Unit MM
condition nm 850/1300
attenuation dB/km ≤3.0/1.0
----
Dispersion 1550nm Ps/(nm*km) Dispersion
1625nm Ps/(nm*km) 　
Bandwidth 850nm MHZ.KM Bandwidth
1300nm MHZ.KM 　
Zero dispersion wavelength nm ≧ 1295, ≤1320
Zero dispersion slope nm ----
PMD Maximum Individual Fiber ≤0.11
PMD Design Link Value Ps(nm2*km) ----
Fibre cutoff wavelength λc nm ----
Cable cutoff wavelength λcc nm ----
MFD 1310nm um ----
1550nm um ----
Numerical Aperture(NA) 0.200+/-0.015
Step(mean of bidirectional measurement) dB ≤0.10
Irregularities over fiber length and point dB ≤0.10
7. Fiber color:
1 2 3 4 5 6
Blue Orange Green Brown Grey White
7 8 9 10 11 12
Red Black Yellow Violet Pink Aqua
OEM/ODM Service:

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:
  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea
