Single Mode G652D 4 Cores GYXTW 4b1 Fiber Optic Cable For  Aerial   Duct  Direct  Burial

  • Single Mode G652D 4 Cores GYXTW 4b1 Fiber Optic Cable For  Aerial   Duct  Direct  Burial
  • Single Mode G652D 4 Cores GYXTW 4b1 Fiber Optic Cable For  Aerial   Duct  Direct  Burial
  • Single Mode G652D 4 Cores GYXTW 4b1 Fiber Optic Cable For  Aerial   Duct  Direct  Burial
  • Single Mode G652D 4 Cores GYXTW 4b1 Fiber Optic Cable For  Aerial   Duct  Direct  Burial
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-GYXTW-xA1
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details wooden roll, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 10,000km/ month
Product Details
Material PE, LDPE, HDPE Name Outdoor Fiber Optic Cable
Length 2km~3km Each Roll Cable Type GYXTW
Fiber Multimode OM2 50/125 Cores 2 Cores To 12 Cores
Color Black Diameter 7.0mm
Part Number GYXTW-xA1
Leave a Message
Product Description
Single Mode G652D 4 Cores GYXTW 4b1 Fiber Optic Cable For  Aerial   Duct  Direct Burial
1. What is GYXTW fiber optic cable?

GYXTW fiber optic cable is one of most popular fiber optic cable for outdoor with central loose tube and light armored, it is most use for aerial, duct or direct burial

GY: Outdoor cable for communication
X: Central Loose Tube (Central Tube Structure)
T: Filled structure (Gel-filled/Waterproof)
W: Steel tape-polyethylene bonded sheath (Light Armored)

Cable structure: Single Loose Tube filled with waterproof compound, wrapped in PSP steel tape and a PE sheath.

Fiber: 25μm colored fibers (1-12 colors, typically).
Loose Tube: Filled with special waterproof gel for tube fiber protection.
Water Blocking: Water-blocking material between steel tape and tube.
Armor: Corrugated steel tape (PSP) bonded with PE sheath.
Strength Member: Parallel steel wires.

2. GYXTW fiber optic cable structure:
Single Mode G652D 4 Cores GYXTW 4b1 Fiber Optic Cable For  Aerial   Duct  Direct  Burial 0
3. Characteristics:
  • Fiber Count: Typically ranges from 2 to 24 cores.
  • Fiber type: Single mode G652D, Single mode G657A1, Single mode G657A2, Single mode G655. Multimode OM1 62.5/125, Multimode OM2 50/125, Multimode OM3 50/125, Multimode OM4 50/125 and Multimode OM5 50/125.
  • Armoring: Uses PSP (Plastic-Steel-Polyethylene) corrugated steel tape for moisture proofing and crush resistance.
  • Strength Members: Features two parallel steel wires that provide high tensile strength, making it suitable for hanging between poles (aerial spans).
  • Water-blocking: The central tube is filled with a water-resistant gel, and water-blocking material is often placed between the steel tape and the tube.
  • Outer Jacket: Made of black, UV-resistant polyethylene (PE) to withstand outdoor weather conditions.
  • Temperature Range: Generally operates between -40°C and +70°C.
4. Applications:
  • FTTH, FTTA main cable
  • It is also ideal for inter-office communication, metropolitan networks, and access networks, especially for aerial or conduit (duct) installations.
5. Cable Mechanical Characteristic:
Fiber number Cable diameter Weight
1~24
8.0mm+-0.5mm 70kg/km
7.0mm+-0.3mm 50kg/km
Temperature range -40°C to +70°C
Min Bending Radius(mm) Long term 10D
Min Bending Radius(mm) Short term 20D
Min allowable Tensile Strength(N) Long term 1200
Min allowable Tensile Strength(N) Short term 1500
Operation temperature -40°C+70°C
Installation temperature -20°C+60°C
Storage temperature -40°C+70°C
6. Fiber color:
1 2 3 4 5 6
Blue Orange Green Brown Grey White
7 8 9 10 11 12
Red Black Yellow Violet Pink Aqua
OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Single Mode G652D 4 Cores GYXTW 4b1 Fiber Optic Cable For  Aerial   Duct  Direct  Burial 1

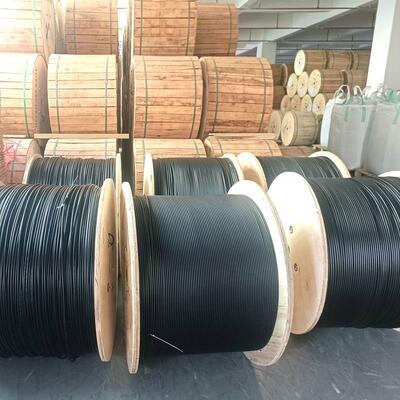

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:
  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea
