GYXTW 8b1 SM 8 Cores Aerial Light-armored Outdoor Fiber Optical Cable

  • GYXTW 8b1 SM 8 Cores Aerial Light-armored Outdoor Fiber Optical Cable
  • GYXTW 8b1 SM 8 Cores Aerial Light-armored Outdoor Fiber Optical Cable
  • GYXTW 8b1 SM 8 Cores Aerial Light-armored Outdoor Fiber Optical Cable
  • GYXTW 8b1 SM 8 Cores Aerial Light-armored Outdoor Fiber Optical Cable
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-GYXTW-xA1
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details wooden roll, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 10,000km/ month
Product Details
Material PE, LDPE, HDPE Name Outdoor Fiber Optic Cable
Length 2km~3km Each Roll Cable Type GYXTW
Fiber Multimode OM2 50/125 Cores 2 Cores To 12 Cores
Color Black Diameter 7.0mm
Part Number GYXTW-xA1
Leave a Message
Product Description

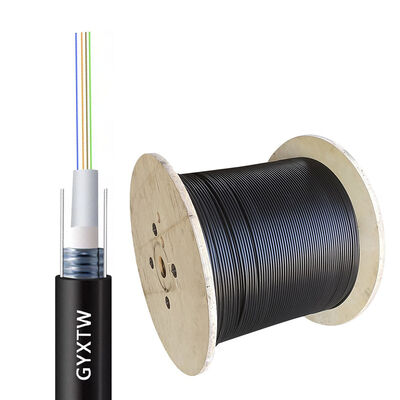

GYXTW 8b1 SM 8 Cores Aerial Light-armored Outdoor Fiber Optical Cable
1. What is GYXTW outdoor fiber optic cable?

GYXTW outdoor fiber optic cable is a type of outdoor uni-tube light-armored fiber optic cable designed for aerial and duct applications. Its name is an abbreviation based on Chinese industry standards, where GY stands for outdoor, X for center tube (uni-tube), T for jelly-filled, and W for steel tape armor with parallel steel wires

Structural Components:
Central Loose Tube: Contains 2 to 24 optical fibers (typically G.652D single-mode or other) protected by a high-modulus plastic tube filled with a water-resistant jelly.
Armoring tape: A layer of corrugated steel tape (PSP) is wrapped longitudinally around the tube to provide moisture resistance and protection against rodents and mechanical crush.
Strength Members: Two parallel steel wires are embedded on opposite sides of the outer jacket to provide the necessary tensile strength for aerial hanging and long-distance pulls.
Outer Sheath: A durable Polyethylene (PE) jacket that is UV-resistant and suitable for harsh outdoor environments.

2. GYXTW fiber optic cable structure:
GYXTW 8b1 SM 8 Cores Aerial Light-armored Outdoor Fiber Optical Cable 0
3. Technical Data:
  • Feature Typical Specification
    Fiber Count 2 to 24 cores
    Installation Method Aerial, Duct, or Direct Burial
    Crush Resistance High (due to corrugated steel tape)
    Water Blocking Jelly-filled tube + water-blocking material
4. Applications:

Aerial Deployment: use for suspension between poles due to its light-weight design and high tensile strength.

Duct Installations: Compact size and smooth PE jacket make it easy to pull through underground conduits.

Backbone & Local Networks: Widely used in telecommunications FTTH, CCTV, and campus-wide data transmission.

5. Cable Mechanical Characteristic:
Fiber number Cable diameter Weight
1~24
8.0mm+-0.5mm 70kg/km
7.0mm+-0.3mm 50kg/km
Temperature range -40°C to +70°C
Min Bending Radius(mm) Long term 10D
Min Bending Radius(mm) Short term 20D
Min allowable Tensile Strength(N) Long term 1200
Min allowable Tensile Strength(N) Short term 1500
Operation temperature -40°C+70°C
Installation temperature -20°C+60°C
Storage temperature -40°C+70°C
6. Fiber color:
1 2 3 4 5 6
Blue Orange Green Brown Grey White
7 8 9 10 11 12
Red Black Yellow Violet Pink Aqua

GYXTW 8b1 SM 8 Cores Aerial Light-armored Outdoor Fiber Optical Cable 1

OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

GYXTW 8b1 SM 8 Cores Aerial Light-armored Outdoor Fiber Optical Cable 2

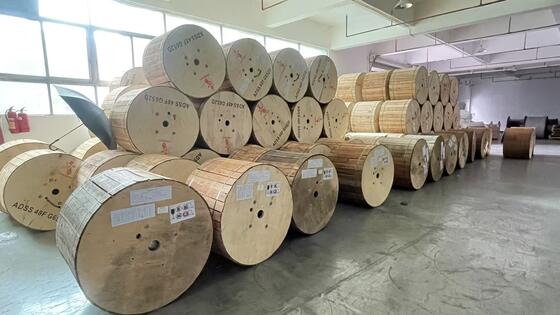

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:
  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea
