Outdoor GTYA53 Fiber Optic Cable for Direct Burial 4-144core Single Mode G652D Double Steel Tape Armored

  • Outdoor GTYA53 Fiber Optic Cable for Direct Burial 4-144core Single Mode G652D Double Steel Tape Armored
  • Outdoor GTYA53 Fiber Optic Cable for Direct Burial 4-144core Single Mode G652D Double Steel Tape Armored
  • Outdoor GTYA53 Fiber Optic Cable for Direct Burial 4-144core Single Mode G652D Double Steel Tape Armored
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-GYTS-144b1
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details wooden roll, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 10,000km/ month
Product Details
Material PE, LDPE, HDPE Name Outdoor Fiber Optic Cable
Length 5km Each Roll Cable Type GYTS
Fiber SM G652D Cores 2 Cores To 288 Cores
Color Black Diameter 9.0mm
Part Number GYTS-144b1
Leave a Message
Product Description
Outdoor GTYA53 Fiber Optic Cable for Direct Burial 4-144core Single Mode G652D Double Steel Tape Armored
1. What is Fiber Optic GYTA53 Cable?
  • Outdoor GYTA53 fiber optic cable is a heavy-duty, outdoor armored cable, designed specifically for direct burial in the ground and harsh environment installations.
  • It is engineered with a double-jacket, double-armor structure that provides maximum protection against extreme crushing forces, moisture, and chewing rodents
  • Gel-filled loose tubes + 100% core filling + water-blocking tape ensure full-section water barrier against longitudinal moisture ingress.
  • Stable tensile properties and temperature characteristics over a wide temperature range of 40 ℃ to+70 ℃.
  • 3000N short-term tensile and crush resistance meet the most demanding underground installation standards.
  • Double armored with PSP steel tape and APL aluminum tape provides 3000N/100mm crush resistance and rodent protection for direct burial.

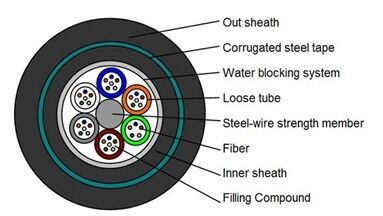

2. Fiber Optic GYTS Cable structure:
Outdoor GTYA53 Fiber Optic Cable for Direct Burial 4-144core Single Mode G652D Double Steel Tape Armored
3. Fiber Optic GYTA53 Cable Advantage:
  • Fiber Count: from 2 cores up to 144 cores depending on network needs.
  • Crush Resistance: Can handle up to 3000N/100mm of temporary crushing force.
  • Tensile Strength: Built to withstand up to 3000 N of pulling force during heavy installation.
  • Lifespan: maintenance-free life upto 25+ years.
  • Temperature Range: Safely operates in extreme climates from -40°C up to +60°C.
4. Fiber Optic GYTA53 Cable Production Standard
  • Complies with Standard YD/T 1155-2001 as well as IEC 60794-1.
5. Fiber Optic GYTA53 Cable specification:
Outdoor GTYA53 Fiber Optic Cable for Direct Burial 4-144core Single Mode G652D Double Steel Tape Armored
6. Fiber characteristic

 G.652 G.655 50/125μm 62.5/125μm
Attenuation (+20℃) @850nm

≤3.0 dB/km ≤3.0 dB/km
@1300nm

≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km

@1550nm ≤0.22 dB/km ≤0.23dB/km

Bandwidth (Class A) @850nm

≥500 MHz·km ≥200 MHz·km
@1300nm

≥1000 MHz·km ≥600 MHz·km
Numerical Aperture

0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm

7. Fiber and loose tube color
1 2 3 4 5 6
Blue Orange Green Brown Grey White
7 8 9 10 11 12
Red Black Yellow Violet Pink Aqua

Outdoor GTYA53 Fiber Optic Cable for Direct Burial 4-144core Single Mode G652D Double Steel Tape Armored

KCO Fiber OEM/ODM Service:

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Outdoor GTYA53 Fiber Optic Cable for Direct Burial 4-144core Single Mode G652D Double Steel Tape Armored

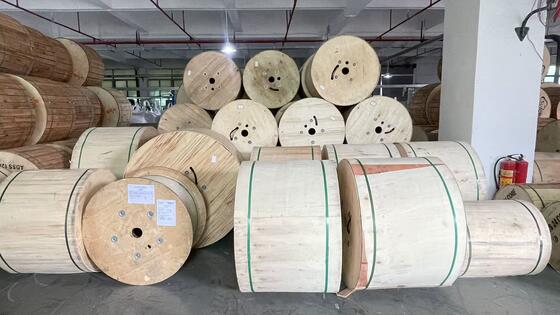

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:
  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea
