Direct-buried Underground Outdoor Optical Cable GYTA53 Single Mode G652D G657A Fiber 48f 96f 144 Cores

  • Direct-buried Underground Outdoor Optical Cable GYTA53 Single Mode G652D G657A Fiber 48f 96f 144 Cores
  • Direct-buried Underground Outdoor Optical Cable GYTA53 Single Mode G652D G657A Fiber 48f 96f 144 Cores
  • Direct-buried Underground Outdoor Optical Cable GYTA53 Single Mode G652D G657A Fiber 48f 96f 144 Cores
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-GYTA53-xxb1
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details wooden roll, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 10,000km/ month
Product Details
Material PE, LDPE, HDPE Name Outdoor Fiber Optic Cable
Length 5km / Reel, 3km/reel Cable Type GYTA53
Fiber SM G652D, SM G657A Cores 4 Cores To 144 Cores
Color Black Diameter 9.0mm
Part Number KCO-GYTA53
Leave a Message
Product Description
Direct-buried Underground Outdoor Optical Cable GYTA53 Single Mode G652D G657A Fiber 48f 96f 144 Cores
1. What is Fiber Optic GYTA53 Cable?

  • Direct-buried Underground Outdoor Optical Cable GYTA53 cable is one of common type fiber optic cable use for outdoor, is a heavy-duty, double-jacketed + double-armored fiber optic cable, special designed for direct burial underground.




  • The letters and numbers in GYTA53 are part of a standard naming system for fiber optic cables. Each part show us exactly how the cable is built:

    + GY: an outdoor cable for communication networks.

    + T: use a loose-tube design filled with a special waterproof gel to protect the glass fibers.

    + A: Stands for aluminum tape, which wraps around the inner core to act as a barrier against moisture.

    + 5: Indicates a corrugated steel tape armor layer on the outside to give the cable extreme crush resistance

    + 3: Means it has a tough outer polyethylene (PE) plastic jacket to resist weather, soil chemicals, and animal bites.



2. Fiber Optic GYTS Cable structure:

  • Central Strength Member: A solid steel wire or fiberglass rod in the dead center that stops the cable from stretching.


  • Fiber Tubes: Loose plastic tubes containing the actual color-coded glass fibers floating inside a jelly-like water-blocking compound.


  • Inner Jacket: A primary layer of PE plastic.


  • Moisture Barrier: The aluminum tape layer.


  • Mechanical Shield: The corrugated steel tape armor that stops rodents from chewing through the cable.


  • Outer Sheath: The final, thick black plastic layer that faces the dirt.

Direct-buried Underground Outdoor Optical Cable GYTA53 Single Mode G652D G657A Fiber 48f 96f 144 Cores

3. Fiber Optic GYTA53 Cable Advantage:
  • Fiber Count: from 2 cores up to 144 cores depending on network needs.
  • Crush Resistance: Can handle up to 3000N/100mm of temporary crushing force.
  • Tensile Strength: Built to withstand up to 3000 N of pulling force during heavy installation.
  • Lifespan: maintenance-free life upto 25+ years.
  • Temperature Range: Safely operates in extreme climates from -40°C up to +60°C.
4. Fiber Optic GYTA53 Cable Production Standard
  • Complies with Standard YD/T 1155-2001 as well as IEC 60794-1.
5. Fiber Optic GYTA53 Cable specification:
Direct-buried Underground Outdoor Optical Cable GYTA53 Single Mode G652D G657A Fiber 48f 96f 144 Cores
6. Fiber characteristic

 G.652 G.655 50/125μm 62.5/125μm
Attenuation (+20℃) @850nm

≤3.0 dB/km ≤3.0 dB/km
@1300nm

≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km

@1550nm ≤0.22 dB/km ≤0.23dB/km

Bandwidth (Class A) @850nm

≥500 MHz·km ≥200 MHz·km
@1300nm

≥1000 MHz·km ≥600 MHz·km
Numerical Aperture

0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm

7. Fiber and loose tube color
1 2 3 4 5 6
Blue Orange Green Brown Grey White
7 8 9 10 11 12
Red Black Yellow Violet Pink Aqua

Direct-buried Underground Outdoor Optical Cable GYTA53 Single Mode G652D G657A Fiber 48f 96f 144 Cores

KCO Fiber OEM/ODM Service:

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Direct-buried Underground Outdoor Optical Cable GYTA53 Single Mode G652D G657A Fiber 48f 96f 144 Cores

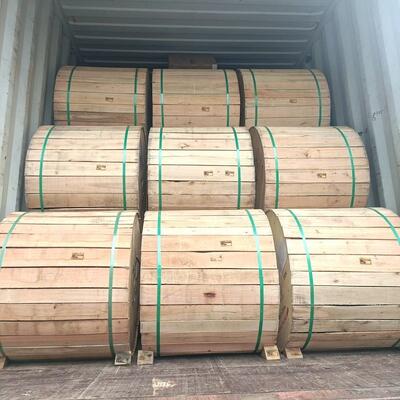

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:
  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea
