GYFTY Fiber Optic Cable For Outdoor Aerial Duct Direct Burial SM 24 cores / 48 cores / 72 cores
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001, RoHS |
| Model Number | KCO-GYTA-xA1 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | wooden roll, wooden pallet |
| Delivery Time | 3~5 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 10,000km/ month |
Product Details
| Material | PE | Name | Outdoor Fiber Optic Cable |
|---|---|---|---|
| Length | 2km~5km Each Roll | Cable Type | GYFTY |
| Fiber | Single Mode / Multi Mode | Cores | 2 Cores To 288 Cores |
| Color | Black | Diameter | 9.0mm |
| Part Number | GYFTY-xB1 | Manufacturer | Kocent Optec Limited |
| Origin | Guangdong, China |
Product Description
GYFTY Fiber Optic Cable For Outdoor Aerial Duct Direct Burial SM 24 cores / 48 cores / 72 cores
1. What is GYFTY fiber optic cable?
- GYFTY fiber optic cable is a fully non-metallic outdoor optical fiber communication cable, which is widely deployed in scenarios with strong electromagnetic interference and frequent lightning strikes.
- The GYFTY fiber optic cable capacity from 2fibers upto maximum 288 fibers.
- What "GYFTY" Means
G: Outdoor communication optical cable (Group).
Y: Loose tube structure.
F: Non-metallic central strength member made of fiberglass-reinforced plastic (FRP).
T: Loose tube design filled with gel.
Y: Polyethylene inner or outer protective layer.
- Performance Features
+ All-nonmetallic Structure:
There are no metal components in the entire cable, which completely eliminates transmission failures caused by lightning induction and strong electrical interference.
+ Excellent Mechanical and Temperature Stability:
The fiber excess length is precisely controlled, and the additional attenuation of the fiber after cabling is almost zero, with an applicable temperature range from -40℃ to +70℃.
+ Full-section Water-blocking Design:
Through the multiple designs of loose tube ointment and cable core water-blocking filler, moisture intrusion is avoided to prevent damage to optical fibers.
+ Good Laying Compatibility:
It supports multiple outdoor laying methods such as aerial and duct laying,and no additional lightning protection grounding treatment is required.

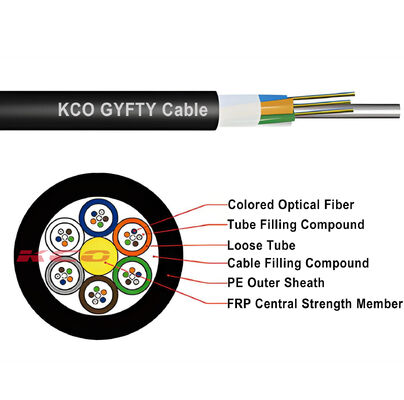

2. GYFTY Cable Structure:
- FRP Strength Member: The central yellow Fiberglass Reinforced Plastic, serving as the core tensile support of the cable, completely replaces the traditional metal strength core.
- Loose Tube: Colored tubes surrounding the central strength member, made of high-modulus PBT, accommodating 250μm bare optical fibers inside.
- Tube Filling Compound: Special waterproof ointment filled inside the loose tube, providing cushioning and waterproof protection for optical fibers.
- Cable Filling Compound: Water-blocking compound filled in the gaps of the entire cable core, achieving full-section water-blocking effect.
- PE Sheath: The outermost black polyethylene outer sheath, providing physical protection for the cable core.
- Vitta: Red and green marking lines on the sheath, used to distinguish the front and back sides and batches of the cable during construction. (Optional request)
3. GYFTY Cable Application:
- FTTx Cabling System
- CCTV Cabling System
- CCTV Cabling System
- LAN/WAN Cabling System
- Duct Installation
- Long-Haul & Backbone Networks
- Aerial routes
- Hazardous zones
4. Standard
- Complies with Standard YD/T 1155-2001 as well as IEC 60794-1.
5. Fiber characteristic
| Fiber style | Unit | MM | |
|---|---|---|---|
| Condition | nm | 850/1300 | |
| Attenuation | dB/km | ≤3.0/1.0 | |
| ---- | |||
| Dispersion | 1550nm | Ps/(nm*km) | Dispersion |
| 1625nm | Ps/(nm*km) | ||
| Bandwidth | 850nm | MHZ.KM | Bandwidth |
| 1300nm | MHZ.KM | ||
| Zero dispersion wavelength | nm | ≧ 1295, ≤1320 | |
| Zero dispersion slope | nm | ---- | |
| PMD Maximum Individual Fiber | ≤0.11 | ||
| PMD Design Link Value | Ps(nm2*km) | ---- | |
| Fibre cutoff wavelength λc | nm | ---- | |
| Cable cutoff wavelength λcc | nm | ---- | |
| MFD | 1310nm | um | ---- |
| 1550nm | um | ---- | |
| Numerical Aperture(NA) | 0.200+/-0.015 | ||
| Step(mean of bidirectional measurement) | dB | ≤0.10 | |
| Irregularities over fiber length and point | dB | ≤0.10 | |
6. Fiber color
| 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|
| Blue | Orange | Green | Brown | Grey | White |
| 7 | 8 | 9 | 10 | 11 | 12 |
| Red | Black | Yellow | Violet | Pink | Aqua |
OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
