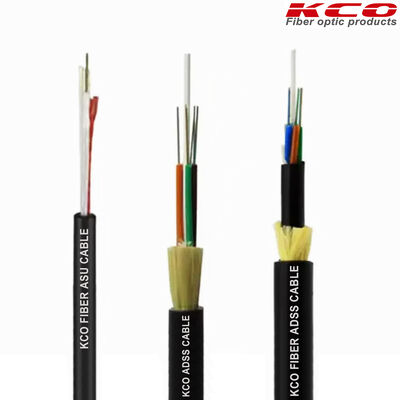

50m Span Single Sheath 6-96 Cores ADSS Fiber Optic Cable for Aerial Outdoor All-Dielectric Self-Supporting Deployment
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001, RoHS |
| Model Number | KCO-ADSS-SS-50-G652D |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | wooden roll, wooden pallet |
| Delivery Time | 3~5 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 10,000km/ month |
Product Details
| Material | PE, LDPE, HDPE | Name | Outdoor Fiber Optic Cable |
|---|---|---|---|
| Length | 3~5km Each Roll | Cable Type | ADSS |
| Fiber | Single Mode | Cores | 2 Cores To 288 Cores |
| Color | Black | Diameter | 9.0mm |
| Part Number | KCO-ADSS-SS-50-G652D | MNF | Kocent Optec Limited |
| Origin | Guangdong, China | ||
| Highlight | 50m Span ADSS Fiber Optic Cable,Single Sheath Aerial Optical Fiber Cable,6-96 Cores ADSS Fiber Optic Cable |
||
Product Description
Product Overview
The Span 50m Single Sheath Single Mode G652D 6–96 Cores ADSS Aerial Outdoor Optical Fiber Cable is a fully dielectric, self-supporting aerial fiber optic cable. It is engineered for short-span overhead deployment in power telecommunication, LAN access, and high electromagnetic interference (EMI) outdoor environments. Installation requires no power line outages, and the cable delivers a service life exceeding 25 years.
It is ideally suited to short-span overhead deployment in thunder-prone areas, high EMI zones, and 10kV–35kV power transmission communication networks, supporting long-distance telecom and last-mile access network construction.
Main Applications
- 10kV–35kV medium-voltage distribution network communication
- Campus and industrial park cross-building networking
- Smart city surveillance backhaul
- FTTH last-mile access in suburban and rural areas
- Distributed vibration sensing perimeter protection
- Harsh-environment short-span deployment

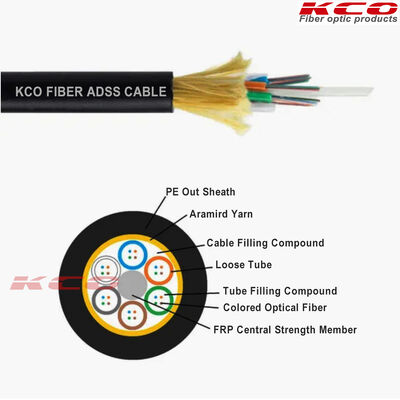

Cable Structure
- Outer Sheath: Single-layer HDPE/MDPE black jacket.
- Strength Members: Central FRP plus aramid yarn (Kevlar) reinforcement, precisely calibrated to meet 50m span tension requirements while minimizing tower load from cable weight, wind, and ice.
- Loose Tube: PBT material with water-blocking yarn/tape; fiber counts typically ranging from 4 to 48 cores.
- Optical Fiber Core: Single Mode Fiber (SMF) G652D; other single mode fiber types are available.
Cable Main Characteristics
- All-Dielectric Construction: Made entirely of non-conductive materials, making the cable safe for installation near energized power lines and eliminating the need for grounding.
- Self-Supporting: Designed to support its own weight plus wind and ice loads, negating the need for a separate messenger wire.
- High Tensile Strength: Aramid fiber yarns deliver high tensile strength, allowing the cable to withstand various environmental stresses.
- Environmental Resistance: Resists UV radiation, temperature fluctuations, and moisture, making it suitable for diverse climates.
- Long Span Capabilities: Can span considerable distances between support structures (poles or towers), reducing the number of supports required.
Fiber Characteristics
| Parameter | Unit | Condition | Value |
|---|---|---|---|
| Fiber style | — | — | SM G652D |
| Attenuation | dB/km | 1310/1550 nm | ≤0.34 / 0.22 |
| Dispersion | Ps/(nm·km) | 1550 nm | ≤18 |
| Dispersion | Ps/(nm·km) | 1625 nm | ≤22 |
| Bandwidth | MHz·km | 850 nm | — |
| Bandwidth | MHz·km | 1300 nm | — |
| Zero dispersion wavelength | nm | — | ≥1302, ≤1322 |
| Zero dispersion slope | nm | — | ≤0.091 |
| PMD maximum individual fiber | — | — | ≤0.2 |
| PMD design link value | Ps/(nm²·km) | — | ≤0.08 |
| Fiber cutoff wavelength λc | nm | — | ≥1180, ≤1330 |
| Cable cutoff wavelength λcc | nm | — | ≤1260 |
| MFD | µm | 1310 nm | 9.2 ± 0.4 |
| MFD | µm | 1550 nm | 10.4 ± 0.8 |
| Numerical Aperture (NA) | — | — | — |
| Step (mean of bidirectional measurement) | dB | — | ≤0.05 |
| Irregularities over fiber length and point | dB | — | ≤0.05 |
| Difference backscatter coefficient | dB/km | — | ≤0.03 |
| Attenuation uniformity | dB/km | — | ≤0.01 |
| Core diameter | µm | — | 9 |
| Cladding diameter | µm | — | 125.0 ± 0.1 |
| Cladding non-circularity | % | — | ≤1.0 |
| Coating diameter | µm | — | 242 ± 7 |
| Coating/cladding concentricity error | µm | — | ≤12.0 |
| Coating non-circularity | % | — | ≤6.0 |
| Core/cladding concentricity error | µm | — | ≤0.6 |
| Curl (radius) | µm | — | ≤4 |
Fiber Color Code
| 1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Grey | White |
| 7 | 8 | 9 | 10 | 11 | 12 |
| Red | Black | Yellow | Violet | Pink | Aqua |
OEM / ODM Service
If you want to display your own brand logo on the goods — such as on the cable, package bag, label, or anywhere else — that is no problem at all. Our OEM and ODM service is always ready to accommodate your requirements.
Packing & Shipping

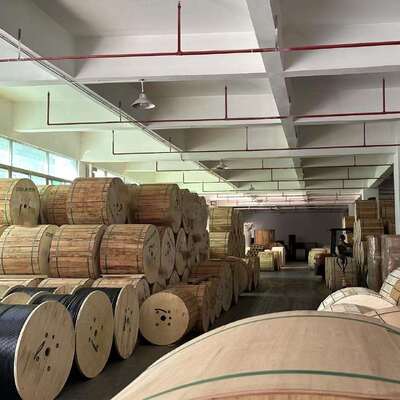

Packing
According to standard export packing: carton box, wooden box, or wooden pallet.
Shipping
- International express such as UPS, TNT, DHL, etc.
- International air: CA, AA, EA, etc.
- By sea
