80M Span G.657 Bend-insensitive Single Sheath ADSS Optical Fiber Cable for All-dielectric Aerial Fiber Optic Cable Deployment
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001, RoHS |
| Model Number | KCO-ADSS-SS-50-G652D |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |

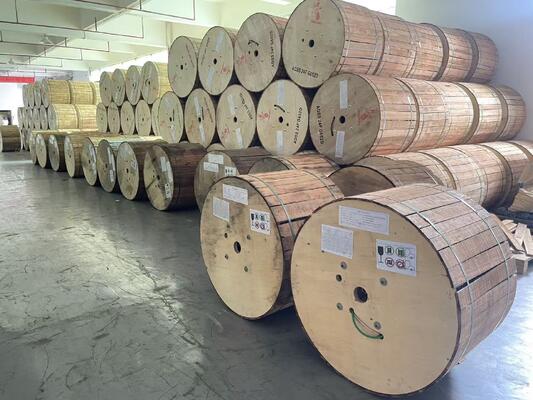

| Packaging Details | wooden roll, wooden pallet |
| Delivery Time | 3~5 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 10,000km/ month |
Product Details
| Material | PE, LDPE, HDPE | Name | Outdoor Fiber Optic Cable |
|---|---|---|---|
| Length | 3~5km Each Roll | Cable Type | ADSS |
| Fiber | Single Mode | Cores | 2 Cores To 288 Cores |
| Color | Black | Diameter | 9.0mm |
| Part Number | KCO-ADSS-SS-50-G652D | MNF | Kocent Optec Limited |
| Origin | Guangdong, China | ||
| Highlight | 80M Span ADSS Optical Fiber Cable,G.657 Bend-insensitive ADSS Fiber Cable,Single Sheath All-dielectric Aerial Fiber Optic Cable |
||
Product Description
Product Overview
The Span 80M SMF G.657 Outdoor All-dielectric 12/24/48/72/96 Cores Single Sheath ADSS Aerial Optical Cable is a single-sheath, outdoor, all-dielectric, fully non-metallic fiber optic cable solution. It is built around ITU-T G.657 bend-insensitive single-mode fiber and is purpose-engineered for short-to-medium overhead deployment without any live-line power interruptions.

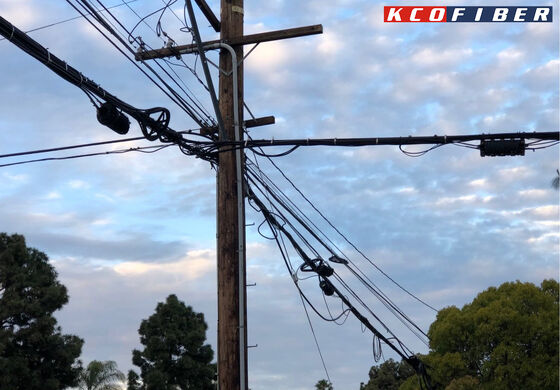

The cable is designed for direct overhead deployment on utility poles, eliminating the need for additional support cables or live-line power interruptions. It delivers a minimum 25-year service life and fully complies with IEEE 1222 and IEC 60794-1 global industry standards.
Main Applications
- 10kV–35kV medium-voltage distribution network communication
- Campus and industrial park cross-building networking
- OPGW station in/out transition
- Smart city surveillance backhaul
- FTTH last-mile access in suburban and rural areas
- Distributed vibration sensing perimeter protection
- Urban and rural FTTH last-mile access
- Harsh-environment short-span deployment

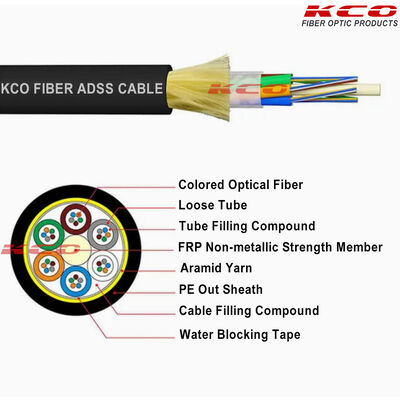

Cable Structure
- Outer Sheath: Single-layer HDPE/MDPE black jacket.
- Strength Members: Central FRP plus aramid yarn (Kevlar) reinforcement, precisely calibrated to meet 50 m span tension requirements while minimizing tower load from cable weight, wind, and ice.
- Loose Tube: PBT material with water-blocking yarn/tape; fiber counts typically ranging from 4 to 48 cores.
- Optical Fiber Core: Single Mode Fiber (SMF) G652D; other single-mode fiber types are available.
Single Sheath ADSS Cable Mechanical & Environmental Performance
- High Tension: Rated Tensile Strength (RTS) ranges from 10 kN to 120 kN, with maximum everyday operating tension kept below 1/3 of RTS to ensure fiber strain remains under 0.05%.
- Span Range: 50 m, 80 m, 100 m, 120 m, 150 m, 200 m, 300 m, 500 m.
- Bending Radius: 20× cable diameter during installation; 15× cable diameter under static no-load state.
- Temperature Range: −10 °C to +50 °C for installation; −40 °C to +70 °C for long-term operation and storage.
- Key Advantages: Fully immune to lightning strikes and electromagnetic interference; 30–50% lighter than double-sheath ADSS cables, reducing tower load and installation difficulty.
- Single Outer Sheath: 1.5–2.0 mm thick UV-stabilized black HDPE jacket.
Fiber Characteristics
| Parameter | Unit | Condition | Value |
|---|---|---|---|
| Fiber style | — | — | SM G652D |
| Attenuation | dB/km | 1310/1550 nm | ≤0.34 / 0.22 |
| Dispersion | Ps/(nm·km) | 1550 nm | ≤18 |
| Dispersion | Ps/(nm·km) | 1625 nm | ≤22 |
| Bandwidth | MHz·km | 850 nm | — |
| Bandwidth | MHz·km | 1300 nm | — |
| Zero dispersion wavelength | nm | — | ≥1302, ≤1322 |
| Zero dispersion slope | nm | — | ≤0.091 |
| PMD maximum individual fiber | — | — | ≤0.2 |
| PMD design link value | Ps/(nm²·km) | — | ≤0.08 |
| Fiber cutoff wavelength λc | nm | — | ≥1180, ≤1330 |
| Cable cutoff wavelength λcc | nm | — | ≤1260 |
| MFD | µm | 1310 nm | 9.2 ± 0.4 |
| MFD | µm | 1550 nm | 10.4 ± 0.8 |
| Numerical Aperture (NA) | — | — | — |
| Step (mean of bidirectional measurement) | dB | — | ≤0.05 |
| Irregularities over fiber length and point | dB | — | ≤0.05 |
| Difference backscatter coefficient | dB/km | — | ≤0.03 |
| Attenuation uniformity | dB/km | — | ≤0.01 |
| Core diameter | µm | — | 9 |
| Cladding diameter | µm | — | 125.0 ± 0.1 |
| Cladding non-circularity | % | — | ≤1.0 |
| Coating diameter | µm | — | 242 ± 7 |
| Coating/cladding concentricity error | µm | — | ≤12.0 |
| Coating non-circularity | % | — | ≤6.0 |
| Core/cladding concentricity error | µm | — | ≤0.6 |
| Curl (radius) | µm | — | ≤4 |
Fiber Color Code
| 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|
| Blue | Orange | Green | Brown | Grey | White |
| 7 | 8 | 9 | 10 | 11 | 12 |
| Red | Black | Yellow | Violet | Pink | Aqua |
OEM / ODM Service
If you want to display your own brand logo on the goods — such as on the cable, package bag, label, or anywhere else — that is no problem at all. Our OEM and ODM service is always ready to accommodate your requirements.
Packing & Shipping
Packing
According to standard export packing: carton box, wooden box, or wooden pallet.
Shipping
- International express such as UPS, TNT, DHL, etc.
- International air: CA, AA, EA, etc.
- By sea
