100M Span Single Sheath Single Mode ADSS Fiber Optic Cable for All-Dielectric Self-Supporting Aerial Outdoor Networks

The 100M Span Single Mode Loose Tube SM Single Sheath Aerial ADSS Fiber Optical Outdoor Cable (6 to 144 cores) is a non-metallic, self-supporting outdoor fiber optic solution purpose-engineered for 100 m standard overhead pole spacing.

• ADSS Cable: All-Dielectric Self-Supporting outdoor fiber optic cable with high tension, designed for aerial installation.
• Fully non-metallic aerial fiber optic cable that uses a single outer protective jacket (typically PE) to enclose its core components.
• Supports fiber counts from 6 to 144 cores and uses ITU-T G.652D / G.657.A1 single-mode fiber.
• Common core counts: 12, 24, 48, 96 and 144 fibers are the most mainstream mass-produced models; customized products from 2 to 144 fiber cores are also available.
• Key advantages: Fully immune to lightning strikes and electromagnetic interference; 30% lighter than double-sheath ADSS cables, enabling live-line installation without power outages.

1. 35 kV and below distribution network communication
2. Telecom access network aerial deployment
3. CATV overhead signal transmission
4. Urban municipal pipeline resource supplement
5. Rural and scenic area communication coverage
6. OPGW relay station lead-in / lead-out

• 250 μm optical fibers are inserted into high-modulus PBT loose tubes filled with water-blocking ointment.
• A central non-metallic strength member (FRP — Fiber Reinforced Plastic) provides primary tensile support.
• Two layers of high-strength aramid yarn are evenly twisted around the cable core to further enhance tensile performance.
• A single layer of polyethylene (PE) sheath is extruded over the aramid yarn, with pre-embedded ripcords for easy mid-span access.

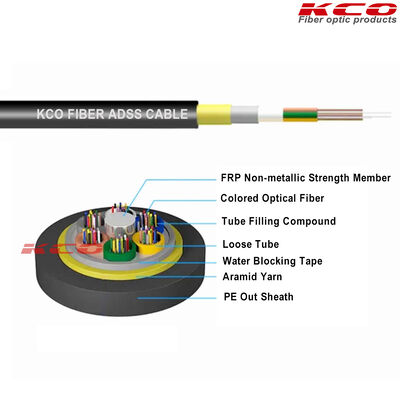

Single sheath ADSS cable construction

• High Tension: Rated Tensile Strength (RTS) ranges from 10 kN to 120 kN, with maximum everyday operating tension kept below 1/3 of RTS to ensure fiber strain remains under 0.05%.
• Span Range: 50 m, 80 m, 100 m, 120 m, 150 m, 200 m, 300 m, 500 m.
• Bending Radius: 20× cable diameter during installation; 15× cable diameter under static no-load state.
• Temperature Range: −10 °C to +50 °C for installation; −40 °C to +70 °C for long-term operation and storage.
• Key Advantages: Fully immune to lightning strikes and electromagnetic interference; 30–50% lighter than double-sheath ADSS cables, reducing tower load and installation difficulty.
• Single Outer Sheath: 1.5–2.0 mm thick UV-stabilized black HDPE jacket.

If you want to display your own brand logo on the goods — such as on the cable, package bag, label, or anywhere else — that is no problem at all. Our OEM and ODM service is always ready to accommodate your requirements.

Custom branding options for cable jacket, packaging and labels
