120M Span Single Sheath OM2 Multimode ADSS Fiber Optic Cable for All-Dielectric Self-Supporting Aerial Networks

The Single Sheath Span 120M OM2 ADSS Aerial Optic Fiber Cable is a fully non-metallic, all-dielectric, self-supporting, central loose tube multimode fiber cable designed for aerial installation. It combines three core defining features: a single-layer black PE outer jacket with aramid yarn strength member, OM2 50/125μm multimode fibers, and a rated maximum installation span of 120 meters between supporting poles.

The cable supports fiber counts ranging from 6 to 144 cores and uses standard Multimode OM2 50/125 optical fiber. Its non-metallic full-dielectric design makes it cost-effective and lightweight for FTTx networking solutions. It is fully compliant with IEEE 1222, IEC 60794-1 and YD/T 901-2 industry standards.

1. 10kV–35kV distribution network communication
2. Campus and industrial park cross-building networking
3. OPGW station in/out transition
4. Smart city surveillance backhaul
5. FTTH last-mile access in suburban and rural areas
6. Critical infrastructure perimeter sensing
7. Urban and rural FTTH last-mile access
8. Harsh-environment short-span deployment

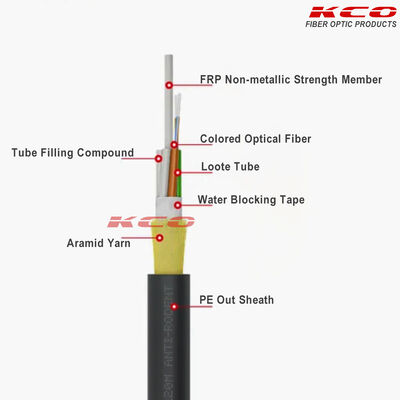

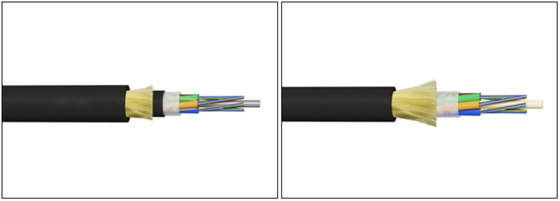

• The 250μm Multimode OM2 50/125 colored optical fibers are inserted into high-modulus PBT loose tubes filled with water-blocking ointment.
• A central non-metallic strength member (FRP, Fiber Reinforced Plastic) provides primary tensile support.
• Two layers of high-strength aramid yarn are evenly twisted around the cable core to further enhance tensile performance.
• A single layer of PE outer sheath is extruded over the aramid yarn, with pre-embedded ripcords for easy mid-span access.

• High Tension: Rated Tensile Strength (RTS) ranges from 10 kN to 120 kN, with maximum everyday operating tension kept below 1/3 of RTS to ensure fiber strain remains under 0.05%.
• Span Range: 50 m, 80 m, 100 m, 120 m, 150 m, 200 m, 300 m, 500 m.
• Bending Radius: 20× cable diameter during installation; 15× cable diameter under static no-load state.
• Temperature Range: −10 °C to +50 °C for installation; −40 °C to +70 °C for long-term operation and storage.
• Key Advantages: Fully immune to lightning strikes and electromagnetic interference; 30–50% lighter than double-sheath ADSS cables, reducing tower load and installation difficulty.
• Single Outer Sheath: 1.5–2.0 mm thick UV-stabilized black HDPE jacket.

If you want to display your own brand logo on the goods — such as on the cable, package bag, label, or anywhere else — that is no problem at all. Our OEM and ODM service is always ready to accommodate your requirements.

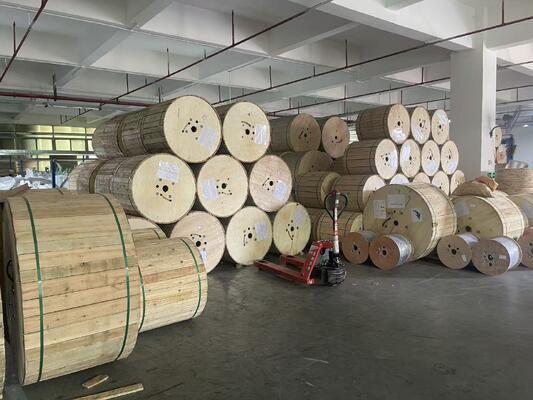

According to standard export packing: carton box, wooden box, or wooden pallet.

• International express such as UPS, TNT, DHL, etc.
• International air: CA, AA, EA, etc.
• By sea
