FTTx Fiber Optic Tools Handheld Optical Power Meter , Laser Source Power Meter

  • FTTx Fiber Optic Tools Handheld Optical Power Meter , Laser Source Power Meter
  • FTTx Fiber Optic Tools Handheld Optical Power Meter , Laser Source Power Meter
  • FTTx Fiber Optic Tools Handheld Optical Power Meter , Laser Source Power Meter
  • FTTx Fiber Optic Tools Handheld Optical Power Meter , Laser Source Power Meter
  • FTTx Fiber Optic Tools Handheld Optical Power Meter , Laser Source Power Meter
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number RY3205
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details soft caring case, carton box
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Light Source Power 10mW Wave Length 850, 980, 1300, 1310, 1490, 1550 Um
Light Source Length 10km Connector FC/UPC
Measuring Range -70~+10/ -50~+26 Resolution 0.01dB
High Light

fiber optic accessories

,

fiber optic tools and equipment
Leave a Message
Product Description

FTTx Fiber Optic Tools Handheld Optical Power Meter , Laser Source Power Meter





We can supply brand new of fiber optic power meter and also relation fiber optic test equipment such as fiber optical light source, Laser pen, ODTR, fiber optic fusion splicer machine, etc. We also can supply OEM, ODM servicer for fiber optical polisher, can help you paste your own Brand LOGO on the machine and package. Please contact with us by phone or by e-mail to get more informations about them.



RY3205 Optical Power Meter Descriptions:

RY3205 series handheld fiber optical multimeter, integrated with laser light or red light and precise optical power meter, was the scene of the carry two instrument to test the inconvenience for the installation, operation and maintenance of optical fiber network engineering staff to provide more accurate, durable, efficient testing tools.

RY3205 PON Optical Power Meter aims at the FTTx application and maintenance which not only can be used to test and estimate the PON signals at the same time, but also the normal power measurement, It is able to concurrently measure the optical power values of voice, data and video signals. It is a useful, essential and ideal tool for the construction and maintenance of the PON projects.



RY3205 Optical Power Meter features:

User calibration function.

LC/FC/SC/ST and other common interface.

Can set automatic shutdown function.

High stability mode laser output and wavelength single (multi -) the CW mode or modulation mode.

Color LCD display.

Using rechargeable lithium batteries, reduce the user cost.

Data can be spread to the PC via RS232 or USB.

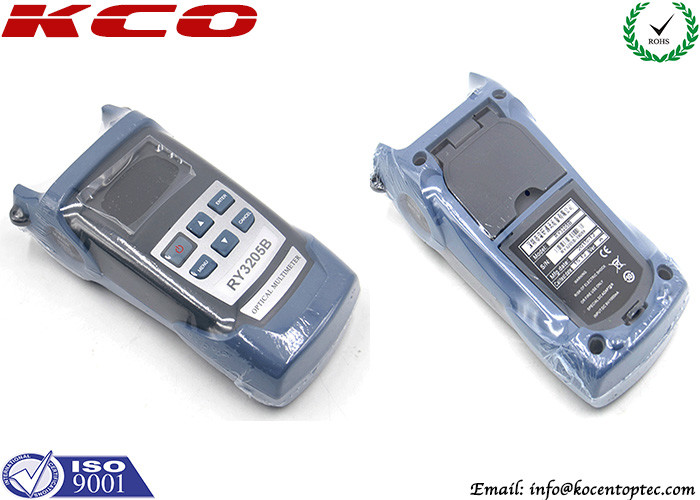

RY3205 fiber optical power meter product pictures:





FTTx Fiber Optic Tools Handheld Optical Power Meter , Laser Source Power Meter 0





RY3205 fiber optical power meter Specifications:



Model GW3205
Measuring range -70～+10/-50～+26
Probe type InGaAs
Uncertainty (dB) ±0.2(5%)
Standard wavelength (nm) 850,980,1300,1310,1490,1550
Display resolution 0.01
Light source Wavelength 1310/1550(optional)
Light source Output power 10mw
Display 2.4TFT color display, LED back light
Optical Interface FC/PC
Measurement Unit dB/dBm/ xW
Resolution(dB) 0.01
Power Supply Internal Battery
Operation Temperature -10°C~60°C
Storage temperature -25°C~70°C
Dimension(mm) 172x82x33
Weight(g) 280g
Battery continuously working time No less than 15 hours
Automatic power-off After 10 minutes



Package components list:

1. RY3205 fiber optical power meter,

2. User Manual,

3. Cotton swabs,

4. AC power adapter,

5. Soft carrying case.



RY3205 fiber optical power meter packing ways:

FTTx Fiber Optic Tools Handheld Optical Power Meter , Laser Source Power Meter 1



OEM Service: Label and package customized is always ready.



Kocent Optec Limited is one of the largest and best fiber optic power meter, fiber optic light source equipment manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized fiber optical power meter in stock with our factory. Also, free sample is also available if necessary.
