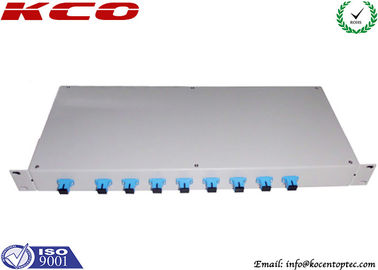

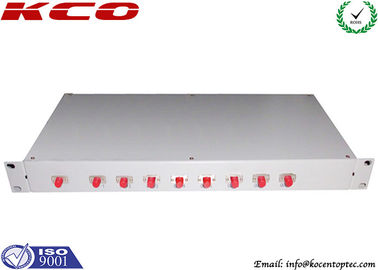

1:8 Fiber Optic Cable Splitter PON Rack Mount Patch Panel 1 to 8 Port SC APC UPC FC UPC

  • 1:8 Fiber Optic Cable Splitter PON Rack Mount Patch Panel 1 to 8 Port SC APC UPC FC UPC
  • 1:8 Fiber Optic Cable Splitter PON Rack Mount Patch Panel 1 to 8 Port SC APC UPC FC UPC
  • 1:8 Fiber Optic Cable Splitter PON Rack Mount Patch Panel 1 to 8 Port SC APC UPC FC UPC
  • 1:8 Fiber Optic Cable Splitter PON Rack Mount Patch Panel 1 to 8 Port SC APC UPC FC UPC
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number PLC-RM-1x8-SCU
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type 1U Rack Mount Type IL 10.2 DB
Port 1 To 8 Connector SC/UPC Or Customized
Wave Length 1260~1650 Cable Length 1.0m
Highlight

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description
1:8 Fiber Optic Cable Splitter PON Rack Mount Patch Panel 1 to 8 Port SC APC UPC FC UPC
Product Overview
1.0 m Fiber Optic Cable Splitter PON Rack Mount patch panel 1 to 8 Port. This rack mount type PLC fiber splitter is available with SC/UPC, SC/APC connectors or customized as per customer requirements.
Applications
  • Optical Signal Distribution
  • Data Communications
  • LAN and CATV System
  • FTTX Deployment
  • FTTH Network
  • Passive Optical Networks (PON)
  • Outside Plant Equipment
  • DWDM and CWDM Systems
Product Description
Fiber optic PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. Based on planar lightwave circuit technology, they provide a low-cost light distribution solution with small form factor and high reliability. We offer various 1×N and 2×N PLC splitters, including 1x2 to 1x64 and 2x2 to 2x64 1U Rack Mount configurations, all featuring superior optical performance, high stability, and reliability to meet diverse application requirements.
The 1U Rack Mount type adopts a standard 1U frame or can be customized according to actual requirements. It can be installed in ODF canonically and integrates seamlessly with the appearance of box/cabinet body via canonical fiber distribution. Supports SC, LC, FC & ST connectors.
Key Features
  • Configuration Type: 1x4, SC/APC connector or customized
  • Excellent channel-to-channel uniformity
  • High Polarization Extinction Ratio
  • Low Input Polarization Sensitivity, Insertion loss ≤13.9dB, PDL ≤0.3dB
  • Compact design with custom and rugged packaging options
  • Operating temperature: -40°C to +85°C
  • Operating bandwidth: 1260~1650nm
  • Meets Telcordia GR-1209/1221 Qualified standards

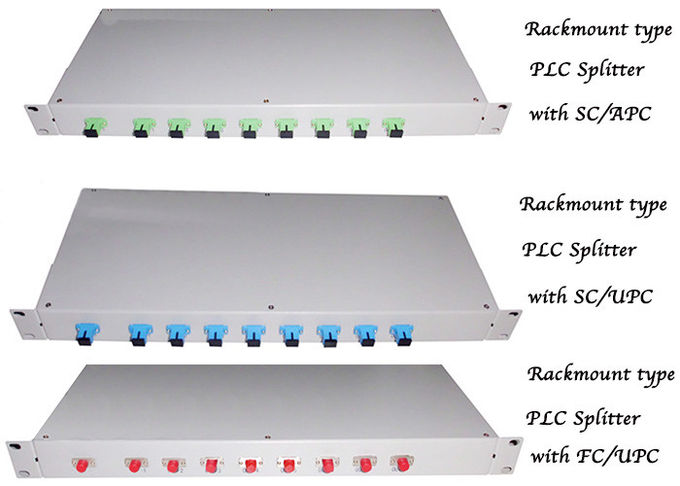

Product Image
1:8 Fiber Optic Cable Splitter PON Rack Mount Patch Panel 1 to 8 Port SC APC UPC FC UPC 0
Technical Specifications
General Specifications:
Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
1×N Splitter Performance:
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
2×N Splitter Performance:
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1
OEM/ODM Services
We offer comprehensive OEM and ODM services. You can display your own brand LOGO on the goods including cables, packaging bags, labels, or any other location as required.
Packaging Options
  • Carton box
  • Wooden box
  • Wooden pallet
Shipping Methods
  • International express: UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • By sea
