Mutil Mode Simplex SC/PC Fiber Connector Push Pull 0.9mm - 3.0mm Diameter

Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number SC/APC, SC/UPC, SC/PC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type SC/PC Color Beige
Insertion Loss 0.2dB Return Loss 55dB
Diameter 0.9mm, 2.0mm, 3.0mm Mode Single Mode, Multi Mode, Mono Mode
High Light

fibre optics connectors

,

optical fibre cable connectors

Leave a Message
Product Description

Mutil Mode Simplex SC/PC Fiber Connector Push Pull 0.9mm - 3.0mm Diameter





Fiber Optic Connectors Descriptions:

The SC is a non-optical disconnect connector with a 2.5mm pre-radiused zirconia ferrule. Available in simplex and duplex styles, this connector features a push-pull connection design for quick patching of cables into rack or wall mounts. Utilize the reusable duplex holding clip to create duplex connections.



Fiber Optic Connectors Features:

- High quality ceramic components and Material.
- End-face geometry requirement complies to Telcordia GR-326-CORE.
- 100% tested on optical performance (Insertion Loss & Return Loss).
- Simplex, duplex and higher core densities.
- 900 micron, 2mm, 3mm cable applications.



Fiber Optic Connectors Applications:

- Telecommunication Network.

- Local Area Network(LAN).

- CATV.

- FTTH.

- Testing Equipment.



Fiber Optic Connectors Product Pictures:

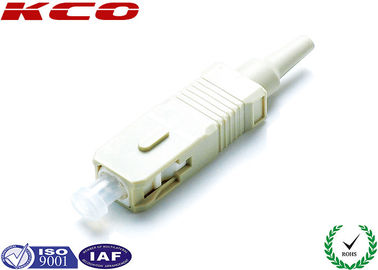

Mutil Mode Simplex SC/PC Fiber Connector Push Pull 0.9mm - 3.0mm Diameter 0

Mutil Mode Simplex SC/PC Fiber Connector Push Pull 0.9mm - 3.0mm Diameter 1



Details about Fiber Optic Connectors:

Connector Ferrule Ceramic
Alignment Sleeve Ceramic
Connector Body UL 94V-0 rated Thermoplastic to meet standard; amiability ratings
Crimp Insert/Crimp Tube Nickel-Plated Brass/Thermoplastic Elastomer Polymer
Dust Cap Nylon or PVC
Strain Relief Boot Flame retardant (UL-Rated 94-V0) polymer
Connector Style SC, FC, ST, LC, MTRJ, etc



Fiber Optic Connectors Specifications:


Item
Single mode Multimode
PC UPC APC 62.5/125 50/125 50/125 10G
Insert Loss/connector
(single Fiber)
0.3dB Max. (0.2dB typ.) 0.3dB Max. (0.2dB typ.)
Return Loss ≥45 dB ≥50 dB ≥60 dB N.A
Insert Loss/MTRJ Connector 0.5dB Max. (0.45dB typ.) 0.5dB Max. (0.45dB typ.)
Pull Strength ≥98N ≥98N





Ordering Information:
1, Connector type : SC, LC, FC, ST, MTRJ, etc
2, Polish: UPC, PC, APC
3, Mode: Single mode, Multimode
4, Fiber Count: Simplex or Duplex
5, Connector boot diameter: 0.9mm, 2.0mm or 3.0mm



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
