|Connector 1:||MPO, MTP||Connector 2:||LC/UPC, LC/APC Or Customized|
|Color:||Black, Beige||Length:||0.5m, 1.0m, 1.5m, Customized|

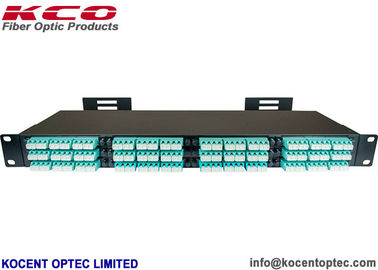

144 Core 1U MPO Fiber Optic Patch Panel / MPO LC Fiber Optic Fanout Patch Cable Rack Mount
- Kocent Optec Limited is one of lead pass fiber optic product supplier in China.
- Kocent Optec Limited with more than 10 years of experiences in fiber optic industry, we provide OEM and ODM service for all type of MPO/MTP rack mountable patch panel.
- With full set of production line for steel tape production (to make all type of ODF) and production line for MPO patch cord, we supply the MPO/MTP patch panel with full loaded of patch cable and adapter.
- All installation charge is free.
|Fiber Capacity of panel||12-144 core(12 24 48 port usually)|
|Panel Connector||SC LC ST FC|
|Material||Cold Rolled Steel or Aluminum|
|Thickness||1.0 1.2 mm|
|Accessories||Cable ties, mounting ear screws, and spiral wrap tube|
SM: G652D, G657A1, G657A2
MM: OM1, OM2, OM3, OM4, OM5
- Connector 1: MPO, MTP fanout patch cable
- Connector 2: LC, FC, ST, SC or customized 8 to 24 strands cable
- Cable length: 0.3m, 0.5m, 1.0m, 1.5m or customized

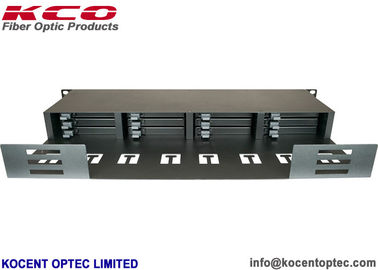

- Patch panel size: 480x245x1U(mm)
- Capacity: 144 cores
- Maximum upload with 12 pcs of face plate
- 19" standard size , easy install
- Light weight, strong strength, good anti-shocking and dustproof
- Well cable management, cable can be distinguished easily
- Roomy space ensure fiber bent ratio
- Provides a complete system solution for connectivity
- Provide higher patch field density in fewer rack units saving valuable space
- Assures flexibility and ease of network deployment and moves, adds, and changes

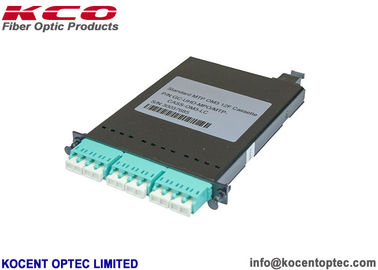

MTP/MPO Connector Specifications:
|Type||Single Mode||Single Mode||Multi Mode|
|(APC Polish)||(UPC Polish)||(PC Polish)|
|Fiber Count||8,12,24 etc.||8,12,24 etc.||8,12,24 etc.|
|Fiber Type||G652D,G657A1 etc.||G652D,G657A1 etc.||OM1,OM2,OM3 etc.|
|Max. Insertion Loss||Elite||Standard||Elite||Standard||Elite||Standard|
|Low Loss||Low Loss||Low Loss|
|≤0.35 dB||≤0.75dB||≤0.35 dB||≤0.75dB||≤0.35 dB||≤0.60dB|
|Return Loss||≥60 dB||≥60 dB||NA|
|Durability||≥500 times||≥500 times||≥500 times|
|Insert-pull test||1000 times＜0.5 dB|
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
