Professional LC MM 5 dB Attenuator Fiber Optic with High Realibility

China Professional LC MM 5 dB Attenuator Fiber Optic with High Realibility supplier
Professional LC MM 5 dB Attenuator Fiber Optic with High Realibility supplier Professional LC MM 5 dB Attenuator Fiber Optic with High Realibility supplier Professional LC MM 5 dB Attenuator Fiber Optic with High Realibility supplier

Large Image :  Professional LC MM 5 dB Attenuator Fiber Optic with High Realibility

Product Details:

Place of Origin: Guangdong, China
Brand Name: KCO, Kocent Optec Limited
Certification: ISO9001, RoHS
Model Number: LC/PC, LC/UPC

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PE bag, plastic module, carton box, wooden pallet
Delivery Time: 3~5 days after get payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 50,000 pcs/month
Contact Now
Detailed Product Description
Connector Type: LC/PC, LC/UPC Attenuator Range: 1dB~30dB
Attenuator Type: Fix Type, Adapter Type, Male To Female Type Body Material: Plastic, Metal
Wave Length: 1310, 1490, 1550, 1620nm Return Loss: 55dB For UPC, 65db For APC
Polarization Dependent Loss: Less Than 0.1dB Maximum Optical Input Power: 1000mW

Professional LC MM 5 dB Attenuator Fiber Optic with High Realibility





Quick detail:

- Model Number: LC

- Model Name: Male to female

- Material: metal, plastic

- Dusty cap color: blue, beige

- Attenuation range: 0-30 dB



Features:

- High precision.

- Good stability.

- Small size and bulk.

- Easy to operate.

- Based on IEC/Telcordia Bell GR-326-Core Tested

- Metal ion doped fiber

- High-power light source durability

- Wavelength independence

- Attenuation levels ranging from 1dB to 25dB

- 1310nm, 1550nm and 1310/1550nm dual wave lengths



Applications:

- Erbium Doped Fiber Amplifiers (EDFA)

- Dense Wave Division Multiplexers (DWDM)

- Overpowered fiber optic systems

- Fiber optic communication systems.

- Fiber optic CATV

- Fiber optic test



Kocent Optec Limited can supply all attenuation grade of fiber optic attenuator such as 1dB, 2dB, 3dB, 5dB, 7dB, 10dB, 15dB, 20dB, 25dB, etc. The fiber optic attenuator can be in fix type or adjustment type. For fix type, we can supply adapter type and male convert into female type. For adjustment type, we can supply in female to female type and online type. Adjustment type fiber optic attenuator can be adjust any attnuation grade as you need.



Fiber optic attenuator descriptions:

Fiber optic attenuator is a device used to reduce the power level of an optical signal, either in free space or in an optical fiber. The basic types of optical attenuators are fixed, step-wise variable, and continuously variable. Fixed optical attenuators used in fiber optic systems may use a variety of principles for their functioning. Preferred attenuators use either doped fibers, or mis-aligned splices, since both of these are reliable and inexpensive. Inline style attenuators are incorporated into patch cables. The alternative build out style attenuator is a small male-female adapter that can be added on to other cables.

The fiber optic attenuators can be used on a more permanent basis in order to match the signal with a transmitter and receiver's specific power levels. Commonly used attenuation range is from 1dB to 30dB.

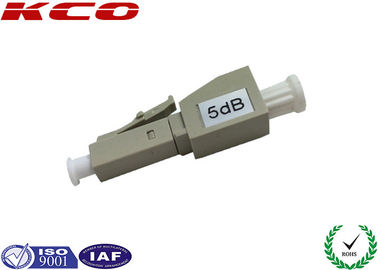

Product pictures:

Professional LC MM 5 dB Attenuator Fiber Optic with High Realibility



Specifications:

Return Loss UPC >55dB
APC >65dB
Attenuation Accuracy 1 ~ 7 dB ±0.5dB
8 ~ 12 dB ±0.7dB
13 ~ 17 dB ±1.0dB
18 ~ 25 dB ±1.3dB
Maximum Optical Input Power 1000mW
Polarization Dependent Loss ≤0.1dB
Operating Temperature Range -40°C to 75°C
Storage Temperature Range -40°C to 85°C
Humidity 95%RH
Attenuation Value 1dB ~ 30dB
Operating Wavelength 1240~1620nm (Dual 1310/1550nm)
