Plastic Fiber Optic Variable Attenuator E2K UPC Male To Female 1dB 3dB 5dB 7dB 10dB

China Plastic Fiber Optic Variable Attenuator E2K UPC Male To Female 1dB 3dB 5dB 7dB 10dB supplier
Plastic Fiber Optic Variable Attenuator E2K UPC Male To Female 1dB 3dB 5dB 7dB 10dB supplier Plastic Fiber Optic Variable Attenuator E2K UPC Male To Female 1dB 3dB 5dB 7dB 10dB supplier Plastic Fiber Optic Variable Attenuator E2K UPC Male To Female 1dB 3dB 5dB 7dB 10dB supplier

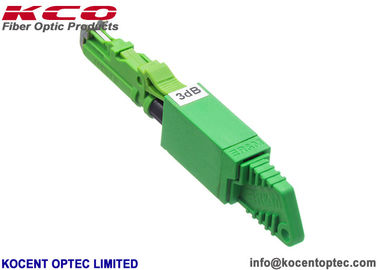

Large Image :  Plastic Fiber Optic Variable Attenuator E2K UPC Male To Female 1dB 3dB 5dB 7dB 10dB

Product Details:

Place of Origin: Guangdong, China
Brand Name: KCO, Kocent Optec Limited
Certification: ISO9001, RoHS
Model Number: KCO-E2K-attenuator-**dB

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PE bag, plastic module, carton box, wooden pallet
Delivery Time: 3~5 days after get payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 50,000 pcs/month
Contact Now
Detailed Product Description
Connector Type: E2000 Attenuator Range: 1dB~30dB
Attenuator Type: Male To Female Type Body Material: Plastic
Wave Length: 1310, 1490, 1550, 1620nm Return Loss: 55dB For UPC, 65db For APC
Polarization Dependent Loss: Less Than 0.1dB P/N: KCO-E2K-attenuator-**dB



E 2000 APC Attenuator / E2K UPC Male to Female Fiber Optic Attenuator 1dB 3dB 5dB 7dB 10dB



Introduce:

- E2000 fiber optic attenuator includes E2000 single mode female to female fiber optic attenuator from 1dB to 30dB

- Use to connect E2000 fiber optic pigtail or patch cables to reduce the power of signal at a certain attenuation.

- E2000 fiber optic attenuator is a passive device used to reduce the amplitude of a light signal without significantly changing the wave form itself.

- This is often a requirement in Dense Wave Division Multiplexing(DWDM) and Erbium Doped Fiber Amplifier (EDFA) applications where the receiver can’t accept the signal generated from a high-power light source.


Characteristics:
- Metal ion doped fiber
- High-power light source durability
- Wavelength independence
- Attenuation levels ranging from 1dB to 30dB, with standard and premium tolerances, plus custom configurations.

Specification:

Parameter Value Unit
Operating Wavelength 1310/1550 nm
Tolerance for 1~5 dB Attenuation ± 0.5 dB
Tolerance for 6~30 dB Attenuation ± 10 %
Return Loss > 65 dB
Operating Temperature -40 to +80 C
Polarization Dependent Loss ≤ 0.1 dB
Mating Durability ≥ 1000 cycle
Transfer Mode SM
Connector Gender Fiexd Male to Female


Applications:

- High Stability and High Durability
- Compact Housing Dimension
- RoHS Compliant

- Erbium Doped Fiber Amplifiers (EDFA)

- Dense Wave Division Multiplexers (DWDM)

- Overpowered fiber optic systems

- Fiber optic communication systems.

- Fiber optic CATV

- Fiber optic test



Features:

- High precision.

- Good stability.

- Small size and bulk.

- Easy to operate.

- Data Center Infrastructure

- Storage Area Network and Fiber Channel

- Based on IEC/Telcordia Bell GR-326-Core Tested

- High-power light source durability

- Wavelength independence

- Attenuation levels ranging from 1dB to 25dB

- 1310nm, 1550nm and 1310/1550nm dual wave lengths









Relation products:



Plastic Fiber Optic Variable Attenuator E2K UPC Male To Female 1dB 3dB 5dB 7dB 10dB



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
