MPO-12 Single Mode Breakout Fiber Optic Cable MPO/APC To LC/UPC OS2 G652D 2.0mm PVC

  • MPO-12 Single Mode Breakout Fiber Optic Cable MPO/APC To LC/UPC OS2 G652D 2.0mm PVC
  • MPO-12 Single Mode Breakout Fiber Optic Cable MPO/APC To LC/UPC OS2 G652D 2.0mm PVC
  • MPO-12 Single Mode Breakout Fiber Optic Cable MPO/APC To LC/UPC OS2 G652D 2.0mm PVC
  • MPO-12 Single Mode Breakout Fiber Optic Cable MPO/APC To LC/UPC OS2 G652D 2.0mm PVC
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number MPO-12LC-fanout-2.0mm-xm
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 50,000pcs/month
Product Details
Connector 1 MPO/APC Connector 2 LC/UPC
Fiber 12 Fibers Insertion Loss 0.35dB
Return Loss 60dB Wave Length 1260~1650nm
Highlight

qsfp breakout cable

,

breakout fiber optic cable
Leave a Message
Product Description
MPO-12 Single Mode Breakout Fiber Optic Cable MPO/APC To LC/UPC OS2 G652D 2.0mm PVC
Descriptions:
  • Complies with IEC, Telcordia GR-326-CORE standard
  • Low insertion loss and high return loss
  • PC/UPC/APC polishing
  • Fanout diameter: 0.9mm, 2.0mm, and 3.0mm
  • Fanout Length: 0.3m, 0.5m
  • Fiber patch cord of the Single or multi mode is available
  • Simplex or duplex is available
  • PVC or LSZH fiber optical cable is available
  • Excellent changeability and repeatability
  • Tensile strength: 10N
  • Operating temperature range: -40°C to 80°C
  • Storage temperature range: -40°C to 80°C
  • Color of fiber optic cable:
    • Singlemode: Yellow
    • Multimode OM1, OM2: Orange
    • Multimode OM3, Om4: Aqua
    • Multimode OM4: Pink
    • Multimode OM5: Green
Features:
  • Single mode and multi mode (flat) APC (catercorner 8 degree angled) are available
  • High fiber density (maximum 24 fibers for Multimode)
  • Fiber in single connector: 4, 8, 12, 24
  • Insert/Pull latching connector
  • High reflection loss with APC
  • Comply with Telcordia GR-1435-CORE specification and Rosh standard
Applications:
  • FTTH, CATV, LAN, MAN, WAN, Test & Measurement
  • Video transmission, Data transmission
  • Active Device Termination
  • Premise Installations
  • Telecommunication and Data processing Networks
  • Industrial, medical &
  • Systems Integration for Long Haul, Metro and Access Network
Specifications:
Type Single Mode Single Mode Multi Mode

(APC Polish) (UPC Polish) (PC Polish)
Fiber Count 8,12,24 etc. 8,12,24 etc. 8,12,24 etc.
Fiber Type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
Max. Insertion Loss Elite Standard Elite Standard Elite Standard

Low Loss
Low Loss
Low Loss

≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.60dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃~+80℃ -40℃~+80℃ -40℃~+80℃
Test Wavelength 1310nm 1310nm 1310nm
Insert-pull test 1000 times＜0.5 dB
Interchange ＜0.5 dB
Anti-tensile force 15kgf
Product Construction:

MPO-12 Single Mode Breakout Fiber Optic Cable MPO/APC To LC/UPC OS2 G652D 2.0mm PVC 0

  • A: MPO connectot
  • L: Total length
  • L1: Fanout length
  • B: Connector ( FC, LC, ST, SC, ...)
Product Photo:

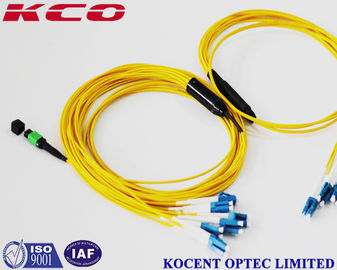

MPO-12 Single Mode Breakout Fiber Optic Cable MPO/APC To LC/UPC OS2 G652D 2.0mm PVC 1

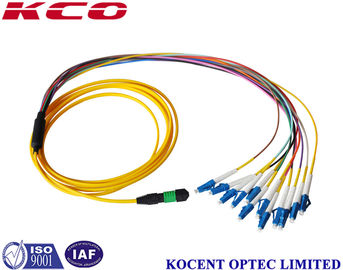

MPO-12 Single Mode Breakout Fiber Optic Cable MPO/APC To LC/UPC OS2 G652D 2.0mm PVC 2

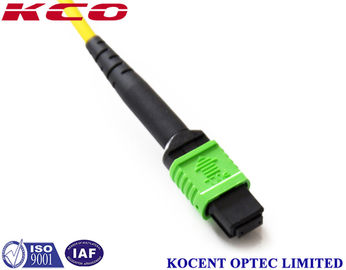

MPO-12 Single Mode Breakout Fiber Optic Cable MPO/APC To LC/UPC OS2 G652D 2.0mm PVC 3

Ordering Informations:

MPO/PC–MPO/PC-SM-12CORE–2M-LSZH

① ② ③ ④ ⑤ ⑥

  • ①Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
  • ②Ferrule End-face: PC, UPC, APC
  • ③Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
  • ④Fiber Quantity: 4 core, 8 core, 12 core, 24 core
  • ⑤Cable Length: 1, 2, 3 meter or customized
  • ⑥ Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:
  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea
