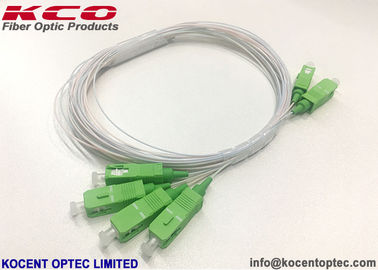

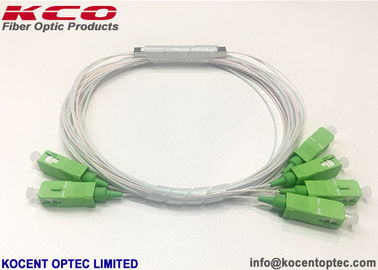

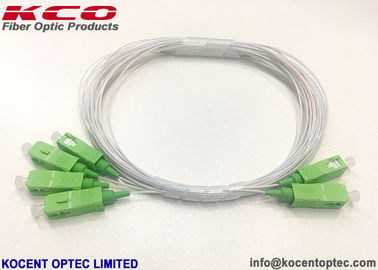

Blockless 2x4 Fiber Optic Splitter SC/APC Green Connector 0.9mm 2.0m Low IL

Blockless 2x4 Fiber Optic Splitter SC/APC Green Connector 0.9mm 2.0m Low IL
Blockless 2x4 Fiber Optic Splitter SC/APC Green Connector 0.9mm 2.0m Low IL Blockless 2x4 Fiber Optic Splitter SC/APC Green Connector 0.9mm 2.0m Low IL Blockless 2x4 Fiber Optic Splitter SC/APC Green Connector 0.9mm 2.0m Low IL

Large Image :  Blockless 2x4 Fiber Optic Splitter SC/APC Green Connector 0.9mm 2.0m Low IL

Product Details:

Place of Origin: Guangdong, China
Brand Name: KCO, Kocent Optec Limited
Certification: ISO9001, RoHS
Model Number: KCO-Mini-2*4-SCA

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton box, wooden pallet
Delivery Time: 2~5 days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 20,000 set/ month
Detailed Product Description
Package Type: Mini Blockless Tube Type Splitter Type: 2*4 2x4
Split Way: 2 Way Input & 4 Way Output Connector: SC/APC, LC/APC
P/N: KCO-Mini-2*4-SCA MOQ: 1pc
High Light:

PLC Optical Splitter

,

ABS Box PLC Splitter



Mini Blockless 2x4 Optic PLC Splitter Fibra Optica Splitter SC/APC Green Connector 0.9mm 2.0m



Descriptions:

Fiber optic PLC splitter can be categorized by the PLC splitter chip they use, meaning there are 1xN and 2xN PLC splitters, such as 1x4, 1x8, 1x16, 2x32, 2x64, etc. Installers can choose different input and output numbers depending on subscriber conditions or cable length.

PLC (​Planar lightwave circuit) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

The blockless splitter features small size, which is an intermediate choice between volume miniaturization and reliable fiber protection. It is suitable for installation in your system design and manufacturing.

1 x N PLC Splitter features guaranteed performance specifications and high reliability that surpass Telcordia requirements and is tailored for different applications and markets.

- 2x N Planar Light wave Circuit (PLC) Splitters are based on the Plasma Chemical Vapor Deposition (P-CVD) technology and its patented fabrication process for providing stable optical character.



Advantages of PLC Splitter:

- Suitable for multiple operating wavelengths (1260nm – 1650nm); unstinted.
- Equal splitter ratios for all branches.
- Compact configuration; smaller size; small occupation space.
- Good stability across all ratios.
- High quality; low failure rate.



PLC Splitter Construction:



Blockless 2x4 Fiber Optic Splitter SC/APC Green Connector 0.9mm 2.0m Low IL 0





Applications:
- FTTx (FTTA, FTTH, FTTC, FTTB, FTTO, ...),
- EPON, GPON,
- LAN,
- WAN,
- Metro,
- Fiber optic test, ...



Specifications:

Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1



Product photos:



Blockless 2x4 Fiber Optic Splitter SC/APC Green Connector 0.9mm 2.0m Low IL 1







Blockless 2x4 Fiber Optic Splitter SC/APC Green Connector 0.9mm 2.0m Low IL 2





Relation products:



Blockless 2x4 Fiber Optic Splitter SC/APC Green Connector 0.9mm 2.0m Low IL 3



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Blockless 2x4 Fiber Optic Splitter SC/APC Green Connector 0.9mm 2.0m Low IL 4



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
