16 Core MPO Patch Cable LC FC ST SC Optical Fiber Connector For Data Center

Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number MPO-16fo
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Connector MPO Fiber SM, OM3, OM4, OM5
Cover PVC, LSZH Insertion Loss 0.35dB
Return Loss 55dB Diameter 2.0mm, 3.0mm
Length 1, 3, 5, 7, 10, 15, 20, ... Fiber Count 8fibers, 12 Fibers, 24 Fibers
Color Pink, Violet, Customized Fanout Length 30cm
High Light

breakout fiber optic cable


fiber optic breakout cable

Leave a Message
Product Description


MPO OM4 Patch Cord LC SC Fiber Optic Connector 8core 12core 24core Pink Violet LSZH



- MTP/MPO Patch Cable with Push/Pull Tabs

- 16/32 Fiber 40GbE 40GBASE-SR4

- OM3, OM4 Plenum-Rated Aqua
- Allows high-density connections between network equipment in telecommunication rooms and data centers
- Hi-density MTP/MPO 12-fiber connectors for reduced cabling
- OM3, OM4 rated 50/125 Multimode
- Push/pull tab connectors install/remove with one hand
- Supports to 40GbE speeds

- Issue 2 which requires performance characterization and testing at 1310nm, 1490nm, 1550nm and 1625nm. Four wavelength testing ensures that your jumpers will support the demanding requirements for 10G/40G/100G transmission and next generation PON deployment.


- Kocent Optec Limited a leading company in developing and manufacturing advanced fiber optic products, mainly offer CPRI waterproof jumper, MPO/MTP patch cord, standard fiber optic patch cord, fast connector, PLC Splitter, fiber optic box, and cable.

- Our MPO/MTP patch cable are available in Single mode and Multimode ( OM1, OM2, OM3, OM4, and OM5).

- Connector can be MPO/MTP and other type of connector such as LC, FC, ST, SC, E2000, MU, DIN, MTRJ, ...

- We supply full set of MODF and MPO rack mount patch panel for Data Center. And also supply a series of MPO Patch cable that come with outdoor water-proof connector such as: ODVA, Fullaxs, PDC, PDLC, H connector, ....

- We provide OEM/ODM service with all type length of MPO/MTP patch cable.

- The cable length belongs to a custom product.

- Contact with our sales team to get more infomation about these products



- Low IL

- High RL

- LSZH outsheath

- Available in SM, OM3, OM4

- Customized length




- Metro,

- Test Equipment,

- Premise installations,

- Active device termination,

- Passive fiber optic system,

- Data Processing networks,

- Telecommunication networks,

- Local Area Networks(LANs),

- Wide Area Networks(WANs),



About OM4 fiber:
- OM4 is laser-optimized 50um fiber having 4.7GHz*km EMB bandwidth designed for 10 Gb/s, 40 Gb/s, and 100 Gb/s transmission.
- OM4 fiber has been on the market since 2005, sold as premium OM3 or OM3 fiber. The OM4 cable designation standardizes the nomenclature across all manufacturers so that the customer has a clearer idea of the product that they are buying.
- OM4 fiber is completely backwards compatible with OM3 fiber and shares the same distinctive aqua jacket.
- OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig/second link distances of up to 550 Meters (compared to 300M with OM3) and offers an Effective Modal Bandwidth (EMB) of 4700 MHz-km.


Differents between OM3 and OM4:

- OM3 and OM4 cables are both types of graded-index multimode fiber optic cable, specified under IEEE and TIA/EIA standards.

- OM3 and OM4 are laser-optimized multimode fiber (LOMMF) cables, specially designed to work with the high speed networks we have today.

- While they have very similar constructions, OM4 is able to perform over longer distances due to its 4700 megahertz bandwidth versus the 2500 megahertz bandwidth of OM3 cabling. OM4 is one of the fastest fiber optic cables available, and is such new technology that the standard was ratified by the TIA/EIA in August 2009; the IEEE 802.3ba 40G/100G Ethernet standard covering OM3 and OM4 was ratified as recently as June 2010.

- Not only do they exhibit great performance, but OM3 and OM4 multimode fiber optic cables are cost-effective fiber optic cabling options as well.

- By using these top of the line fiber optic cables, the secured data center is not only performing to its fullest capabilities now, but should meet the military’s high performance standards for years to come.


Single Mode Single Mode Multi Mode
(APC Polish) (UPC Polish) (PC Polish)
Fiber Count 8,12,24 etc. 8,12,24 etc. 8,12,24 etc.
Fiber Type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
Maximum Insertion Loss Elite Standard Elite Standard Elite Standard
Low Loss Low Loss Low Loss
≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.60dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃ ~ +80℃ -40℃ ~ +80℃ -40℃ ~ +80℃
Test Wavelength 1310nm 1310nm 1310nm


Products photo:

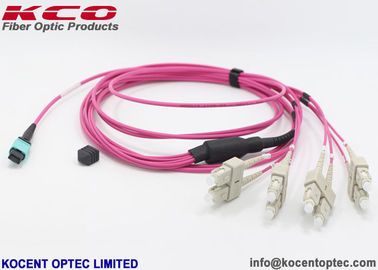

16 Core MPO Patch Cable LC FC ST SC Optical Fiber Connector For Data Center 0


Relation products:

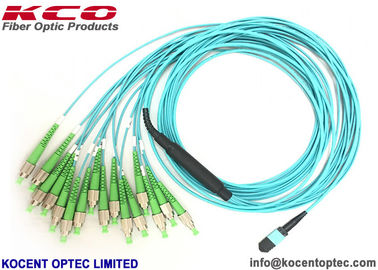

16 Core MPO Patch Cable LC FC ST SC Optical Fiber Connector For Data Center 1



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

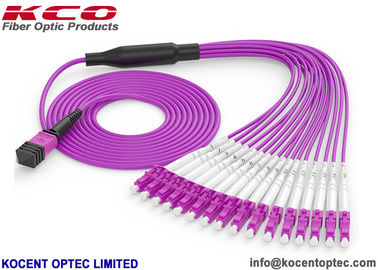

16 Core MPO Patch Cable LC FC ST SC Optical Fiber Connector For Data Center 2


- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.


- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
