5G FTTH Outdoor 5.0mm 1core LSZH Fiber Optic Patch Cord for FTTA and Data Center Applications

  • 5G FTTH Outdoor 5.0mm 1core LSZH Fiber Optic Patch Cord for FTTA and Data Center Applications
  • 5G FTTH Outdoor 5.0mm 1core LSZH Fiber Optic Patch Cord for FTTA and Data Center Applications
  • 5G FTTH Outdoor 5.0mm 1core LSZH Fiber Optic Patch Cord for FTTA and Data Center Applications
  • 5G FTTH Outdoor 5.0mm 1core LSZH Fiber Optic Patch Cord for FTTA and Data Center Applications
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-01
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 OptiTap Connector 2 FC, LC, SC, ST, E2000, ...
Core 1 2 4 6 8 12 Cores Insertion Loss 0.2dB
Return Loss 55dB Cable Cover Material LSZH, TPU
Color Black Fiber Type SM, MM
Highlight

FTTA Optical Fiber Patch Cable

,

OptiTap SC APC Patch Cord
Leave a Message
Product Description
FTTH Outdoor 5G LSZH FTTA SC APC 1cores 5.0mm Optical Fiber Patch Cables
Product Description
H-Optic OptiTap Connector CPRI Fiber Optic Patch Cord Field Patch Cable FTTH Patch Jumper
Key Features
  • Superior weather resistance for FTTA and outdoor applications
  • Flexible installation options: factory terminated, pre-terminated, or field installed assemblies
  • Designed for FTTA and extreme outdoor temperatures
  • Reliable performance in harsh weather environments
  • Tool-free installation
  • Threaded style coupling
  • Bend protection for installation and long-term use
Technical Specifications
Parameters Standard Fiber Cable Assemblies
Connector Side A: SC with armored
Side B: LC, SC, ST, FC, MPO/MTP, ODVA connector, DLC(duplex LC), NSN, Ericson, Huawei, etc.
Fiber count 2 cores, 4 cores, 6 cores, 8 cores, 12 cores
Fiber Type SM G.652D, G.657A (A1, A2, B3, ...)
MM OM1, OM2, OM3, OM4, OM5
Jacket Materials LSZH, TPU, PE
Cable diameter 4.8mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm
Testing Wavelengths SM: 1310±30nm, 1550±30nm
MM: 850±30nm, 1300±30nm
Insertion Loss(dB) TIA/EIA-455-107 ≤ 0.3dB(PC/UPC/APC), ≤ 0.3dB(UPC)
Return Loss(dB) TIA/EIA-455-107 ≥45dB (PC/UPC), ≥55dB (APC), ≥35dB (UPC)
Exchange ability ≤ 0.2dB
Cable Assemblies Pigtail/ Simplex/ Duplex/ Fan-out Patch cord/ Branch out patch cord
Operating Temperature -14℃~+85℃
Storage Temperature -40℃~+85℃
Product Overview
  • Robust and sealed connection solution for FTTH connectivity
  • SC/APC connectors mate to standard adapters for FTTX applications
  • Single fiber, SC-based connector design
  • Bird proof and rodent resistant
  • IP67 water and dust protection
  • Low profile in-line receptacle available
  • No installation tools required
Cable Construction Options
  • Type 1: SUS Spiral Steel Armoured + Kevlar + LSZH/TPU + 2*Buffered 0.9mm fiber (4.8mm/5.0mm)
  • Type 2: SUS Spiral Steel Armoured + Kevlar + LSZH/TPU + 2*2.0mm cable (7.0mm)
  • Custom cable constructions available
Performance Parameters
Type SM-UPC SM-APC MM-UPC
Insertion loss ≤0.1 (Typical), ≤0.3dB (MAX) ≤0.15 (Typical), ≤0.3dB (MAX) ≤0.05 (Typical), ≤0.3dB (MAX)
Return loss ≥50dB ≥60dB ≥30dB
Durability 500 mating cycles
Working temperature -40 to +85℃

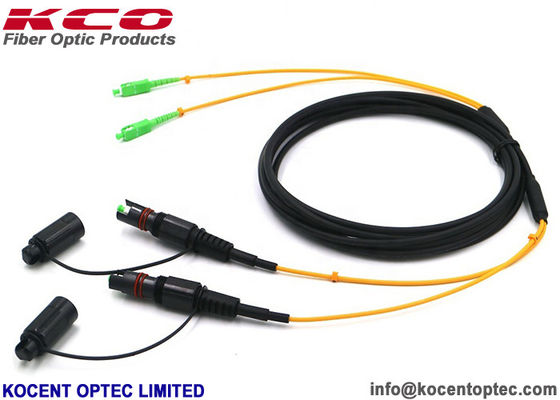

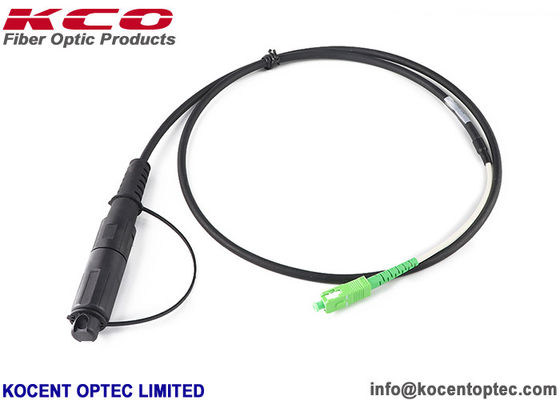

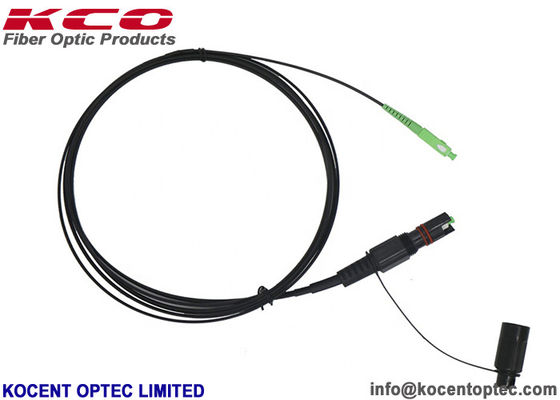

Product Images
5G FTTH Outdoor 5.0mm 1core LSZH Fiber Optic Patch Cord for FTTA and Data Center Applications 0 5G FTTH Outdoor 5.0mm 1core LSZH Fiber Optic Patch Cord for FTTA and Data Center Applications 1
Applications
  • Telecommunication networks
  • Local area networks
  • CATV systems
  • Active device termination
  • Data center system networks
  • PON (Passive Optical Networks)
  • Military applications
OEM/ODM Services
We offer custom branding options for cables, packaging, labels, and more. With over 10 years of production experience, we provide standard telecom and broadcast television grade patch cords, all tested before shipment.
Packaging & Shipping
Packaging Options
  • Standard export packing
  • Carton box, wooden box, or wooden pallet
Shipping Methods
  • International express: UPS, TNT, DHL, etc.
  • International air freight
  • Sea freight
  • Standard export ports: Shenzhen, Hongkong, Ningbo
  • Standard export airports: Shenzhen, Hongkong, Hangzhou, Shanghai
