1U 144cores Rack Mounted MTP MPO Optical Patch Panels 0.3m Cable
Place of Origin | Guangdong, China |
---|---|
Brand Name | KCO |
Certification | RoHS, ISO9001 |
Model Number | MPO-1U-144-LC/UPC |
Minimum Order Quantity | Negotiation |
Price | Negotiation |
Packaging Details | Carton box, wooden pallet |
Delivery Time | 2~7 days after get payment |
Payment Terms | Western Union, T/T, L/C |
Supply Ability | 50,000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xConnector 1 | MPO, MTP | Connector 2 | LC/UPC, LC/APC Or Customized |
---|---|---|---|
Size | 480x245x1U | Capacity | 144cores |
Color | Black, Beige | Length | 0.5m, 1.0m, 1.5m, Customized |
Cable | 0.3m | Fiber | Single Mode, Multimode |
IL | 0.35dB | RL | 50dB |
Highlight | 144cores Optical Patch Panels,0.3m Cable Optical Patch Panels,LC/UPC Rack Mounted Patch Panels |
1U Ultra High Density 144 Port Optica Fibra MPO MTP Rack Mount Patch Panel
Description:
- MPO/MTP Rack Mount Patch Panel is design to fit with standard 19 inch of fiber optic distribution Frame.
- This high capacity fiber optic distribution frame support fiber cable fast connection and distribution.
- It load MTP/MPO and ribbon fiber cable inside, easy to use by connector plug.
- It is an ideal equipment for supporting the fiber distribution in high-density capacity data center.
- It has simple & fast installation, compact design, high precision, plug and play etc. advantages.
- Can up load with 12 pcs of 12 cores MPO-LC cassette box.
- Drawing type, easier to install and maintain.
- 3 layers, high density, more save space.
- Availabel in Single mode, Multimode OM3 OM4 and OM5.
- Factory pre-install.
- 100% testing before shipping.
- Available in Type A, Type B and Type C.
- Default with Low Loss Standard (Elite Insertion Loss: less than 0.35dB).
Features:
- Drawer with guild rail, easy to install and maintain.
- 19" standard size , easy install
- Light weight, strong strength, good anti-shocking and dustproof
- Well cable management, cable can be distinguished easily
- Roomy space ensure fiber bent ratio
- Adapter fence can be installed or uninstalled
Technical Data:
Connector type | Mini LC Duplex adapter | ||
Capacity | 144 cores | ||
Material | Galvanized Steel Sheet or cold rolled steel | ||
Performance Index | Max capacity reach to 144 cores Available adapter port: Defaul use Mini LC Duplex (optional: ST, FC, SC, MU, MTRJ, E2000, ...) With various panels to fit different adaptor interface |
||
MPO/MTP Patch Panel Solution for Data Center:
Quick informations:
- P/N: KCO-RM-MPO-1U-144-LC-xx
- Name: 19'' MPO MTP Patch Panel
- Capacity: 144 core
- Maximum module number: 12pc
- Optical port: LC duplex, MPO
- Cable length: 0.3m
- Patch panel size: 480x245x1U(mm)
- Color: black (OEM other color)
Operation Conditions
Operating Temperature |
-20℃ -- +60℃ |
Storage Temperature |
-40℃ -- +70℃ |
Humidity |
90% at 30℃ |
Air Pressure |
70kPa – 106kPa |

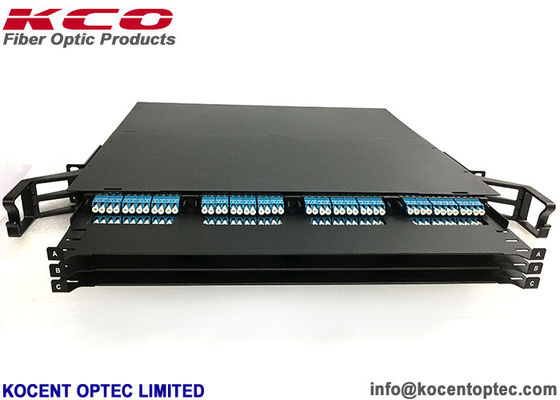

Product photo:
MTP/MPO Connector Specifications:
Type | Single Mode | Single Mode | Multi Mode | |||
(APC Polish) | (UPC Polish) | (PC Polish) | ||||
Fiber Count | 8,12,24 etc. | 8,12,24 etc. | 8,12,24 etc. | |||
Fiber Type | G652D,G657A1 etc. | G652D,G657A1 etc. | OM1,OM2,OM3 etc. | |||
Max. Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
Low Loss | Low Loss | Low Loss | ||||
≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.60dB | |
Return Loss | ≥60 dB | ≥60 dB | NA | |||
Durability | ≥500 times | ≥500 times | ≥500 times | |||
Operating Temperature | -40℃~+80℃ | -40℃~+80℃ | -40℃~+80℃ | |||
Test Wavelength | 1310nm | 1310nm | 1310nm | |||
Insert-pull test | 1000 times<0.5 dB | |||||
Interchange | <0.5 dB | |||||
Anti-tensile force | 15kgf |
Descriptions:
Fiber Capacity of panel | 12-144 core(12 24 48 port usually) |
Panel Connector | SC LC ST FC |
Type | Fixed |
Dimension | 19'' 1U/2U/3U/4U... |
Material | Cold Rolled Steel or Aluminum |
Storage Temperature | -45~+65℃ |
Thickness | 1.0 1.2 mm |
Accessories | Cable ties, mounting ear screws, and spiral wrap tube |
MPO type |
SM: G652D, G657A1, G657A2 |
Cover | LSZH |
Length | 0.3m, 0.5m |
