8 Cores SC UPC Indoor Wall Mount Optical Fiber Patch Panel Distribution Terminal Box

8 Cores SC UPC Indoor Wall Mount Optical Fiber Patch Panel Distribution Terminal Box

Description:

- The KCO-FTB-WM08 is with large working space to integrate the pigtail, cables and adapters for fiber management.

- It can be used as a crossover unit in the implementation of input and distribution devices, telecommunication crosses.

- This cross allows you to boil up to 8 optical fibers.

- The KCO-FTB-WM08 wall-mounted fiber optic distribution box provides efficient cable connections between outside plant cables and equipment inside the buildings and communications facilities.
- The KCO-FTB-WM08 wall-mounted fiber optic distribution box integrates fiber splicing, storage and cable connections together in a unit.

- They can manage both bundle type and ribbon type fiber cables.

- Wall-mounted optical box KCO-FTB-WM08 is designed with 8 ports for SC simpex adapter or LC duplex adapter.

- Dimensions (WxHxD): 200x165x40 (mm).

Features:

- Indoor application.

- Protection grade: IP43.

- Dust-weet protected box.

- Maximum number of welded joints: 8 cores.

- Maximum number of SC type adapters: 8 pcs.

- Possibility of quick installation without special tools.

- Maximum number of incoming cables: up to 8

- Beautiful and comfortable design.

- Possibility of quick access to the cable.

- Front panel with lock to prevent unauthorized access.

- Possibility of transit cable laying.

- The box can be installed indoors and outdoors.

- It is made in anti-vandal design from 0.8~1.0mm steel tape.

- OEM, ODM service: available.

Application:
- FTTH,

- FTTX,

- WAN,

- LAN,

- Metro

- PON, GPON, ...

Parameters:
- Operating temperature: -5℃～+40℃
- Relative humidity: ≤85% (+30℃)
- Atmospheric pressure:70Kpa～-106Kpa
- Durability: >1000 times
- Standard working wavelength: 850nm, 1310nm, 1550nm

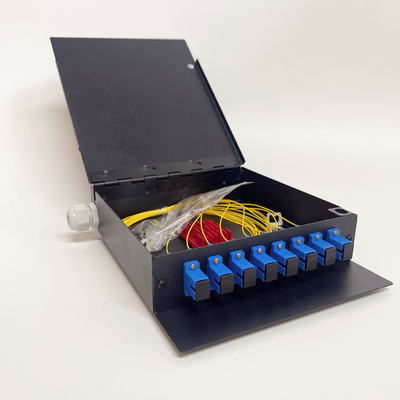

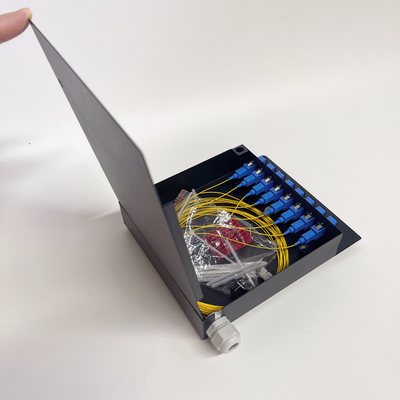

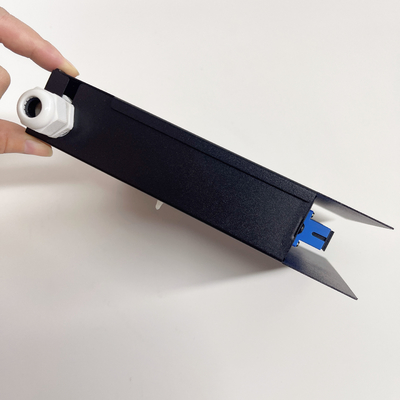

Product photo:

Kocent Optec Limited Product Catalog:
- Fiber Optic Cable: outdoor cable, indoor cable, ftth drop cable.

- Fiber Optic Fast Connnector: SC, FC, LC, ST

- Fiber Optic Patch Cord: indoor patch cord, ftth drop patch cord, Field Fiber Optic Patch Cord, Outdoor Patch Cord.
- Fiber Optic Splitter: PLC Splitter, FTB Coupler, Multimode splitter.

- Fiber Optic Splice Closure: Inline type, Dome type, Aerial type, Wall mount type, Splitter Splice closure...

- Fiber Optic Terminal Box: Distribution Frame, Cross Cabinet, ODF Unit, 19'' Patch panel, Indoor terminal box, Outdoor terminal box, FDB, FAT, CTO, Splitter Box, ...
- MPO MTP Solution product: MPO Patch Cord (8fo, 12fo, 16fo, 24fo, 32fo), MTP Patch cable, MPO MTP attenuator, MPO MTP loop back, MPO MTP Adapter, MPO MTP patch panel.

OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea: Huyndai, COSCO, etc
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
