8F Single Mode SMF G657A1 3.0mm MPO MTP Female Optical Fiber Trunk Cable 3m 5m 10m Type A
Product Details
| Connector | MPO/APC | Fiber | OS1 |
|---|---|---|---|
| Cover | PVC, LSZH | Insertion Loss | 0.2dB |
| Return Loss | 55dB | Diameter | 2.0mm, 3.0mm |
| Length | 1, 3, 5, 7, 10, 15, 20, ... | Core | 9/125 |
| Fiber Count | 8fibers, 12 Fibers, 24 Fibers | Color | Yellow |
Product Description
8F Single Mode SMF G657A1 3.0mm MPO MTP Female Optical Fiber Trunk Cable 3m 5m 10m Type A
Description:
MPO MTP Trunk Cable, KCO Fiber factory directly sell.
MPO trunk cable / MTP trunk cable is high-speed fiber optic cable, it is used to connect servers, switches, and data storage.
It features multi-fiber MPO (Multi-fiber Push-On) connectors on both ends. Instead of running many individual fiber lines, this single cable bundles multiple fibers together to save space and simplify setup.
MPO trunk cable / MTP trunk cable, available 8F to 288F.
MPO connector / MTP connector is multi fiber connector, it is 8F, 12F, 16F, 24F, 32F and even 48F.
MPO Trunk Cable / MTP trunk cable is female, without Pin.
Single Mode MPO trunk cable / MTP trunk cable use G657A1 fiber. It is use for high speed data transimittion up to 40G and 100G.
MPO trunk cable / MTP trunk cable 8core with mini cable 8 fibers in a mini tube 3.0mm, cable color yellow and cable length is customized from 0.5m, 1m, 3m, 5m, 10m, 15m, etc
Application
- Data center
- High speed telecommunication transmission
- Active device termination
- Telecommunication networks
- Metro
- Local Area Networks(LANs)
- Data Processing networks
- Test Equipment
- Premise installations
- Wide Area Networks(WANs).
- FTTx (FTTH, FTTO, FTTB, FTTA, ...)
Features
- Single mode fiber SMF G657A1, 8fibers
- Connector side A: MPO APC / MTP APC
- Connector side B: MPO APC / MTP APC
- Cable dia.: 3.0mm
- Cable out-sheath material: LSZH, OFNR, PVC.
- Cable length: customized.
- Polarity type: Type A, type B, type C.
- 100% factory tested before shipment.
- Test report come with each piece.
- OEM service: available

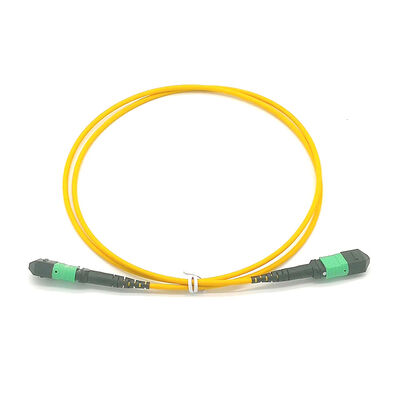

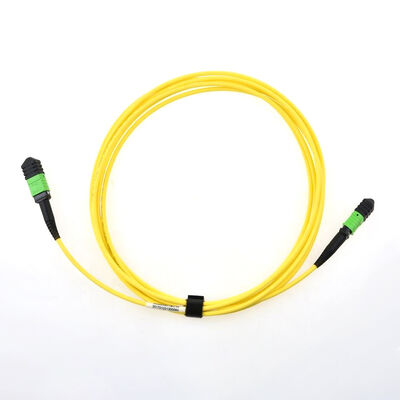

Product photos:
Single MPO MTP connector type
Multi MPO MTP connector type
About Single mode fiber SMF G657A1 type:
Single mode G657A1 fiber is a type of single-mode optical fiber designed to bend easily without losing its signal.
It is officially called a "bend-insensitive" fiber because it can handle tight turns around corners and inside small boxes.
Mode Field Diameter (MFD): 8.4 to 9.2 μm
Cladding Diameter: 125.0 ± 0.7 μm.
Wave length: 1310nm / 1550nm
Smaller radius bend:
- 10 mm Radius Bend: Wrapping the fiber one full turn around a 10 mm radius cylinder limits maximum signal loss to 0.75 dB at a light wavelength of 1550 nm. At 1625 nm, the maximum allowed loss is 1.5 dB.
- 15 mm Radius Bend: Wrapping the fiber 10 full turns around a roomier 15 mm radius limits maximum signal loss to 0.25 dB at 1550 nm and 1.0 dB at 1625 nm.
Differents between SMF G652D vs G657A1:
| Feature | Standard G652D Fiber | Bend-Insensitive G657A1 Fiber |
|---|---|---|
| Minimum Bend Radius | 30 mm (About the size of a golf ball) | 10 mm / 15mm (About the size of a clothing button) |
| Signal Loss on Tight Bends | High (Light leaks out if bent too sharply) | Very low (Keeps light inside the core) |
| Primary Use Case | Long-distance street lines and poles | Indoor wiring and tight wall corners |
| Compatibility | Standard baseline fiber | 100% backward compatible with G652D |
| Average Cost | Lower cost base | Slightly higher cost |
Specification:
| Parameters | Standard Fiber Cable Assemblies | |
| Fiber Type | SM(G.657A) | |
| Jacket Materials | LSZH/OFNR/PVC | |
| Connector Type | MPO APC female | |
| Ferrule Materials | Glass-filled polyme | |
| Testing Wavelengths | 1310±30/1550±30nm | |
| Insertion Losss IL (dB) |
≤ 0.35dB (ultra low loss) ≤ 0.65dB (standard loss) |
|
| Return Loss RL (dB) | ≥ 55dB(APC) | |
| Exchangeability | ≤ 0.2dB | |
| Cable Assemblies | Trunk cable | |
| Operating Temperature (° C) | -10~ + 70 | |
| Storage Temperature (° C) | -40 ~ +85 | |
| Package | 1unit/bag | |
| *All values specified are with connectors. | ||
Polarity type:
OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

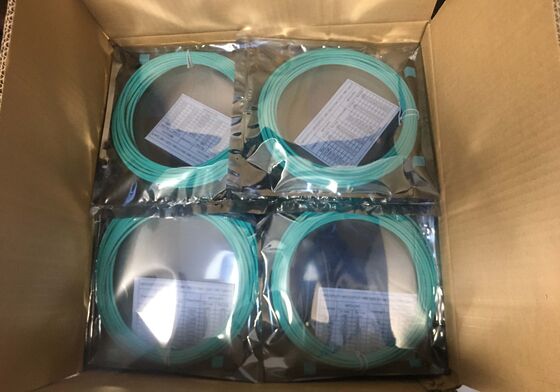

Packing:
According to Stardard Export Packing.
Carton box, wooden box, pallet.
Standard marking.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
