4*8F 4*12F 4*24F MPO/APC Patch Cord MTP/APC Single Mode Trunk Cable Type A Type B Type C Polarity

  • 4*8F 4*12F 4*24F MPO/APC Patch Cord MTP/APC Single Mode Trunk Cable Type A Type B Type C Polarity
  • 4*8F 4*12F 4*24F MPO/APC Patch Cord MTP/APC Single Mode Trunk Cable Type A Type B Type C Polarity
  • 4*8F 4*12F 4*24F MPO/APC Patch Cord MTP/APC Single Mode Trunk Cable Type A Type B Type C Polarity
  • 4*8F 4*12F 4*24F MPO/APC Patch Cord MTP/APC Single Mode Trunk Cable Type A Type B Type C Polarity
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number MPOA-MPOA-12fo-LSZH-xM
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Product Details
Connector MPO/APC Fiber OS1
Cover PVC, LSZH Insertion Loss 0.2dB
Return Loss 55dB Diameter 2.0mm, 3.0mm
Length 1, 3, 5, 7, 10, 15, 20, ... Core 9/125
Fiber Count 8fibers, 12 Fibers, 24 Fibers Color Yellow
Leave a Message
Product Description

4*8F 4*12F 4*24F MPO/APC Patch Cord MTP/APC Single Mode Trunk Cable Type A Type B Type C Polarity

Description:

KCO Fiber factory directly sell MPO/APC Patch Cord MTP/APC Single Mode Trunk Cable

  • MPO/APC patch cord (MTP/APC trunk cable) is the multi-fiber optical patch cord that come with MPO/APC or MTP/APC on both side of cable.
  • The MPO/APC connector (MTP/APC connector) termination is 8 degree conner.
  • It is Elite IL (Ultra Low Loss) or Standard IL.
  • The trunk cable connection method have: Type A, Type B, Type C.
  • MPO/APC (MTP/APC) trunk cable structure:

Option 1: MPO/APC connector + mini cable SM G657A1 (fiber count 8F/12F/24F) + MPO/APC connector

Option 2: MTP/APC connector + mini cable SM G657A1 (fiber count 8F/12F/24F) + MTP/APC connector

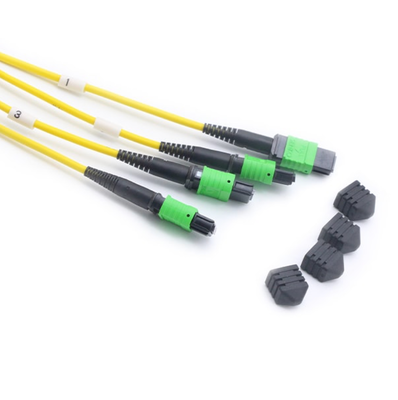

4*8F 4*12F 4*24F MPO/APC Patch Cord MTP/APC Single Mode Trunk Cable Type A Type B Type C Polarity 0

Product Detail

4*8F 4*12F 4*24F MPO/APC Patch Cord MTP/APC Single Mode Trunk Cable Type A Type B Type C Polarity

  • Connector side A:MPO female * 4 / MTP female * 4
  • Connector side B: MPO female * 4 / MTP female * 4
  • Fiber type: Single mode G657A1 / G657A2
  • Fibe count: 48F / 4*12F / 4*24F
  • Sub-cable diameter: 3.0mm
  • Outer cable diamerter: 8.0mm ± 0.5mm
  • Cable out-sheath material: LSZH, PVC, OFNR
  • Cable color: Yellow (customized)
  • Polarity: Type B (exwork, optional: type A, type C)
  • IL: Ultra Low Loss (0.35dB)
  • RL: 55dB
  • Cable length: customized (1m, 3m, 5m, 10m, 15m, 25m, 50m, 75m, 100m, 150m, ...)
  • 100% factory tested before shipment.
  • Test report come with each piece.
  • OEM service: available

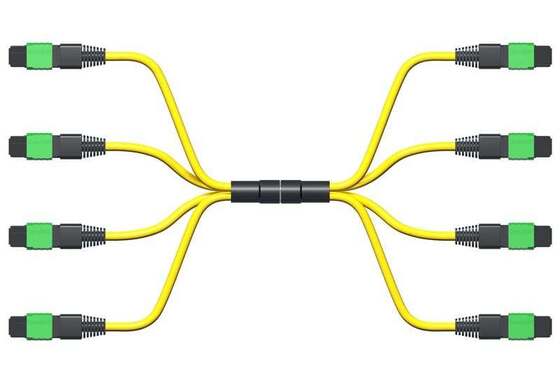

  • Break-out cable structure:

4*8F 4*12F 4*24F MPO/APC Patch Cord MTP/APC Single Mode Trunk Cable Type A Type B Type C Polarity 1


Application

  • Starlink data center
  • AI data center, AI & Machine Learning Networks
  • High-Speed Transceiver Upgrades
  • High density big data center such as bank data center, telecom data center, icloud data center, ...
  • Passive fiber optic Telecommunication networks (PON)
  • WAN / LAN
  • Data Processing networks
  • Test Equipment
  • Hyperscale & Enterprise Data Centers
  • FTTx (FTTH, FTTO, FTTB, FTTA, ...)
  • High speed transport data center such as metro, high-speed railway, light railway...

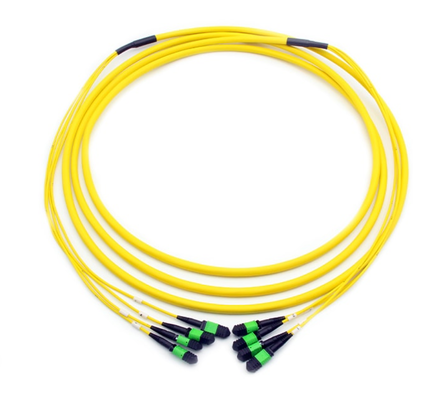

Product photos:

4*8F 4*12F 4*24F MPO/APC Patch Cord MTP/APC Single Mode Trunk Cable Type A Type B Type C Polarity 2

MPO MTP Trunk Cable connect way by adapter / coupler

4*8F 4*12F 4*24F MPO/APC Patch Cord MTP/APC Single Mode Trunk Cable Type A Type B Type C Polarity 3

Specification:

Parameters Standard Fiber Cable Assemblies
Fiber Type SM(G.657A)
Jacket Materials LSZH/OFNR/PVC
Connector Type MPO APC female / male
Ferrule Materials Glass-filled polyme
Testing Wavelengths 1310±30/1550±30nm
Insertion Losss IL (dB)

≤ 0.35dB (ultra low loss)

≤ 0.65dB (standard loss)
Return Loss RL (dB) ≥ 55dB(APC)
Exchangeability ≤ 0.2dB
Cable Assemblies Trunk cable
Operating Temperature (° C) -10~ + 70
Storage Temperature (° C) -40 ~ +85
Package 1unit/bag
*All values specified are with connectors.

Polarity type A B C:

4*8F 4*12F 4*24F MPO/APC Patch Cord MTP/APC Single Mode Trunk Cable Type A Type B Type C Polarity 4

OEM/ODM Service:

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, pallet.

Standard marking.
