SMF G657A 6*8F MPO/APC 6*12F MTP/APC 6*24F High-density Optical Trunk Cable Method A Method B Method C

  • SMF G657A 6*8F MPO/APC 6*12F MTP/APC 6*24F High-density Optical Trunk Cable Method A Method B Method C
  • SMF G657A 6*8F MPO/APC 6*12F MTP/APC 6*24F High-density Optical Trunk Cable Method A Method B Method C
  • SMF G657A 6*8F MPO/APC 6*12F MTP/APC 6*24F High-density Optical Trunk Cable Method A Method B Method C
  • SMF G657A 6*8F MPO/APC 6*12F MTP/APC 6*24F High-density Optical Trunk Cable Method A Method B Method C
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number MPOA-MPOA-12fo-LSZH-xM
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Product Details
Connector MPO/APC Fiber OS1
Cover PVC, LSZH Insertion Loss 0.2dB
Return Loss 55dB Diameter 2.0mm, 3.0mm
Length 1, 3, 5, 7, 10, 15, 20, ... Core 9/125
Fiber Count 8fibers, 12 Fibers, 24 Fibers Color Yellow
Leave a Message
Product Description

SMF G657A 6*8F MPO/APC 6*12F MTP/APC 6*24F High-density Optical Trunk Cable Method A Method B Method C

Description:

KCO Fiber factory directly sell MPO/APC MTP/APC SMF G657A1 Trunk Cable

  • MPO/APC trunk cable is a high-density fiber optic cable used to link network panels over long distances.
  • MPO/APC MTP/APC Trunk Cables: Permanent backbone links that carry multiple fibers between panels.
  • They have MPO/APC MTP/APC connectors on both ends.
  • The MPO/APC connector (MTP/APC connector) termination is 8 degree conner.
  • It is Elite IL (Ultra Low Loss) or Standard IL.
  • The trunk cable connection method have: Method A, Method B, Method C
  • MPO/APC (MTP/APC) trunk cable structure:

Option 1: MPO/APC connector + mini cable SM G657A1 (fiber count 8F/12F/24F) + MPO/APC connector

Option 2: MTP/APC connector + mini cable SM G657A1 (fiber count 8F/12F/24F) + MTP/APC connector

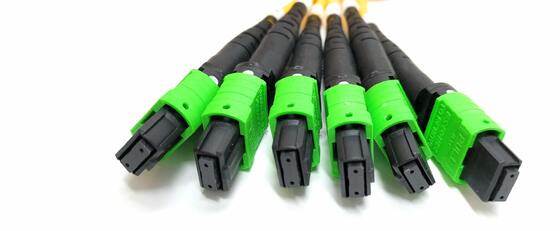

SMF G657A 6*8F MPO/APC 6*12F MTP/APC 6*24F High-density Optical Trunk Cable Method A Method B Method C 0

Product Detail

SMF G657A 6*8F MPO/APC 6*12F MTP/APC 6*24F High-density Optical Trunk Cable Method A Method B Method C

  • Connector side A:MPO female * 6 / MTP female * 6
  • Connector side B: MPO female * 6 / MTP female * 6
  • Fiber type: Single mode G657A1 / G657A2
  • Fibe count: 6*8F / 6*12F / 6*24F
  • Sub-cable diameter: 3.0mm
  • Outer cable diamerter: 11.0mm ± 0.5mm
  • Cable out-sheath material: LSZH, PVC, OFNR
  • Cable color: Yellow (customized)
  • Polarity: customized
  • IL: Ultra Low Loss (0.35dB)
  • RL: 55dB
  • Cable length: customized
  • 100% factory tested before shipment.
  • Test report come with each piece.
  • OEM service: available
  • Packing: 1pc/bag
  • Break-out cable structure:

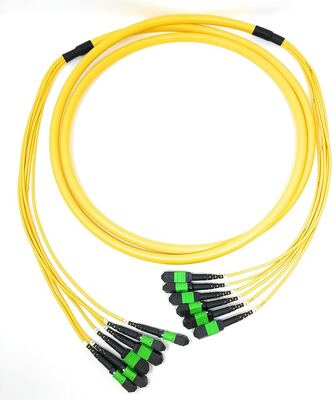

SMF G657A 6*8F MPO/APC 6*12F MTP/APC 6*24F High-density Optical Trunk Cable Method A Method B Method C 1


Application


  • AI network
  • Big icloud data center
  • High-Speed Transceiver Upgrades
  • Passive fiber optic Telecommunication networks (PON)
  • WAN / LAN
  • Data Processing networks
  • Test Equipment
  • Hyperscale & Enterprise Data Centers
  • FTTx (FTTH, FTTO, FTTB, FTTA, ...)
  • High speed transport data center such as metro, high-speed railway, light railway...

Product photos:

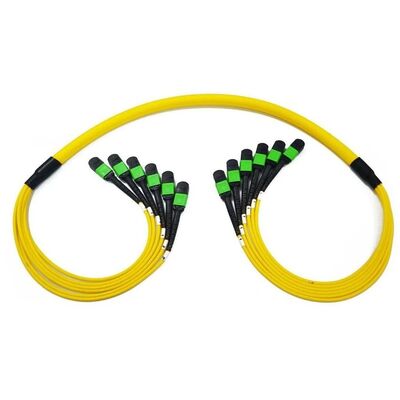

SMF G657A 6*8F MPO/APC 6*12F MTP/APC 6*24F High-density Optical Trunk Cable Method A Method B Method C 2

Specification:

Parameters Standard Fiber Cable Assemblies
Fiber Type SM(G.657A)
Jacket Materials LSZH/OFNR/PVC
Connector Type MPO APC female / male
Ferrule Materials Glass-filled polyme
Testing Wavelengths 1310±30/1550±30nm
Insertion Losss IL (dB)

≤ 0.35dB (ultra low loss)

≤ 0.65dB (standard loss)
Return Loss RL (dB) ≥ 55dB(APC)
Exchangeability ≤ 0.2dB
Cable Assemblies Trunk cable
Operating Temperature (° C) -10~ + 70
Storage Temperature (° C) -40 ~ +85
Package 1unit/bag
*All values specified are with connectors.

Polarity Method A, B, C

SMF G657A 6*8F MPO/APC 6*12F MTP/APC 6*24F High-density Optical Trunk Cable Method A Method B Method C 3

Packing

SMF G657A 6*8F MPO/APC 6*12F MTP/APC 6*24F High-density Optical Trunk Cable Method A Method B Method C 4


OEM/ODM Service:

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, pallet.

Standard marking.

Shipping:

  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea
