32fibers SMF Single Mode MPO-32 MTP-32 APC Green Elite Loss Fiber Optical Trunk Cable Micro Cable 3.0mm

  • 32fibers SMF Single Mode MPO-32 MTP-32 APC Green Elite Loss Fiber Optical Trunk Cable Micro Cable 3.0mm
  • 32fibers SMF Single Mode MPO-32 MTP-32 APC Green Elite Loss Fiber Optical Trunk Cable Micro Cable 3.0mm
  • 32fibers SMF Single Mode MPO-32 MTP-32 APC Green Elite Loss Fiber Optical Trunk Cable Micro Cable 3.0mm
  • 32fibers SMF Single Mode MPO-32 MTP-32 APC Green Elite Loss Fiber Optical Trunk Cable Micro Cable 3.0mm
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number MPOA-MPOA-12fo-LSZH-xM
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Product Details
Connector MPO/APC Fiber OS1
Cover PVC, LSZH Insertion Loss 0.2dB
Return Loss 55dB Diameter 2.0mm, 3.0mm
Length 1, 3, 5, 7, 10, 15, 20, ... Core 9/125
Fiber Count 8fibers, 12 Fibers, 24 Fibers Color Yellow
Leave a Message
Product Description

32fibers SMF Single Mode MPO-32 MTP-32 APC Green Elite Loss Fiber Optical Trunk Cable Micro Cable 3.0mm

Description:

KCO Fiber factory directly sell MPO-32 MTP-32 APC Green Elite Loss Fiber Optical Trunk Cable

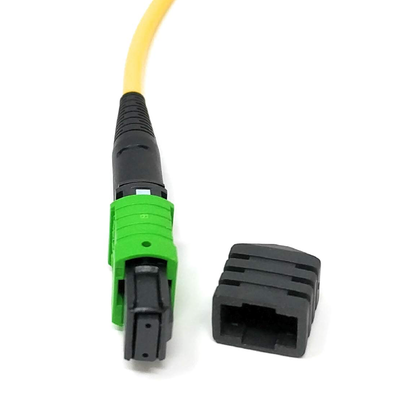

  • MPO-32 MTP-32 connector is an ultra-high-density fiber optic connector that bundles 32 individual fiber strands inside a single compact plug.
  • MPO-32 MTP-32 connector uses an offset keyway positioned to the left. This design physical layout usually features two rows of 16 fibers packed into one ferrule.
  • The MPO-32 MTP-32 trunk cables are available in Type A, Type B, or Type C configurations to maintain correct transmit-to-receive paths across network devices.
  • The MPO-32 MTP-32 trunk cable use for High-Speed Network Backbones, it provides the main infrastructure for 400G and 800G data center networks. They are essential components for the transition into next-generation 1.6T speeds.

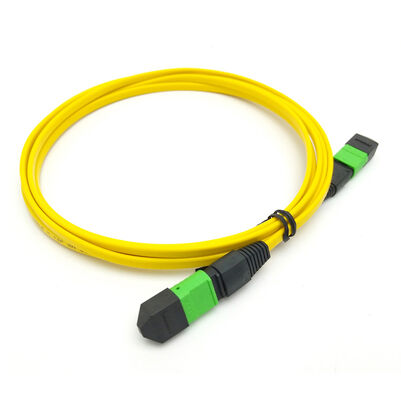

Option 1: MPO-32 APC connector + mini cable SM G657A1 + MPO-32 APC connector

Option 2: MTP-32 APC connector + mini cable SM G657A1 + MTP-32 APC connector

32fibers SMF Single Mode MPO-32 MTP-32 APC Green Elite Loss Fiber Optical Trunk Cable Micro Cable 3.0mm 032fibers SMF Single Mode MPO-32 MTP-32 APC Green Elite Loss Fiber Optical Trunk Cable Micro Cable 3.0mm 1


MPO MTP Trunk Cable Polarity Type A, Type B, Type C

  • Type A (Straight-Through) Fiber Mapping: Fiber 1 goes to Fiber 1, Fiber 2 goes to Fiber 2, and Fiber 32 goes to Fiber 32. Features a Key-Up connector on one end and a Key-Down connector on the other. Used mostly in standard cassette-based systems. Because the cable does not flip the signal, the duplex crossover is typically handled inside the cassettes.
  • Type B (Reversed) Fiber Mapping: The entire fiber array is flipped. Fiber 1 goes to Fiber 32, Fiber 2 goes to Fiber 31, and Fiber 32 goes to Fiber 1. Features a Key-Up connector on both ends of the cable. Recommended for direct transceiver-to-transceiver parallel optics. It is commonly deployed for 40G, 100G, and 400G networks (like SR4 and DR4 connections). Note: Standard Type B orientation is physically incompatible with Angled Physical Contact (APC) single-mode connectors unless specifically engineered otherwise.
  • Type C (Pair-Flipped) Fiber Mapping: Adjacent pairs of fibers are flipped throughout the cable. Fiber 1 goes to Position 2, Fiber 2 goes to Position 1, Fiber 3 goes to Position 4, and so on. Features a Key-Up connector on one end and a Key-Down connector on the other. Primarily used in multi-row backbone networks that break down into legacy duplex LC or SC systems. It is becoming less common in newer, ultra-high-speed network designs.
32fibers SMF Single Mode MPO-32 MTP-32 APC Green Elite Loss Fiber Optical Trunk Cable Micro Cable 3.0mm 232fibers SMF Single Mode MPO-32 MTP-32 APC Green Elite Loss Fiber Optical Trunk Cable Micro Cable 3.0mm 332fibers SMF Single Mode MPO-32 MTP-32 APC Green Elite Loss Fiber Optical Trunk Cable Micro Cable 3.0mm 4


Product Detail

Single Mode Ultra Low Loss MPO-16 Multi-fiber Patch Cable MTP-16 APC 16fibers Optical Fiber Trunk Cable Polarity A B C

  • Connector side A: MPO-32 APC / MTP-32 APC
  • Connector side B: MPO-32 APC / MTP-32 APC
  • Fiber type: Single mode G657A1 / G657A2
  • Fibe count: 32F
  • Cable diameter: 3.0mm
  • Cable out-sheath material: LSZH, PVC, OFNR
  • Cable color: Yellow (customized)
  • Polarity: customized
  • IL: Ultra Low Loss (0.35dB)
  • RL: 55dB
  • Cable length: customized
  • 100% factory tested before shipment.
  • Test report come with each piece.
  • OEM service: available
  • Packing: 1pc/bag

32fibers SMF Single Mode MPO-32 MTP-32 APC Green Elite Loss Fiber Optical Trunk Cable Micro Cable 3.0mm 5


Application

  • Data Processing networks
  • AI network
  • Icloud data center
  • High-Speed Transceiver Upgrades
  • Passive fiber optic Telecommunication networks (PON)
  • WAN / LAN
  • Test Equipment
  • FTTx (FTTH, FTTO, FTTB, FTTA, ...)
  • High speed transport data center such as metro, high-speed railway, light railway...

32fibers SMF Single Mode MPO-32 MTP-32 APC Green Elite Loss Fiber Optical Trunk Cable Micro Cable 3.0mm 6

Specification:

Parameters Standard Fiber Cable Assemblies
Fiber Type SM(G.657A)
Jacket Materials LSZH/OFNR/PVC
Connector Type MPO APC female / male
Ferrule Materials Glass-filled polyme
Testing Wavelengths 1310±30/1550±30nm
Insertion Losss IL (dB)

≤ 0.35dB (ultra low loss)

≤ 0.65dB (standard loss)
Return Loss RL (dB) ≥ 55dB(APC)
Exchangeability ≤ 0.2dB
Cable Assemblies Trunk cable
Operating Temperature (° C) -10~ + 70
Storage Temperature (° C) -40 ~ +85
Package 1unit/bag
*All values specified are with connectors.

Packing

32fibers SMF Single Mode MPO-32 MTP-32 APC Green Elite Loss Fiber Optical Trunk Cable Micro Cable 3.0mm 7


OEM/ODM Service:

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, pallet.

Standard marking.

Shipping:

  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea
