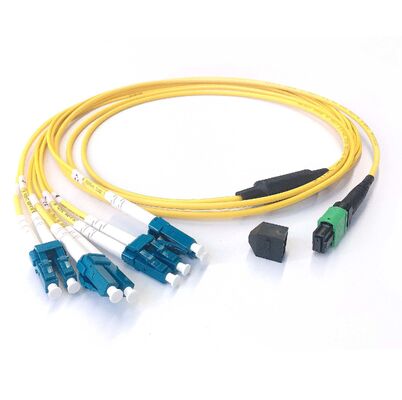

Single Mode 8fibers APC MPO-8 MTP-8 To LC Duplex Fiber Optical Break-out Patch Cable Polarity Method A B C
Product Details
| Connector | MPO/APC | Fiber | OS1 |
|---|---|---|---|
| Cover | PVC, LSZH | Insertion Loss | 0.2dB |
| Return Loss | 55dB | Diameter | 2.0mm, 3.0mm |
| Length | 1, 3, 5, 7, 10, 15, 20, ... | Core | 9/125 |
| Fiber Count | 8fibers, 12 Fibers, 24 Fibers | Color | Yellow |
Product Description
Single Mode 8fibers APC MPO-8 MTP-8 To LC Duplex Fiber Optical Break-out Patch Cable Polarity Method A B C
Description:
KCO Fiber factory directly sell Single Mode 8fibers APC MPO-8 MTP-8 To LC Duplex Fiber Optical Break-out Patch Cable
- MPO-8 / MTP-8 to LC duplex fiber optical break-out cable is fiber optic patch cord that the main cable is mini cable 8fibers, the patch cable one side comes with MPO-8 or MTP-8 APC polishing type and an other side comes with LC duplex connector (normally is LC/UPC type).
- Same as MPO / MTP trunk cable, the MPO / MTP to LC break-out patch cables have 3 type of connection method. They are type A (trainght through), type B (cross connect), type C (cross pair)
- The MPO APC / MTP APC refers to a high-density fiber optic cable terminated with an MPO / MTP (Multi-fiber Termination Push-on) connector that features an APC (Angled Physical Contact) polishing type. It is designed for high-speed, low-loss connections in modern enterprise networks and data centers.
Option 1: MPO-8 APC connector + mini cable SM G657A1 8F + LC/UPC Duplex connector
Option 2: MTP-8 APC connector + mini cable SM G657A1 8F + LC/UPC Duplex connector
MPO to LC / MTP to LC break-out patch cable polarity
- 1. Type A (Straight-Through)
Fiber Mapping: Fiber 1 connects to Fiber 1 (LC), Fiber 2 to Fiber 2, and so on.
Key Orientation: Key-Up to Key-Down.
How it works: Because this maintains a straight-through path, the Tx → Rx flip must happen somewhere else in the network. To complete the circuit, you must use a standard A-to-B (Crossover) LC duplex patch cord at one end (e.g., at the switch/transceiver).
- 2. Type B (Cross Reversed)
Fiber Mapping: Fiber 1 connects to Fiber 12 (LC), Fiber 2 connects to Fiber 11, and so on.
Key Orientation: Key-Up to Key-Up.
How it works: This creates an inherent flip within the cable itself. Because of this internal reversal, you must use a Straight-Through A-to-A LC patch cord to maintain the correct Tx → Rx orientation.
- 3. Type C (Cross Pair-Flipped)
Fiber Mapping: Fiber 1 connects to Fiber 2 (LC), Fiber 2 to Fiber 1, Fiber 3 to Fiber 4, and so on.
Key Orientation: Key-Up to Key-Down.
How it works: The pair-flip naturally maps Tx to Rx from end to end, making it ideal for connecting directly to duplex LC equipment without needing any special crossover patch cords. You use standard A-to-B LC patch cords on both ends.
Product Detail

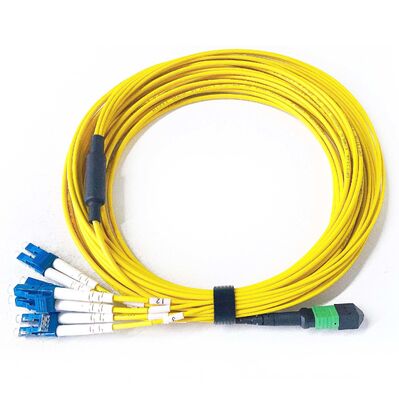

Single Mode 8fibers APC MPO-8 MTP-8 To LC Duplex Fiber Optical Break-out Patch Cable Polarity Method A B C
- Connector side A: MPO-8 APC, MTP-8 APC
- Connector side B: LC/UPC duplex, LC/APC duplex (others)
- Fiber type: Single mode G657A1 / G657A2
- Fibe count: 8F
- Cable diameter: 3.0mm
- Cable out-sheath material: LSZH, PVC, OFNR
- Cable color: Yellow (customized)
- Break-out length: 30cm, 50cm
- Break-out cable dia.: 2.0mm
- Polarity: customized
- IL: Ultra Low Loss (0.35dB)
- RL: 55dB
- Cable length: customized
- 100% factory tested before shipment.
- Test report come with each piece.
- OEM service: available
- Packing: 1pc/bag
Application
- Data Center
- AI center
- Starlink connection center
- FTTH
- FTTH
- FTTO
- FTTC
- FTTR
- FTTX
Specification:
| Parameters | Standard Fiber Cable Assemblies | |
| Fiber Type | SM(G.657A) | |
| Jacket Materials | LSZH/OFNR/PVC | |
| Connector Side A | MPO APC female / male MTP APC female / male | |
| Connector Side B | LC/UPC duplex LC/APC duplex Others | |
| Ferrule Materials | Glass-filled polyme | |
| Testing Wavelengths | 1310±30/1550±30nm | |
| Insertion Losss IL (dB) | ≤ 0.35dB (ultra low loss) ≤ 0.65dB (standard loss) | |
| Return Loss RL (dB) | ≥ 55dB(APC) | |
| Exchangeability | ≤ 0.2dB | |
| Cable Assemblies | Trunk cable | |
| Operating Temperature (° C) | -10~ + 70 | |
| Storage Temperature (° C) | -40 ~ +85 | |
| Package | 1unit/bag | |
| *All values specified are with connectors. | ||

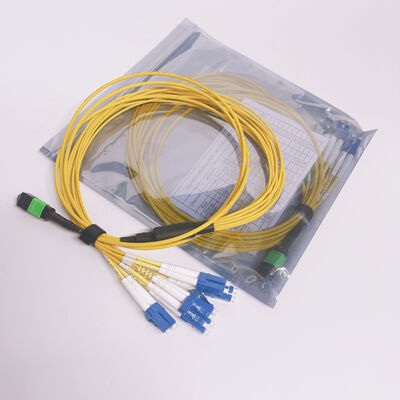

Packing:
OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, pallet.
Standard marking.
