SMF G652D 96fibers Aerial GYTA Outdoor Armored Fiber Optic Cable For Underground Ducts

  • SMF G652D 96fibers Aerial GYTA Outdoor Armored Fiber Optic Cable For Underground Ducts
  • SMF G652D 96fibers Aerial GYTA Outdoor Armored Fiber Optic Cable For Underground Ducts
  • SMF G652D 96fibers Aerial GYTA Outdoor Armored Fiber Optic Cable For Underground Ducts
  • SMF G652D 96fibers Aerial GYTA Outdoor Armored Fiber Optic Cable For Underground Ducts
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-GYTA-xA1
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details wooden roll, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 10,000km/ month
Product Details
Material PE, LDPE, HDPE Name Outdoor Fiber Optic Cable
Length 2km~5km Each Roll Cable Type GYTA
Fiber Single Mode G652D Cores 2 Cores To 96 Cores
Color Black Diameter 9.0mm
Part Number GYTA-xA1 Manufacturer Kocent Optec Limited
Origin Guangdong, China
Highlight

SMF G652D armored fiber optic cable

,

96fibers aerial GYTA cable

,

outdoor fiber optic cable for underground ducts
Leave a Message
Product Description

SMF G652D 96fibers Aerial GYTA Outdoor Armored Fiber Optic Cable For Underground Ducts

1. What is GYTA fiber optic cable?

  • GYTA cable is an outdoor armored fiber optic cable built with gel-filled loose tubes and an aluminum tape barrier for underground ducts and aerial lines
  • The name GYTA uses a standard industry code that describes how the cable is built:
G: Outdoor communication optical cable.
Y: Stranded loose tube design.
T: Water-blocking filling compound inside the core.
A: Aluminum-polyethylene bonded tape (armored).
  • Key feature:
- Water Resistance: Loose tubes and core gaps are filled with a waterproof gel to stop moisture damage.
- Aluminum Armored: A lightweight aluminum tape layer protects against moisture, rust, and minor rodent damage.
- PE Outer Jacket: A strong PE outer sheath withstands sunlight, bad weather, and physical stress.
- Central Strength Member: A steel wire sits in the middle to keep the cable stable and strong when pulled.

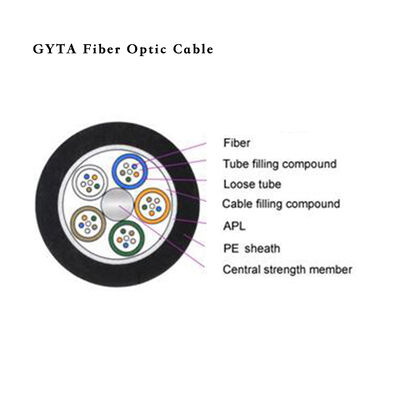

2. GYTA Cable Structure:

SMF G652D 96fibers Aerial GYTA Outdoor Armored Fiber Optic Cable For Underground Ducts

3. GYTA Cable Application:

- Outdoor FTTx Structured Cabling: use for FTTH, FTTB, FTTO, FTTA, FTTC outdoor tructurerd cabling.
- Underground Ducts: Ideal for pulling through underground conduits in cities.
- Aerial Lines: Used for overhead installations by lashing it to messenger wires.
- Long-Distance Networks: Works well for trunk lines, local area networks (LANs), and campus backbones.

4. Standard

  • Complies with Standard YD/T 1155-2001 as well as IEC 60794-1.

5. Cable Mechanical Characteristic

Cable Type

Fiber Count

Tubes

Fillers

Cable Diameter

mm

Cable Weight kg/km

Tensile Strength

Long/Short Term N

Crush Resistance

Long/Short Term

N/100mm

Bending Radius

Static
/Dynamic

mm

GYTA-2~12

8~12

1

4

9.0±0.5

100

1000/3000

1000/3000

10D/20D

GYTA-14~18

14~18

3

2

9.0±0.5

100

1000/3000

1000/3000

10D/20D

GYTA-20~24

20~24

4

1

9.5±0.5

110

1000/3000

1000/3000

10D/20D

GYTA-26~36

26~36

4

1

9.5±0.5

120

1000/3000

1000/3000

10D/20D

GYTA-38~48

38~48

4

1

10.0±0.5

140

1000/3000

1000/3000

10D/20D

GYTA-50~60

50~60

5

0

10.8±0.5

150

1000/3000

1000/3000

10D/20D

GYTA-62~72

62~72

6

0

11.9±0.5

170

1000/3000

1000/3000

10D/20D

GYTA-74~84

74~84

7

1

12.5±0.5

180

1000/3000

1000/3000

10D/20D

GYTA-86~96

86~96

8

0

13.6±0.5

210

1000/3000

1000/3000

10D/20D

GYTA-98~108

98~108

9

1

14.5±0.5

230

1000/3000

1000/3000

10D/20D

GYTA-110~120

110~120

10

0

14.8±0.5

240

1000/3000

1000/3000

10D/20D

GYTS-122~144

122~132

11

1

15.4±0.5

260

1000/3000

1000/3000

10D/20D

GYTA-146~216

146~216

12

0

19.8±0.5

395

1000/3000

1000/3000

10D/20D

GYTA-218~288

218~288

12

0

20.8±0.5

470

1000/3000

1000/3000

10D/20D

6. Fiber characteristic

Fiber style Unit MM
Condition nm 850/1300
Attenuation dB/km ≤3.0/1.0


----
Dispersion 1550nm Ps/(nm*km) Dispersion

1625nm Ps/(nm*km) 　
Bandwidth 850nm MHZ.KM Bandwidth

1300nm MHZ.KM 　
Zero dispersion wavelength nm ≧ 1295, ≤1320
Zero dispersion slope nm ----
PMD Maximum Individual Fiber
≤0.11
PMD Design Link Value Ps(nm2*km) ----
Fibre cutoff wavelength λc nm ----
Cable cutoff wavelength λcc nm ----
MFD 1310nm um ----

1550nm um ----
Numerical Aperture(NA)
0.200+/-0.015
Step(mean of bidirectional measurement) dB ≤0.10
Irregularities over fiber length and point dB ≤0.10

7. Fiber color

1 2 3 4 5 6
Blue Orange Green Brown Grey White
7 8 9 10 11 12
Red Black Yellow Violet Pink Aqua

OEM/ODM Service:

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

SMF G652D 96fibers Aerial GYTA Outdoor Armored Fiber Optic Cable For Underground Ducts

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.
