72F SMF 9/125 G657 72fibers GYTA Outdoor Fiber Optic Cable Loose Tube Armored For Aerial, Duct, Direct Burial, Pipeline

  • 72F SMF 9/125 G657 72fibers GYTA Outdoor Fiber Optic Cable Loose Tube Armored For Aerial, Duct, Direct Burial, Pipeline
  • 72F SMF 9/125 G657 72fibers GYTA Outdoor Fiber Optic Cable Loose Tube Armored For Aerial, Duct, Direct Burial, Pipeline
  • 72F SMF 9/125 G657 72fibers GYTA Outdoor Fiber Optic Cable Loose Tube Armored For Aerial, Duct, Direct Burial, Pipeline
  • 72F SMF 9/125 G657 72fibers GYTA Outdoor Fiber Optic Cable Loose Tube Armored For Aerial, Duct, Direct Burial, Pipeline
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-GYTA-xA1
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details wooden roll, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 10,000km/ month
Product Details
Material PE, LDPE, HDPE Name Outdoor Fiber Optic Cable
Length 2km~5km Each Roll Cable Type GYTA
Fiber Single Mode G652D Cores 2 Cores To 96 Cores
Color Black Diameter 9.0mm
Part Number GYTA-xA1 Manufacturer Kocent Optec Limited
Origin Guangdong, China
Leave a Message
Product Description

72F SMF 9/125 G657 72fibers GYTA Outdoor Fiber Optic Cable Loose Tube Armored For Aerial, Duct, Direct Burial, Pipeline

1. What is GYTA fiber optic cable?

  • A SMF 9/125 G657 72fibers GYTA Outdoor Fiber Optic Cable is an outdoor armored fiber optic cable that uses bend-insensitive G657A single-mode fibers inside a Aluminum Tape and PE outer sheath.
  • It is designed for outdoor duct, direct burial, pipeline and aerial installations.
  • It is used in long-distance telecommunications, local area networks (LAN), and backbone inter-building connections requiring moisture and crush resistance
  • The cable capacity upto 288 fibers.
  • The name GYTA uses a standard industry code that describes how the cable is built:
GY: Outdoor communications cable (general use for duct, underground, pipeline).
TA: Aluminum-polyethylene tape (APL) armored with a PE outer sheath, offering moisture resistance and crush protection.
Loose Tube Design: Fibers sit inside gel-filled plastic tubes twisted around a central metallic strength member to protect against water and stress.
  • Key feature:
- SMF G657 bend-insensitive fiber.
- Aluminum Armored Protection
- Waterproof Construction
- Central Strength Member
- High Core Capacity
- Outdoor Durability

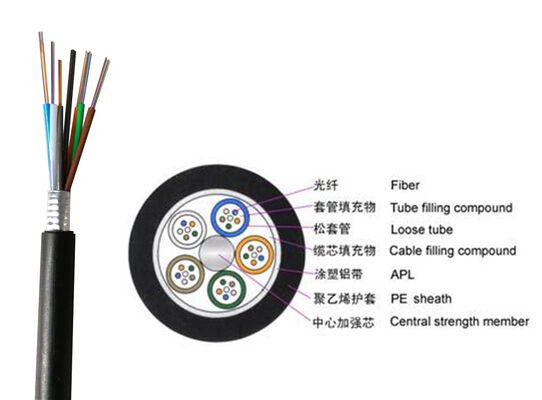

2. GYTA Cable Structure:

Standard metal-strength member with loose tubes stranded around a central core, gel-filled for waterproofing, wrapped in an aluminum-plastic tape (APL) armored, black polyethylene (PE) outer jacket.
72F SMF 9/125 G657 72fibers GYTA Outdoor Fiber Optic Cable Loose Tube Armored For Aerial, Duct, Direct Burial, Pipeline

3. GYTA Cable Application:

- FTTH system
- PON system- Outdoor to Indoor Transitions
- Duct and Aerial Routes
- High-Density Networks
- CATV
- Local trunk line
- Rural communication

4. Standard

  • Complies with Standard YD/T 1155-2001 as well as IEC 60794-1.

5. Cable Mechanical Characteristic

Cable Type

Fiber Count

Tubes

Fillers

Cable Diameter

mm

Cable Weight kg/km

Tensile Strength

Long/Short Term N

Crush Resistance

Long/Short Term

N/100mm

Bending Radius

Static
/Dynamic

mm

GYTA-2~12

8~12

1

4

9.0±0.5

100

1000/3000

1000/3000

10D/20D

GYTA-14~18

14~18

3

2

9.0±0.5

100

1000/3000

1000/3000

10D/20D

GYTA-20~24

20~24

4

1

9.5±0.5

110

1000/3000

1000/3000

10D/20D

GYTA-26~36

26~36

4

1

9.5±0.5

120

1000/3000

1000/3000

10D/20D

GYTA-38~48

38~48

4

1

10.0±0.5

140

1000/3000

1000/3000

10D/20D

GYTA-50~60

50~60

5

0

10.8±0.5

150

1000/3000

1000/3000

10D/20D

GYTA-62~72

62~72

6

0

11.9±0.5

170

1000/3000

1000/3000

10D/20D

GYTA-74~84

74~84

7

1

12.5±0.5

180

1000/3000

1000/3000

10D/20D

GYTA-86~96

86~96

8

0

13.6±0.5

210

1000/3000

1000/3000

10D/20D

GYTA-98~108

98~108

9

1

14.5±0.5

230

1000/3000

1000/3000

10D/20D

GYTA-110~120

110~120

10

0

14.8±0.5

240

1000/3000

1000/3000

10D/20D

GYTS-122~144

122~132

11

1

15.4±0.5

260

1000/3000

1000/3000

10D/20D

GYTA-146~216

146~216

12

0

19.8±0.5

395

1000/3000

1000/3000

10D/20D

GYTA-218~288

218~288

12

0

20.8±0.5

470

1000/3000

1000/3000

10D/20D

6. Fiber characteristic

Fiber style Unit MM
Condition nm 850/1300
Attenuation dB/km ≤3.0/1.0


----
Dispersion 1550nm Ps/(nm*km) Dispersion

1625nm Ps/(nm*km) 　
Bandwidth 850nm MHZ.KM Bandwidth

1300nm MHZ.KM 　
Zero dispersion wavelength nm ≧ 1295, ≤1320
Zero dispersion slope nm ----
PMD Maximum Individual Fiber
≤0.11
PMD Design Link Value Ps(nm2*km) ----
Fibre cutoff wavelength λc nm ----
Cable cutoff wavelength λcc nm ----
MFD 1310nm um ----

1550nm um ----
Numerical Aperture(NA)
0.200+/-0.015
Step(mean of bidirectional measurement) dB ≤0.10
Irregularities over fiber length and point dB ≤0.10

7. Fiber color

1 2 3 4 5 6
Blue Orange Green Brown Grey White
7 8 9 10 11 12
Red Black Yellow Violet Pink Aqua
