144F GYTA Cable / 144cores Fiber Optic Outdoor Armored Duct Cable Single Mode G652 PE Sheath

  • 144F GYTA Cable / 144cores Fiber Optic Outdoor Armored Duct Cable Single Mode G652 PE Sheath
  • 144F GYTA Cable / 144cores Fiber Optic Outdoor Armored Duct Cable Single Mode G652 PE Sheath
  • 144F GYTA Cable / 144cores Fiber Optic Outdoor Armored Duct Cable Single Mode G652 PE Sheath
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-GYTA-xA1
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details wooden roll, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 10,000km/ month
Product Details
Material PE, LDPE, HDPE Name Outdoor Fiber Optic Cable
Length 2km~5km Each Roll Cable Type GYTA
Fiber Single Mode G652D Cores 2 Cores To 96 Cores
Color Black Diameter 9.0mm
Part Number GYTA-xA1 Manufacturer Kocent Optec Limited
Origin Guangdong, China
Leave a Message
Product Description

144F GYTA Cable / 144cores Fiber Optic Outdoor Armored Duct Cable Single Mode G652 PE Sheath

1. What is GYTA fiber optic cable?

  • A 144F GYTA Cable / 144cores Fiber Optic Outdoor Armored Duct Cable Single Mode G652 PE Sheath is is an outdoor armored fiber optic cable used primarily for long-distance trunk lines, metropolitan area networks (MANs), local area networks (LANs), and aerial or duct installations that come with 144F single mode fiber.
  • It is designed for outdoor duct, direct burial, pipeline and aerial installations.
  • The cable capacity upto 288 fibers.
  • What "GYTA" Means

G: Outdoor communication optical cable (Group)

Y: Loose tube structure

T: Filled with waterproof jelly compound

A: Aluminum-polyethylene laminated tape armoring (APL)

  • Key feature:
- SMF fiber.
- 144F, upto maximum 288F.
- Aluminum Armored Protection.
- Aluminum Armored: Offers good crush resistance and serves as a moisture/vapor barrier.
- Compact Stranded Design: Allows individual fibers to move freely inside jelly-filled tubes, keeping them stress-free during temperature shifts or pulling tension.

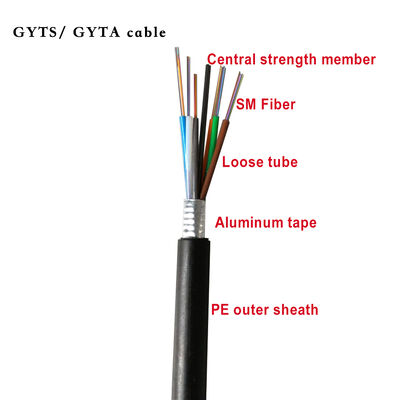

2. GYTA Cable Structure:

- PE outer jacket
- Aluminum tape
- Loose tube
- Colored fiber
- Central strength member
144F GYTA Cable / 144cores Fiber Optic Outdoor Armored Duct Cable Single Mode G652 PE Sheath

3. GYTA Cable Application:

- Duct Installation: The primary laying method for GYTA cables, sliding easily through underground conduits.
- Aerial Laying: Stranded between utility poles using messenger wires or self-supporting setups.
- Long-Haul & Backbone Networks: High fiber counts (like 144F) carry massive volumes of data across cities or regions.
- High-Moisture Environments: The jelly-filled loose tubes and moisture barrier aluminum tape protect internal fibers from water damage and humidity

4. Standard

  • Complies with Standard YD/T 1155-2001 as well as IEC 60794-1.

5. Cable Mechanical Characteristic

Cable Type

Fiber Count

Tubes

Fillers

Cable Diameter

mm

Cable Weight kg/km

Tensile Strength

Long/Short Term N

Crush Resistance

Long/Short Term

N/100mm

Bending Radius

Static
/Dynamic

mm

GYTA-2~12

8~12

1

4

9.0±0.5

100

1000/3000

1000/3000

10D/20D

GYTA-14~18

14~18

3

2

9.0±0.5

100

1000/3000

1000/3000

10D/20D

GYTA-20~24

20~24

4

1

9.5±0.5

110

1000/3000

1000/3000

10D/20D

GYTA-26~36

26~36

4

1

9.5±0.5

120

1000/3000

1000/3000

10D/20D

GYTA-38~48

38~48

4

1

10.0±0.5

140

1000/3000

1000/3000

10D/20D

GYTA-50~60

50~60

5

0

10.8±0.5

150

1000/3000

1000/3000

10D/20D

GYTA-62~72

62~72

6

0

11.9±0.5

170

1000/3000

1000/3000

10D/20D

GYTA-74~84

74~84

7

1

12.5±0.5

180

1000/3000

1000/3000

10D/20D

GYTA-86~96

86~96

8

0

13.6±0.5

210

1000/3000

1000/3000

10D/20D

GYTA-98~108

98~108

9

1

14.5±0.5

230

1000/3000

1000/3000

10D/20D

GYTA-110~120

110~120

10

0

14.8±0.5

240

1000/3000

1000/3000

10D/20D

GYTS-122~144

122~132

11

1

15.4±0.5

260

1000/3000

1000/3000

10D/20D

GYTA-146~216

146~216

12

0

19.8±0.5

395

1000/3000

1000/3000

10D/20D

GYTA-218~288

218~288

12

0

20.8±0.5

470

1000/3000

1000/3000

10D/20D

6. Fiber characteristic

Fiber style Unit MM
Condition nm 850/1300
Attenuation dB/km ≤3.0/1.0


----
Dispersion 1550nm Ps/(nm*km) Dispersion

1625nm Ps/(nm*km) 　
Bandwidth 850nm MHZ.KM Bandwidth

1300nm MHZ.KM 　
Zero dispersion wavelength nm ≧ 1295, ≤1320
Zero dispersion slope nm ----
PMD Maximum Individual Fiber
≤0.11
PMD Design Link Value Ps(nm2*km) ----
Fibre cutoff wavelength λc nm ----
Cable cutoff wavelength λcc nm ----
MFD 1310nm um ----

1550nm um ----
Numerical Aperture(NA)
0.200+/-0.015
Step(mean of bidirectional measurement) dB ≤0.10
Irregularities over fiber length and point dB ≤0.10

7. Fiber color

1 2 3 4 5 6
Blue Orange Green Brown Grey White
7 8 9 10 11 12
Red Black Yellow Violet Pink Aqua

OEM/ODM Service:

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

144F GYTA Cable / 144cores Fiber Optic Outdoor Armored Duct Cable Single Mode G652 PE Sheath

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.
