Rack Type Fibre Optic Cable Splitter PLC 1x64 Corning Optical Fiber Passive Optical Networks
Place of Origin | Guangdong, China |
---|---|
Brand Name | KCO, Kocent Optec Limited |
Certification | ISO9001, RoHS |
Model Number | PLC-RM-1x64-SCA |
Minimum Order Quantity | Negotiation |
Price | Negotiable |
Packaging Details | Carton box, wooden pallet |
Delivery Time | 5~8 days after get payment |
Payment Terms | Western Union, T/T, L/C |
Supply Ability | 20,000 set/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xIL | 16.5 DB | Port | 1 To 64 |
---|---|---|---|
Connector | SC/APC, LC/APC Or Customized | RL | >55dB |
Cable Length | 1.0m, 1.5m Or Customized | Wave Length | 1260~1650nm |
Highlight | Planar Lightwave Circuit Splitter,PLC Optical Splitter |
Rack Type Fibre Optic Cable Splitter PLC Corning Optical Fiber Passive Optical Networks
1x64 fiber optical plc splitter is also called 1*64 fiber optic plc splitter, plc fiber optic splitter, plc fiber splitter, plc optical splitter or fiber optic splitter.
Rack Mount PLC Splitter Specifications:
Fiber length | 1m or custom length | |||||
Connector Type | Custom specified | |||||
Optical Fiber Type | Corning SMF-28e fiber, G657A1 or as customized | |||||
Directivity (dB) Min * | 55 | |||||
Return Loss (dB) Min * | 55 (50) | |||||
Power Handling (mW) | 300 | |||||
Operating Wavelength (nm) | 1260 ~ 1650 | |||||
Operating Temperature(°C) | -40~ +85 | |||||
Storage Temperature(°C) | -40 ~ +85 | |||||
Port Configuration | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
Insertion Loss(dB) Typical | 3.6 | 7.1 | 10.2 | 13.5 | 16.5 | 20.5 |
Insertion Loss (dB) Max | 4.0 | 7.3 | 10.5 | 13.7 | 16.9 | 21.0 |
Loss Uniformity (dB) | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2 |
PDL(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
Temp. Dependent Loss (-40~85 ) (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
Port Configuration | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
Insertion Loss(dB) Typical | 3.8 | 7.4 | 10.8 | 14.2 | 17 | 21 |
Insertion Loss (dB) Max | 4.2 | 7.8 | 11.2 | 14.6 | 17.5 | 21.5 |
Loss Uniformity (dB) | 1 | 1.4 | 1.5 | 2 | 2.5 | 2.5 |
PDL (dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.5 |
Wavelength Dependent Loss(dB) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1 |
Temp. Dependent Loss(-40~+85°C) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 |

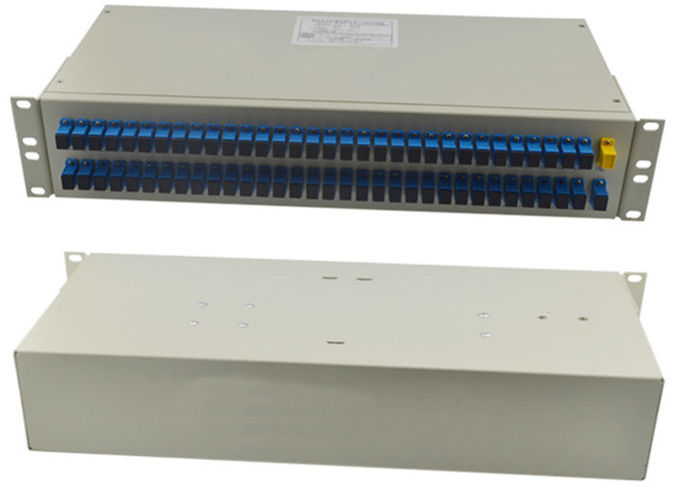

Rack Mount PLC Splitter Product Pictures:
Rackmount PLC Splitter Descriptions:
Fiber optic PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. We provides a various of 1×N and 2×N PLC splitters, including 1x2 to 1x64 and 2x2 to 2x64 1U Rack Mount type fiber PLC splitters. They are all with superior optical performance, high stability and high reliability to meet various application requirements.
The 1U Rack Mount type adopts 1U frame, or customize according to actual requirement. It can be installed in ODF canonically and syncretize with appreance of box/ cabinet body via canonical fiber distribution. 1U Rack Mount Fiber PLC Splitter supports SC, LC, FC & ST connectors for choice.
Rack Mount PLC Splitter Features:
- Configuration Type: 1x64, SC/UPC connector or customized
- Good channel-to-channel Uniformity
- High Polarization Extinction Ratio
- Low Input Polarization Sensitivity, Insertion loss≤13.9dB, PDL≤0.3dB
- Compact design, Custom and Rugged Packaging Available
- Operating temperature : -40°C to +85°C
- Operating bandwidth: 1260~1650nm
- Meet Telcorida GR-1209/ 1221 Qualified
Rack Mount PLC Splitter Applications:
- Optical Signal Distribution
- Data Communications
- LAN and CATV System
- FTTX Deployment
- FTTH Network
- Passive Optical Networks (PON)
- Outside Plant Equipments
- DWDM and CWDM systems
Rack Mount PLC Splitter Features:
- Configuration Type: 1x16, SC/APC connector or customized
- Good channel-to-channel Uniformity
- High Polarization Extinction Ratio
- Low Input Polarization Sensitivity, Insertion loss≤13.9dB, PDL≤0.3dB
- Compact design, Custom and Rugged Packaging Available
- Operating temperature : -40°C to +85°C
- Operating bandwidth: 1260~1650nm
- Meet Telcorida GR-1209/ 1221 Qualified
