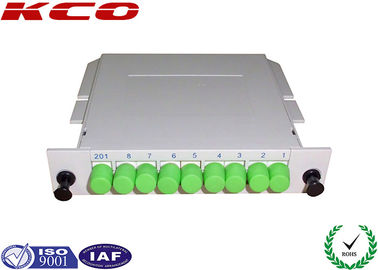

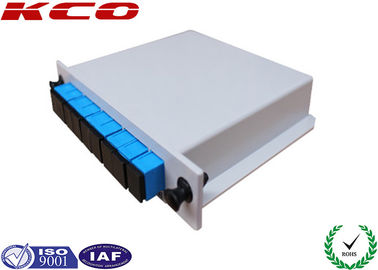

Planar Lightwave Circuit 1:8 PLC Optical Splitter FC APC Adapter , Single Mode Fiber Splitter 1x8

  • Planar Lightwave Circuit 1:8 PLC Optical Splitter FC APC Adapter , Single Mode Fiber Splitter 1x8
  • Planar Lightwave Circuit 1:8 PLC Optical Splitter FC APC Adapter , Single Mode Fiber Splitter 1x8
  • Planar Lightwave Circuit 1:8 PLC Optical Splitter FC APC Adapter , Single Mode Fiber Splitter 1x8
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number PLC-LGX-1x8-FCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
PDL <0.2dB IL 10.8dB
Fiber Type Single Mode G657A1 Adapter SC/UPC, FC/APC
Directivity 55dB RL >55dB
Highlight

Planar Lightwave Circuit Splitter

,

PLC Optical Splitter
Leave a Message
Product Description
Planar Lightwave Circuit 1:8 PLC Optical Splitter FC APC Adapter
Single Mode Fiber Splitter 1x8 with FC/APC connectors for reliable optical signal distribution.
Quick Information
  • Type: LGX cassette module
  • Port Configuration: 1x8
  • Connector: SC/UPC, FC/APC
  • Adapter: SC/UPC, FC/APC
  • Cable length: 1.0m
  • Cable Diameter: 0.9mm
  • Label: Customized options available
Applications
  • Fiber to The Point (FTTX)
  • Fiber to The Home (FTTH)
  • Passive Optical Networks (PON)
  • Gigabit Passive Optical Networks (GPON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment
Key Features
  • Low insertion loss
  • Low Polarization Dependent Loss
  • Excellent Environmental Stability
  • Excellent Mechanical Stability
  • Compliant with Telcordia GR-1221 and GR-1209 standards
Product Description
The Planar Lightwave Circuit (PLC) splitter is an optical power management device fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
The standard LGX metal box housing provides a plug-and-play integration method that eliminates installation risks. This design removes the need for field splicing machines and specialized personnel during deployment.
Product Image
Planar Lightwave Circuit 1:8 PLC Optical Splitter FC APC Adapter , Single Mode Fiber Splitter 1x8 0
Technical Specifications
Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min 55
Return Loss (dB) Min 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Performance Specifications
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85°C) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
OEM/ODM Services
We offer comprehensive OEM and ODM services. Custom branding options available for cables, packaging, labels, and other components to display your company logo.
Packaging & Shipping
Standard export packaging includes carton boxes, wooden boxes, and wooden pallets.
Shipping options:
  • International express services (UPS, TNT, DHL, etc.)
  • International air freight
  • Sea freight
