FTTH GPON 1:16 Fiber Optic Splitter 1X16 Single Mode Cable LGX Cassette

  • FTTH GPON 1:16 Fiber Optic Splitter 1X16 Single Mode Cable LGX Cassette
  • FTTH GPON 1:16 Fiber Optic Splitter 1X16 Single Mode Cable LGX Cassette
  • FTTH GPON 1:16 Fiber Optic Splitter 1X16 Single Mode Cable LGX Cassette
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number PLC-LGX-1x16-SCU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
RL >55dB IL 13.5dB
Fiber Type Single Mode G657A1 Corning Fiber Or Customized Adapter SC/UPC Or Customized
Directivity 55dB PDL 0.3dB
Highlight

Planar Lightwave Circuit Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description
FTTH GPON 1:16 Fiber Optic Splitter 1X16 Single Mode Cable LGX Cassette
FTTH GPON Fiber Optic PLC Splitter 1X16 Single Mode Cable LGX Cassette
Fiber Optic PLC Splitter Overview
Fiber optic Planar Lightwave Circuit (PLC) splitter is an optical power management device fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
The standard LGX metal box housing provides a plug-and-play method for network integration, eliminating installation risks. It removes the need for field splicing machines and specialized personnel for deployment.
This 1x16 LGX cassette module fiber optic PLC splitter is also known as 1*16 LGX module optical fiber PLC splitter, PLC fiber optic splitter, PLC optical fiber splitter, fiber optical splitter, PLC fiber splitter, and PLC optical splitter.
Quick Specifications
  • Type: LGX cassette module
  • Port Configuration: 1x16, 1*16
  • Connector: SC/UPC
  • Adapter: SC/UPC
  • Cable length: 1.0m
  • Cable Diameter: 0.9mm
  • Label: Customized
  • Fiber type: Single mode G657A fiber or customized
Applications
  • Fiber to The Point (FTTX)
  • Fiber to The Home (FTTH)
  • Passive Optical Networks (PON)
  • Gigabit Passive Optical Networks (GPON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment
Key Features
  • Low insertion loss
  • Low Polarization Dependent Loss
  • Excellent Environmental Stability
  • Excellent Mechanical Stability
  • Meet Telcordia GR-1221 and GR-1209 standards

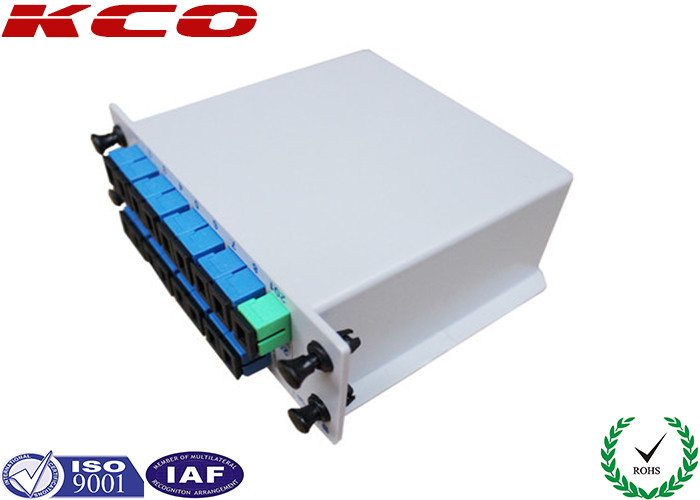

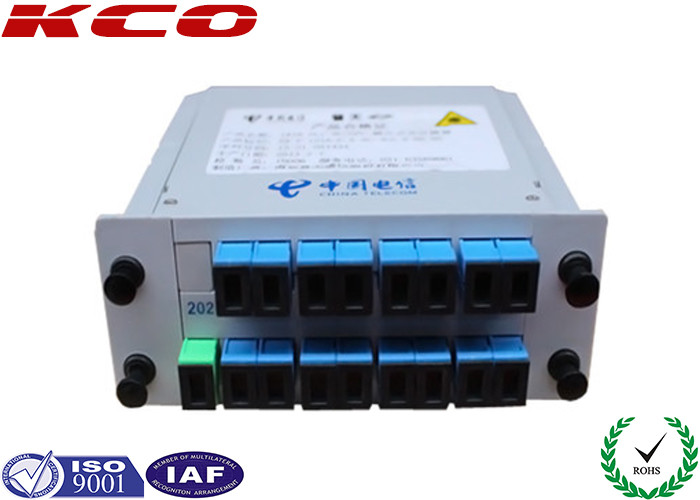

Product Image
FTTH GPON 1:16 Fiber Optic Splitter 1X16 Single Mode Cable LGX Cassette 0
Technical Specifications
Parameter Specification
Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Performance Specifications
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
OEM/ODM Services
We offer comprehensive OEM and ODM services. You can display your own brand LOGO on cables, packaging bags, labels, or any other location as required.
Packing & Shipping
Packing: Standard export packing including carton boxes, wooden boxes, and wooden pallets.
Shipping Options:
  • International express services (UPS, TNT, DHL, etc.)
  • International air freight (CA, AA, EA, etc.)
  • Sea freight
