SC Adapter Fiber Optic Splitter 1X32 , Fiber Optical Splitter 1:32 GPON

  • SC Adapter Fiber Optic Splitter 1X32 , Fiber Optical Splitter 1:32 GPON
  • SC Adapter Fiber Optic Splitter 1X32 , Fiber Optical Splitter 1:32 GPON
  • SC Adapter Fiber Optic Splitter 1X32 , Fiber Optical Splitter 1:32 GPON
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number PLC-LGX-1x32-SCU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector SC/UPC Or Customized IL 16.5dB
RL >55dB Directivity 55dB
PDL 0.3dB Cable Length 1.0m, 1.5m Or Customized
Highlight

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description
SC Adapter Fiber Optic PLC Splitter 1x32
Fiber Optical Splitter GPON with LGX cassette module design for reliable optical signal distribution.
Product Overview
This 1x32 LGX cassette module fiber optic PLC splitter is designed for efficient optical power management in various network applications. Also known as 1*32 LGX module optical fiber PLC splitter, it provides reliable signal distribution from central offices to multiple premise locations.
Applications
  • Fiber to The Point (FTTX)
  • Fiber to The Home (FTTH)
  • Passive Optical Networks (PON)
  • Gigabit Passive Optical Networks (GPON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment
Quick Specifications
Type: LGX cassette module
Port Configuration: 1x32, 1*32
Connector: SC/UPC
Adapter: SC/UPC
Cable length: 1.0m
Cable Diameter: 0.9mm
Label: Customized
Fiber type: Single mode G657A fiber or customized
Product Description
Fiber optic Planar Lightwave Circuit (PLC) splitter is an optical power management device fabricated using silica optical waveguide technology. The standard LGX metal box housing provides plug-and-play integration, eliminating installation risks and the need for field splicing machines or specialized personnel.
Key Features
  • Low insertion loss
  • Low Polarization Dependent Loss
  • Excellent Environmental Stability
  • Excellent Mechanical Stability
  • Compliant with Telcordia GR-1221 and GR-1209 standards
Product Image

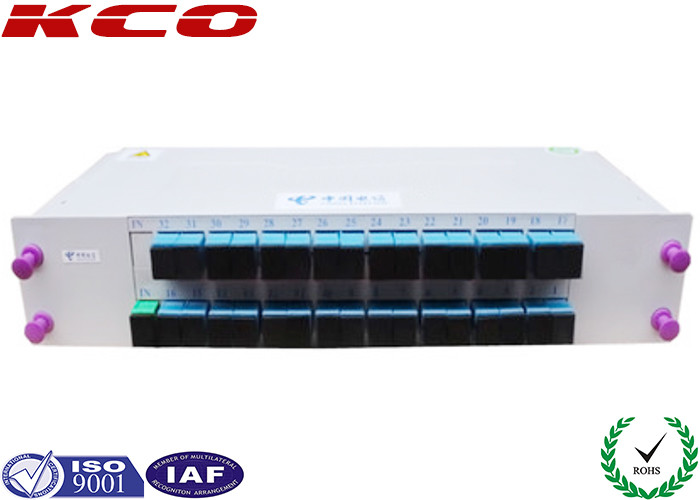

SC Adapter Fiber Optic Splitter 1X32 , Fiber Optical Splitter 1:32 GPON 0
Technical Specifications
Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Performance Specifications by Port Configuration
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Packaging

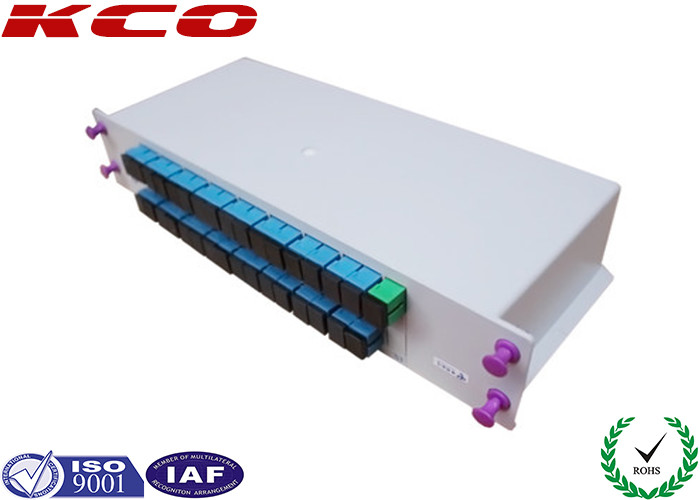

SC Adapter Fiber Optic Splitter 1X32 , Fiber Optical Splitter 1:32 GPON 1
Customization & Services
LGX Cassette 1x32 fiber optic PLC splitter OEM and ODM services are available. Kocent Optec Limited is a leading manufacturer and supplier with extensive experience in high-quality fiber optic products. We offer wholesale options for customized LGX Cassette 1x32 fiber optic PLC splitters from stock, with free samples available upon request.
