1:64 LGX Module G657A Fiber Optic Splitter FTTH GPON PON 1x64 Port

  • 1:64 LGX Module G657A Fiber Optic Splitter FTTH GPON PON 1x64 Port
  • 1:64 LGX Module G657A Fiber Optic Splitter FTTH GPON PON 1x64 Port
  • 1:64 LGX Module G657A Fiber Optic Splitter FTTH GPON PON 1x64 Port
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number PLC-LGX-1x64-SCU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fiber Type Single Mode G657A1 IL 20.5dB
RL >55dB Directivity 55dB
PDL 0.3dB Cable Diameter 0.9mm, 1.6mm, Customized
Highlight

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description
1:64 LGX Module G657A Fiber Optic Splitter FTTH GPON PON 1x64 Port
LGX Module G657A Fiber Optic PLC Splitter FTTH GPON PON 1 x 64 Port
Fiber Optic PLC Splitter Features
  • Low insertion loss
  • Low Polarization Dependent Loss
  • Excellent Environmental Stability
  • Excellent Mechanical Stability
  • Meet Telcordia GR-1221 and GR-1209 standards
Quick Specifications
Type: LGX cassette module
Port Configuration: 1x64, 1*64
Connector: SC/UPC
Adapter: SC/UPC
Cable length: 1.0m
Cable Diameter: 0.9mm, 2.0mm, 3.0mm, 1.6mm, etc
Label: Customized
Fiber type: Single mode G657A fiber or customized
Applications
  • Fiber to The Point (FTTX)
  • Fiber to The Home (FTTH)
  • Passive Optical Networks (PON)
  • Gigabit Passive Optical Networks (GPON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment
Product Description
Fiber optic Planar Lightwave Circuit (PLC) splitter is an optical power management device fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
The standard LGX metal box housing provides a plug-and-play method for network integration, eliminating installation risks. This solution removes the need for field splicing machines and specialized personnel during deployment.
Also known as: 1*64 LGX module optical fiber PLC splitter, PLC fiber optic splitter, PLC optical fiber splitter, fiber optical splitter, PLC fiber splitter, PLC optical splitter.

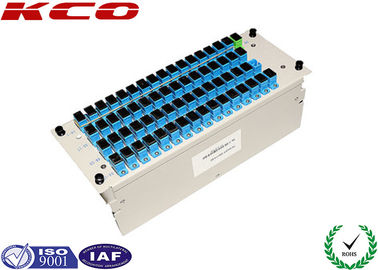

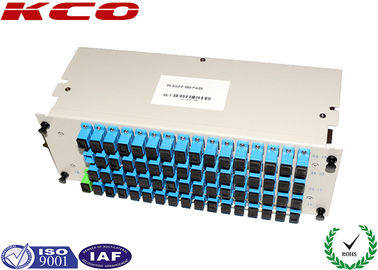

Product Image
1:64 LGX Module G657A Fiber Optic Splitter FTTH GPON PON 1x64 Port 0
Technical Specifications
Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Performance Specifications Table
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Packing
1:64 LGX Module G657A Fiber Optic Splitter FTTH GPON PON 1x64 Port 1
Custom Manufacturing Services
LGX Cassette 1x64 fiber optic PLC splitter OEM and ODM service is always available!
Kocent Optec Limited is one of the largest and best LGX Cassette 1x64 fiber optic PLC splitter manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized LGX Cassette 1x64 fiber optic PLC splitter in stock with our factory. Also, free samples are available if necessary.
